smooth edge design
06
07
PRODUC TS
PRO JEC T

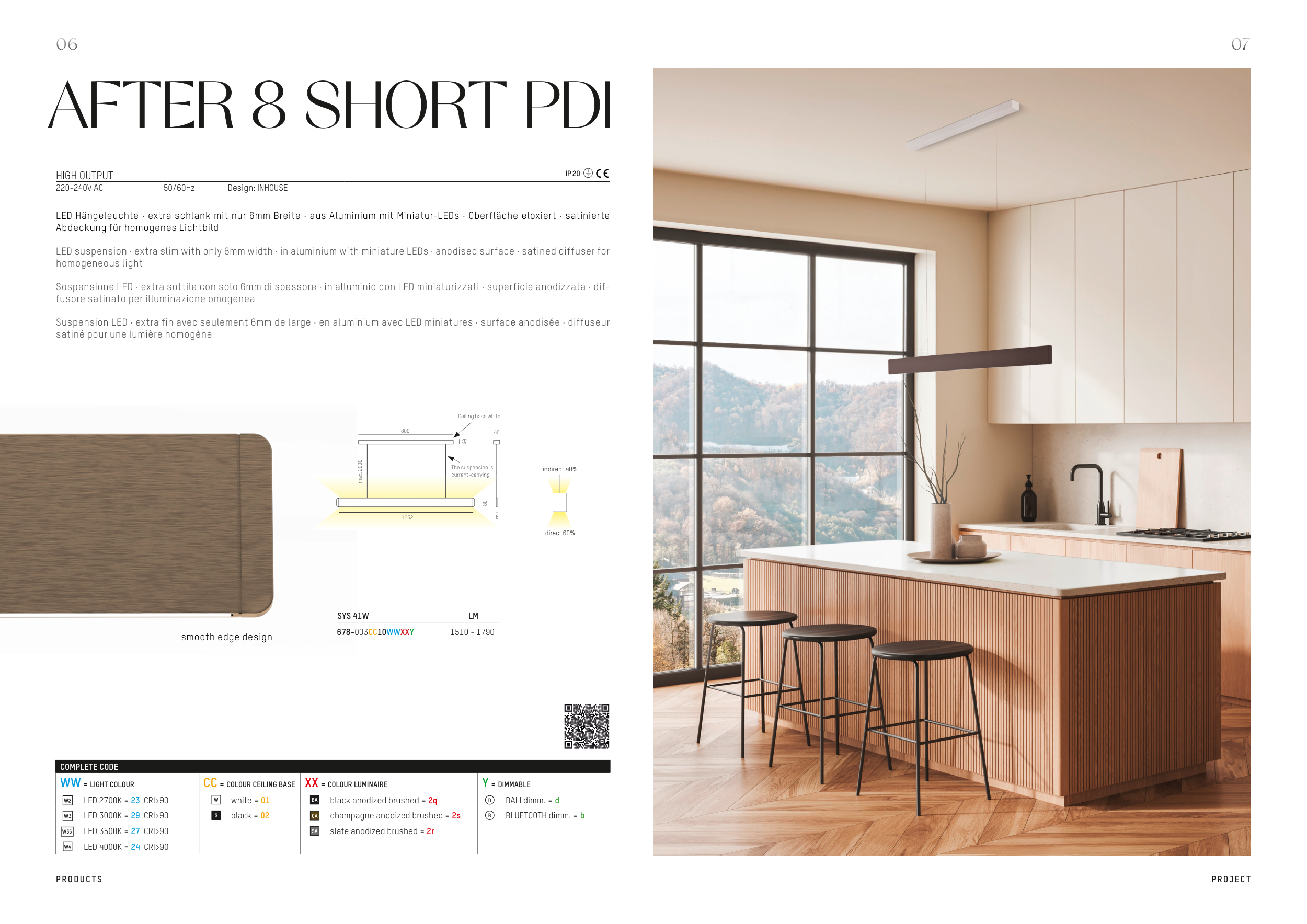

AFTER 8 SHORT PDI
AFTER 8 SHORT PDI
HIGH OUTPUT
220-240V AC
50/60Hz Design: INHOUSE
IP 20
6
800
Ceiling base white
1232
80
34
40
max. 2000
The suspension is
current-carrying
LED Hängeleuchte · extra schlank mit nur 6mm Breite · aus Aluminium mit Miniatur-LEDs · Oberfläche eloxiert · satinierte
Abdeckung für homogenes Lichtbild
LED suspension · extra slim with only 6mm width · in aluminium with miniature LEDs · anodised surface · satined diffuser for
homogeneous light
Sospensione LED · extra sottile con solo 6mm di spessore · in alluminio con LED miniaturizzati · superficie anodizzata · dif-
fusore satinato per illuminazione omogenea
Suspension LED · extra fin avec seulement 6mm de large · en aluminium avec LED miniatures · surface anodisée · diffuseur
satiné pour une lumière homogène
direct 60%
indirect 40%
COMPLETE CODE
WW = LIGHT COLOUR
CC = COLOUR CEILING BASE XX = COLOUR LUMINAIRE
Y = DIMMABLE
LED 2700K = 23 CRI>90
white = 01
black anodized brushed = 2q
D
DALI dimm. = d
LED 3000K = 29 CRI>90
black = 02
champagne anodized brushed = 2s
B
BLUETOOTH dimm. = b
LED 3500K = 27 CRI>90
slate anodized brushed = 2r
LED 4000K = 24 CRI>90
BA
SA
CA
W
S
W35
SYS 41W
LM
678-003CC10WWXXY
1510 - 1790
