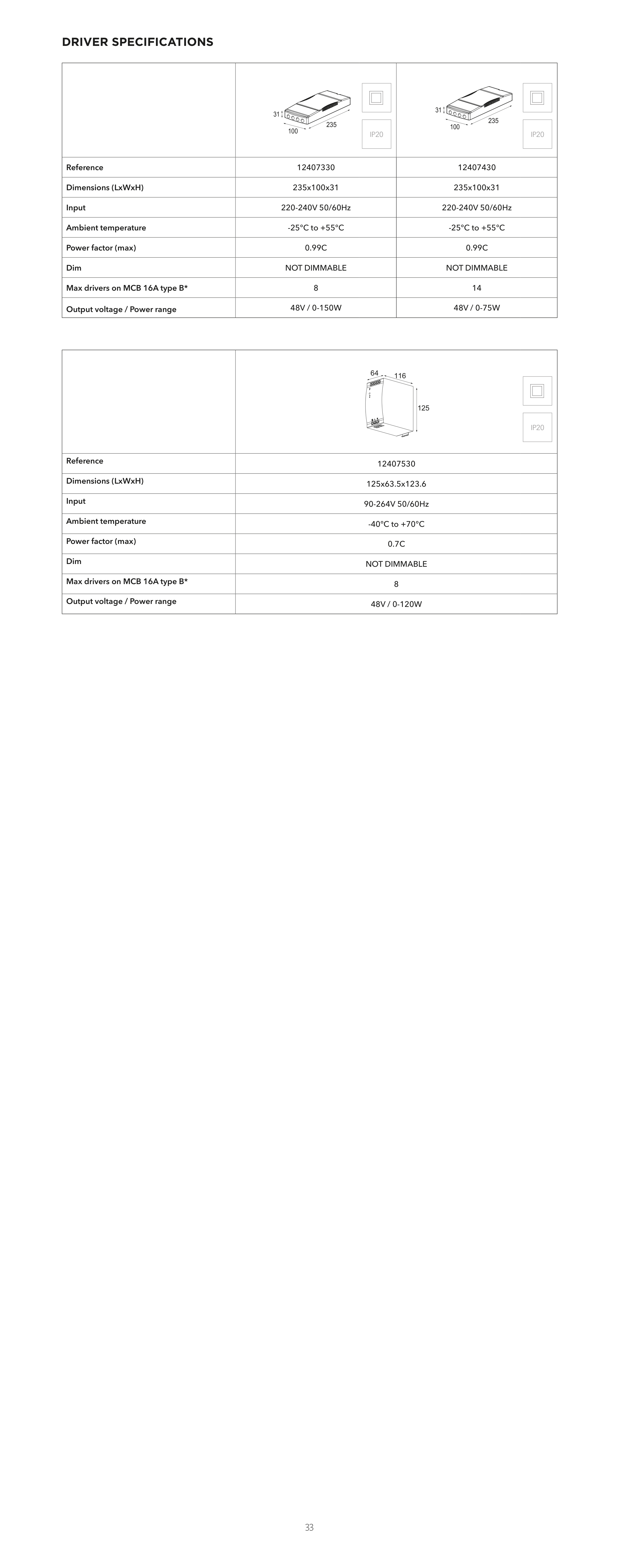

DRIVER SPECIFICATIONS
235
100
31
X
IP20
235
100
31
X
IP20
Reference
12407330
12407430
Dimensions (LxWxH)
235x100x31
235x100x31
Input
220-240V 50/60Hz
220-240V 50/60Hz
Ambient temperature
-25°C to +55°C
-25°C to +55°C
Power factor (max)
0.99C
0.99C
Dim
NOT DIMMABLE
NOT DIMMABLE
Max drivers on MCB 16A type B*
8
14
Output voltage / Power range
48V / 0-150W
48V / 0-75W
116
125
64
X
IP20
Reference
12407530
Dimensions (LxWxH)
125x63.5x123.6
Input
90-264V 50/60Hz
Ambient temperature
-40°C to +70°C
Power factor (max)
0.7C
Dim
NOT DIMMABLE
Max drivers on MCB 16A type B*
8
Output voltage / Power range
48V / 0-120W
33
