IP20
* on demand
** cable on measure
650°
LIGHTING
DATA
DIM
PATENT
PENDING
Finishes
Lampada in metallo/
Metal structure
Luce diretta/
Direct light
Biemissione*/
Uplight and downlight*
Body colours

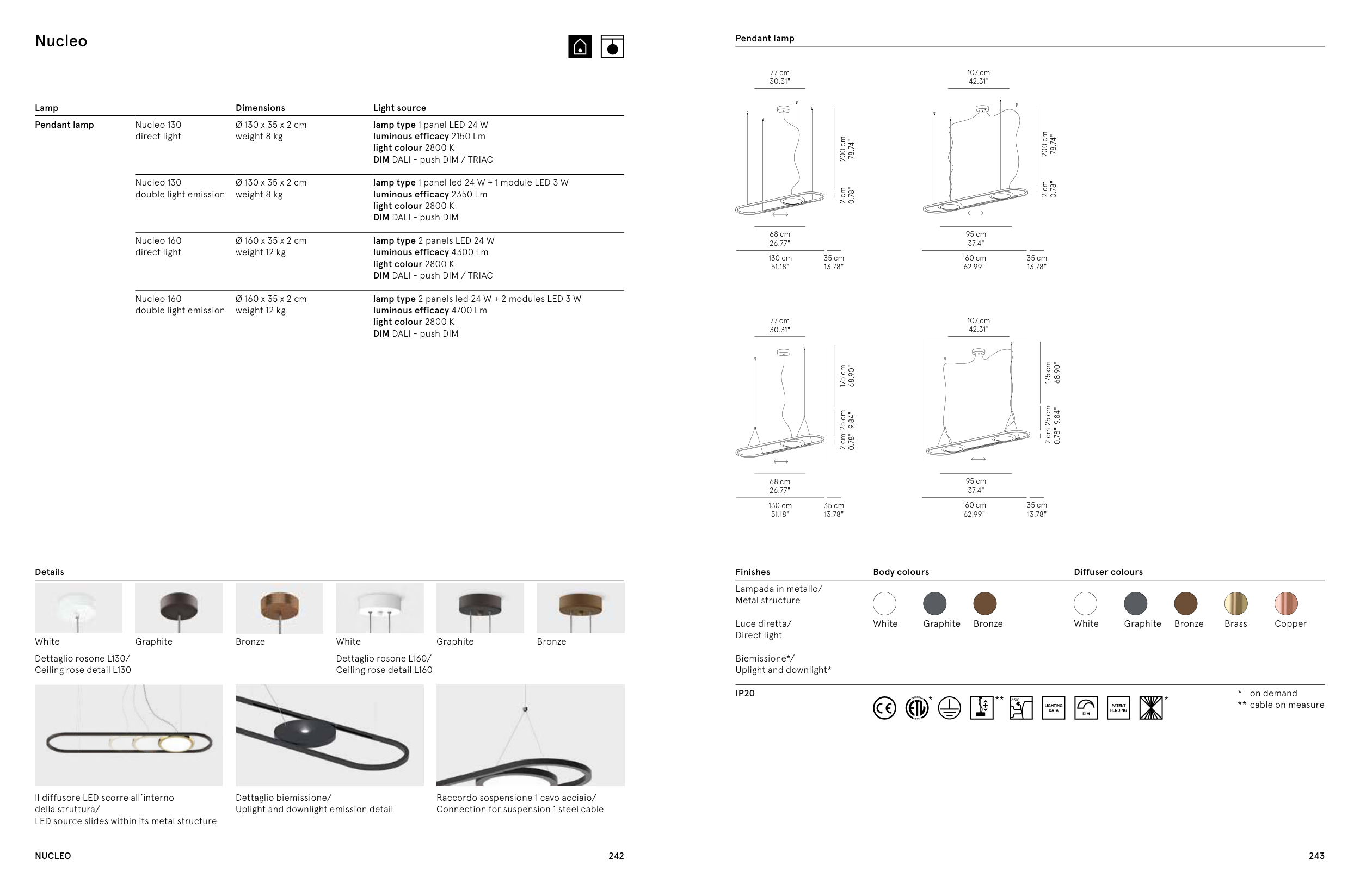

Pendant lamp
Nucleo 130
Ø 130 x 35 x 2 cm
lamp type 1 panel LED 24 W
direct light
weight 8 kg
luminous efficacy 2150 Lm
light colour 2800 K
DIM DALI - push DIM / TRIAC
Nucleo 130
Ø 130 x 35 x 2 cm
lamp type 1 panel led 24 W + 1 module LED 3 W
double light emission
weight 8 kg
luminous efficacy 2350 Lm
light colour 2800 K
DIM DALI - push DIM
Nucleo 160
Ø 160 x 35 x 2 cm
lamp type 2 panels LED 24 W
direct light
weight 12 kg
luminous efficacy 4300 Lm
light colour 2800 K
DIM DALI - push DIM / TRIAC
Nucleo 160
Ø 160 x 35 x 2 cm
lamp type 2 panels led 24 W + 2 modules LED 3 W
double light emission
weight 12 kg
luminous efficacy 4700 Lm
light colour 2800 K
DIM DALI - push DIM
Details
Dettaglio rosone L130/
Ceiling rose detail L130
Dettaglio rosone L160/
Ceiling rose detail L160
Graphite
Graphite
White
White
68 cm
26.77”
130 cm
51.18”
35 cm
13.78”
200 cm
78.74”
2 cm
0.78”
30.31”
77 cm
77 cm
30.31"
68 cm
26.77"
130 cm
51.18"
35 cm
13.78"
2 cm
0.78"
25 cm
9.84"
175 cm
68.90"
200 cm
78.74”
160 cm
62.99”
95 cm
37.4”
35 cm
13.78”
2 cm
0.78”
42.13”
107 cm
107 cm
42.13"
95 cm
37.4"
160 cm
62.99"
35 cm
13.78"
2 cm
0.78"
25 cm
9.84"
175 cm
68.90"
68 cm
26.77"
68 cm
26.77"
95 cm
37.4"
95 cm
37.4"
130 cm
51.18"
130 cm
51.18"
160 cm
62.99"
160 cm
62.99"
35 cm
13.78"
35 cm
13.78"
35 cm
13.78"
35 cm
13.78"
77 cm
30.31"
77 cm
30.31"
107 cm
42.31"
107 cm
42.31"
200 cm
78.74"
175 cm
68.90"
175 cm
68.90"
200 cm
78.74"
2 cm
0.78"
2 cm
0.78"
2 cm
0.78"
2 cm
0.78"
White
White
Graphite
Graphite
Diffuser colours
Copper
Brass
**
*
*
Nucleo
Pendant lamp
Dettaglio biemissione/
Uplight and downlight emission detail
Il diffusore LED scorre all’interno
della struttura/
LED source slides within its metal structure
Raccordo sospensione 1 cavo acciaio/
Connection for suspension 1 steel cable
Light source
Dimensions
Lamp
Bronze
Bronze
Bronze
25 cm
9.84"
25 cm
9.84"
Bronze
242
243
NUCLEO
