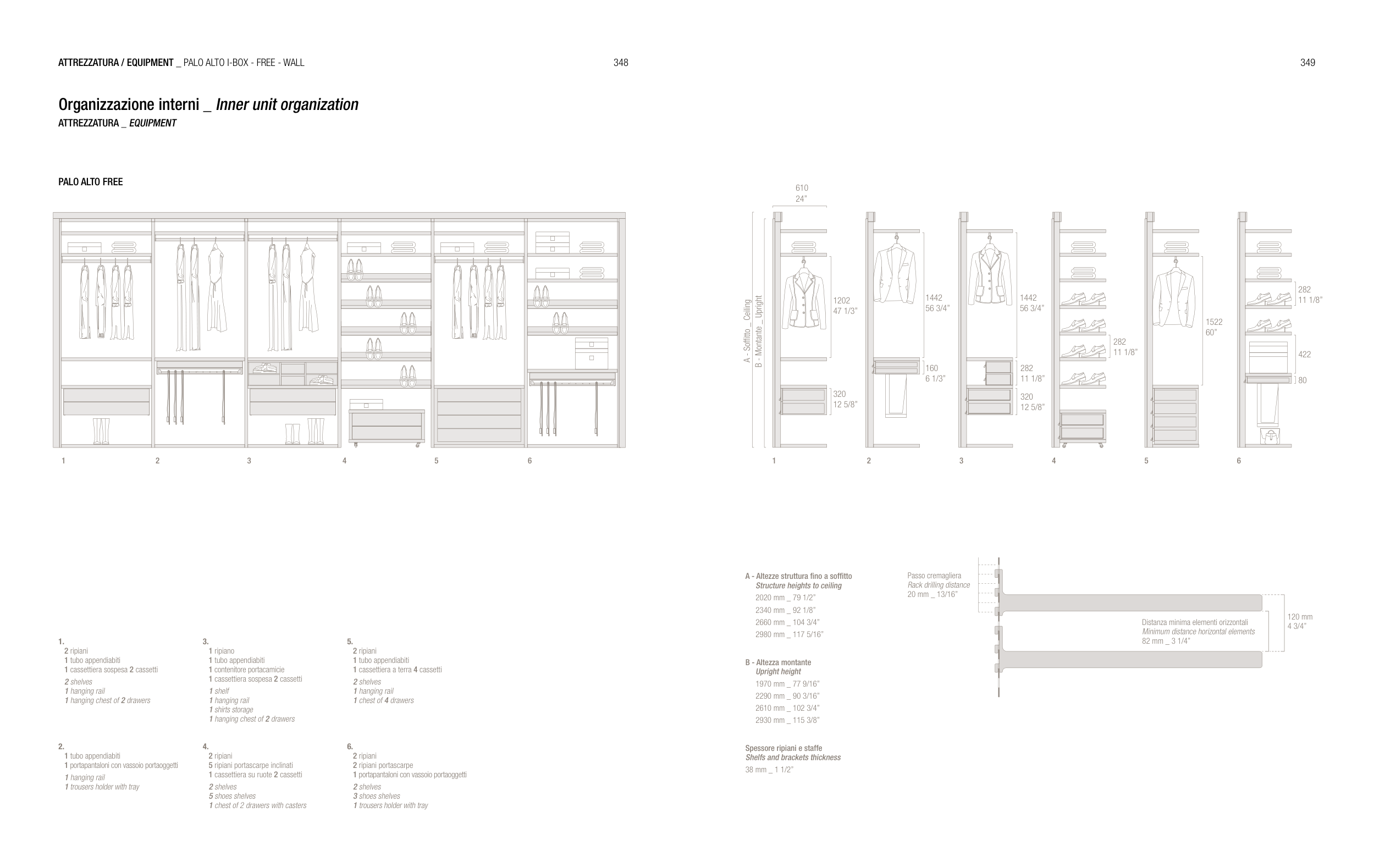

Organizzazione interni _ Inner unit organization
ATTREZZATURA _ EQUIPMENT
PALO ALTO FREE
1
2
3
4
5
6
1.
2 ripiani
1 tubo appendiabiti
1 cassettiera sospesa 2 cassetti
2 shelves
1 hanging rail
1 hanging chest of 2 drawers
2.
1 tubo appendiabiti
1 portapantaloni con vassoio portaoggetti
1 hanging rail
1 trousers holder with tray
3.
1 ripiano
1 tubo appendiabiti
1 contenitore portacamicie
1 cassettiera sospesa 2 cassetti
1 shelf
1 hanging rail
1 shirts storage
1 hanging chest of 2 drawers
4.
2 ripiani
5 ripiani portascarpe inclinati
1 cassettiera su ruote 2 cassetti
2 shelves
5 shoes shelves
1 chest of 2 drawers with casters
5.
2 ripiani
1 tubo appendiabiti
1 cassettiera a terra 4 cassetti
2 shelves
1 hanging rail
1 chest of 4 drawers
6.
2 ripiani
2 ripiani portascarpe
1 portapantaloni con vassoio portaoggetti
2 shelves
3 shoes shelves
1 trousers holder with tray
320
12 5/8”
320
12 5/8”
282
11 1/8”
A - Soffitto _ Ceiling
B - Montante _ Upright
1202
47 1/3”
610
24”
1442
56 3/4”
160
6 1/3”
1442
56 3/4”
282
11 1/8”
282
11 1/8”
1522
60”
422
80
1
2
3
4
5
6
Distanza minima elementi orizzontali
Minimum distance horizontal elements
82 mm _ 3 1/4”
120 mm
4 3/4”
A - Altezze struttura fino a soffitto
Structure heights to ceiling
2020 mm _ 79 1/2”
2340 mm _ 92 1/8”
2660 mm _ 104 3/4”
2980 mm _ 117 5/16”
B - Altezza montante
Upright height
1970 mm _ 77 9/16”
2290 mm _ 90 3/16”
2610 mm _ 102 3/4”
2930 mm _ 115 3/8”
Spessore ripiani e staffe
Shelfs and brackets thickness
38 mm _ 1 1/2”
Passo cremagliera
Rack drilling distance
20 mm _ 13/16”
ATTREZZATURA / EQUIPMENT _ PALO ALTO I-BOX - FREE - WALL
