MasterCool freezer

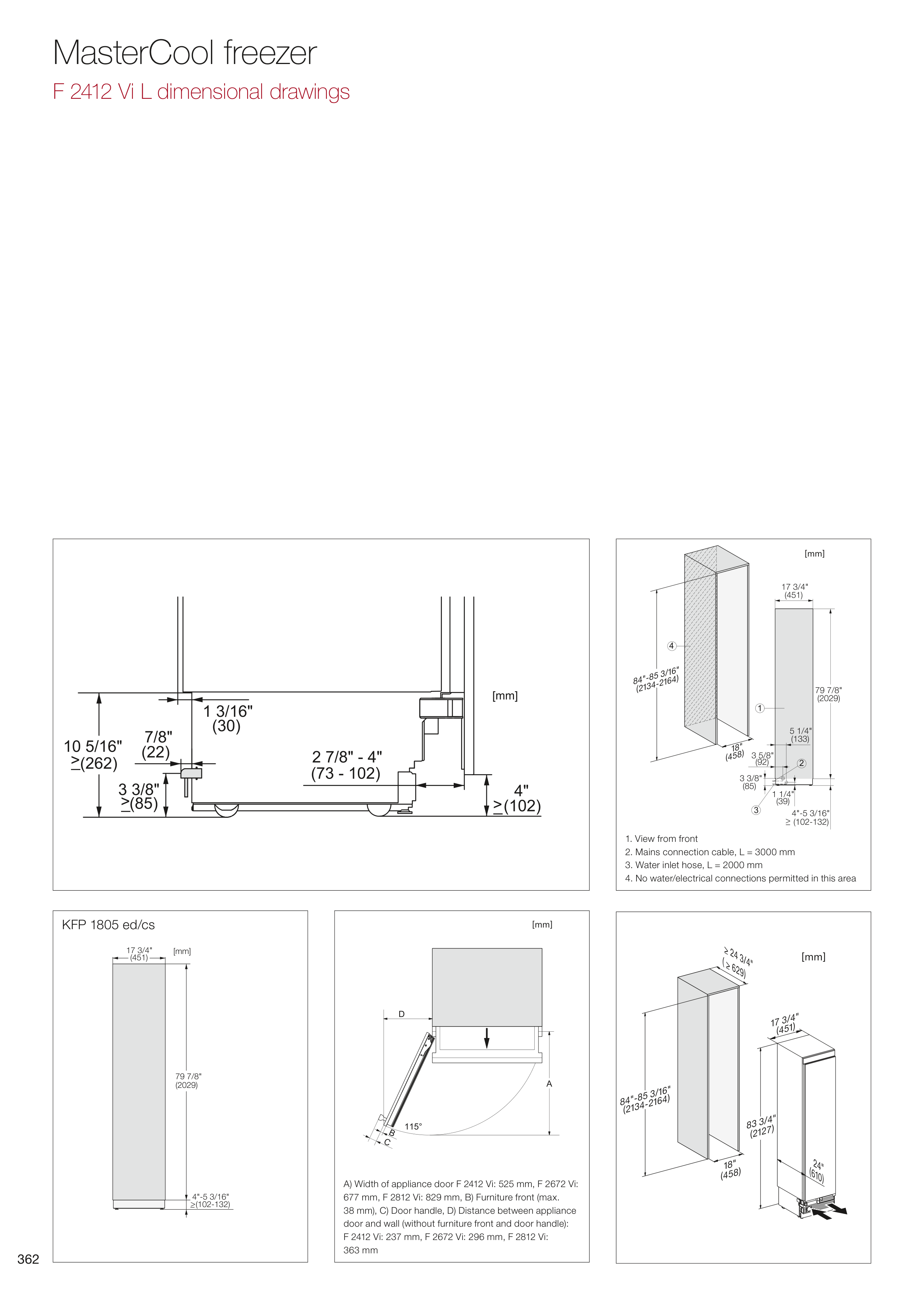

F 2412 Vi L dimensional drawings
KFP 1805 ed/cs
A) Width of appliance door F 2412 Vi: 525 mm, F 2672 Vi:
677 mm, F 2812 Vi: 829 mm, B) Furniture front (max.
38 mm), C) Door handle, D) Distance between appliance
door and wall (without furniture front and door handle):
F 2412 Vi: 237 mm, F 2672 Vi: 296 mm, F 2812 Vi:
363 mm
1. View from front
2. Mains connection cable, L = 3000 mm
3. Water inlet hose, L = 2000 mm
4. No water/electrical connections permitted in this area
