Planning notes

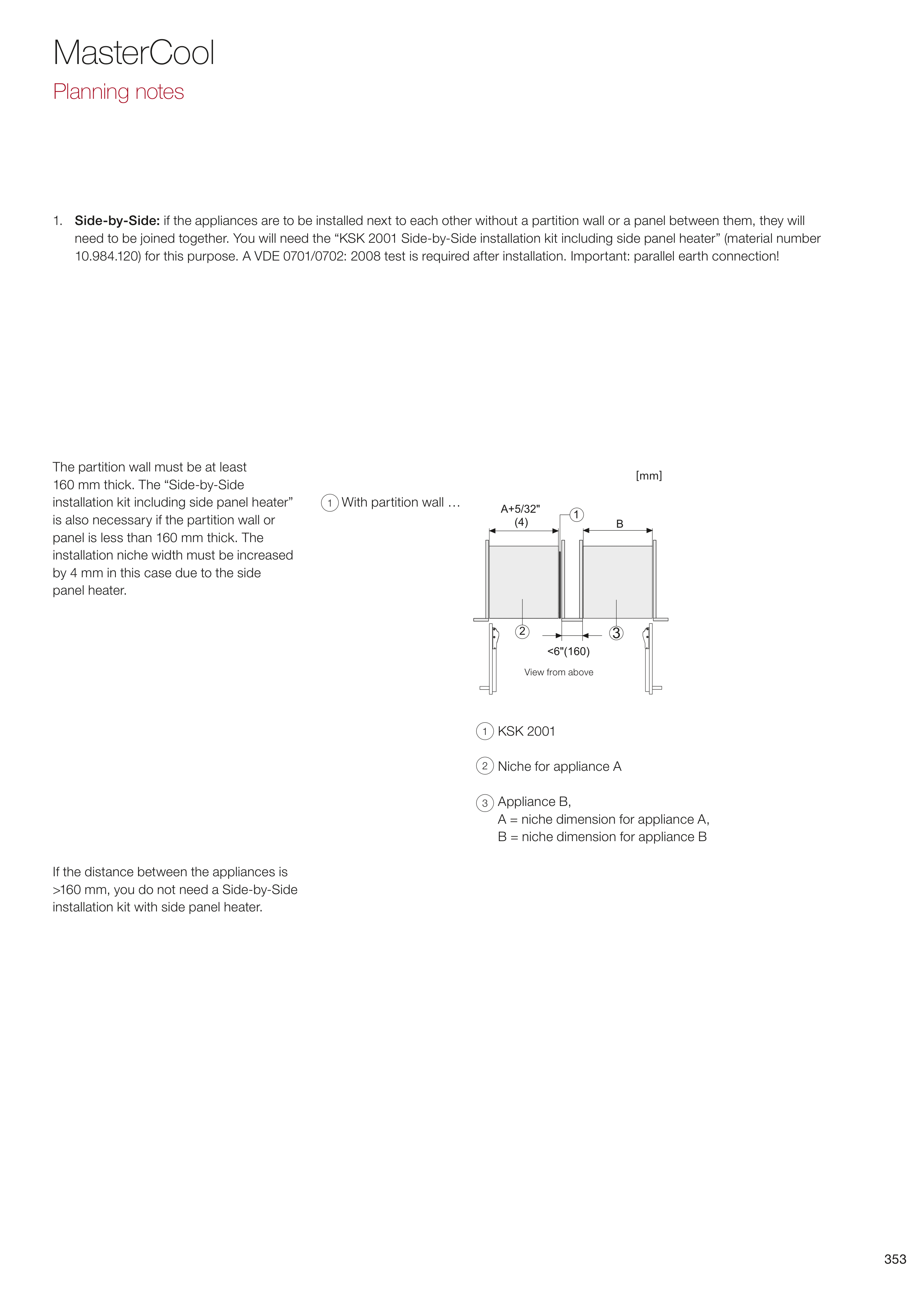

View from above
With partition wall …
1. Side-by-Side: if the appliances are to be installed next to each other without a partition wall or a panel between them, they will
need to be joined together. You will need the “KSK 2001 Side-by-Side installation kit including side panel heater” (material number
10.984.120) for this purpose. A VDE 0701/0702: 2008 test is required after installation. Important: parallel earth connection!
The partition wall must be at least
160 mm thick. The “Side-by-Side
installation kit including side panel heater”
is also necessary if the partition wall or
panel is less than 160 mm thick. The
installation niche width must be increased
by 4 mm in this case due to the side
panel heater.
If the distance between the appliances is
>160 mm, you do not need a Side-by-Side
installation kit with side panel heater.
1
KSK 2001
Niche for appliance A
Appliance B,
A = niche dimension for appliance A,
B = niche dimension for appliance B
1
2
3
