b) Panorama hobs
The DAD 4840 can be combined with panorama hobs including the KM 7684 FL. The advantage of this is that both appliances can be
accommodated in a base unit 60 cm deep. To create the necessary space, the depth of possible drawers is reduced, but up to
37.5 cm is permitted depending on the design of the base unit.
1. Only necessary if flat ducting is laid under the cabinet or
the DUU 600 recirculation box is used.
2. Exhaust duct, diameter 150 mm.

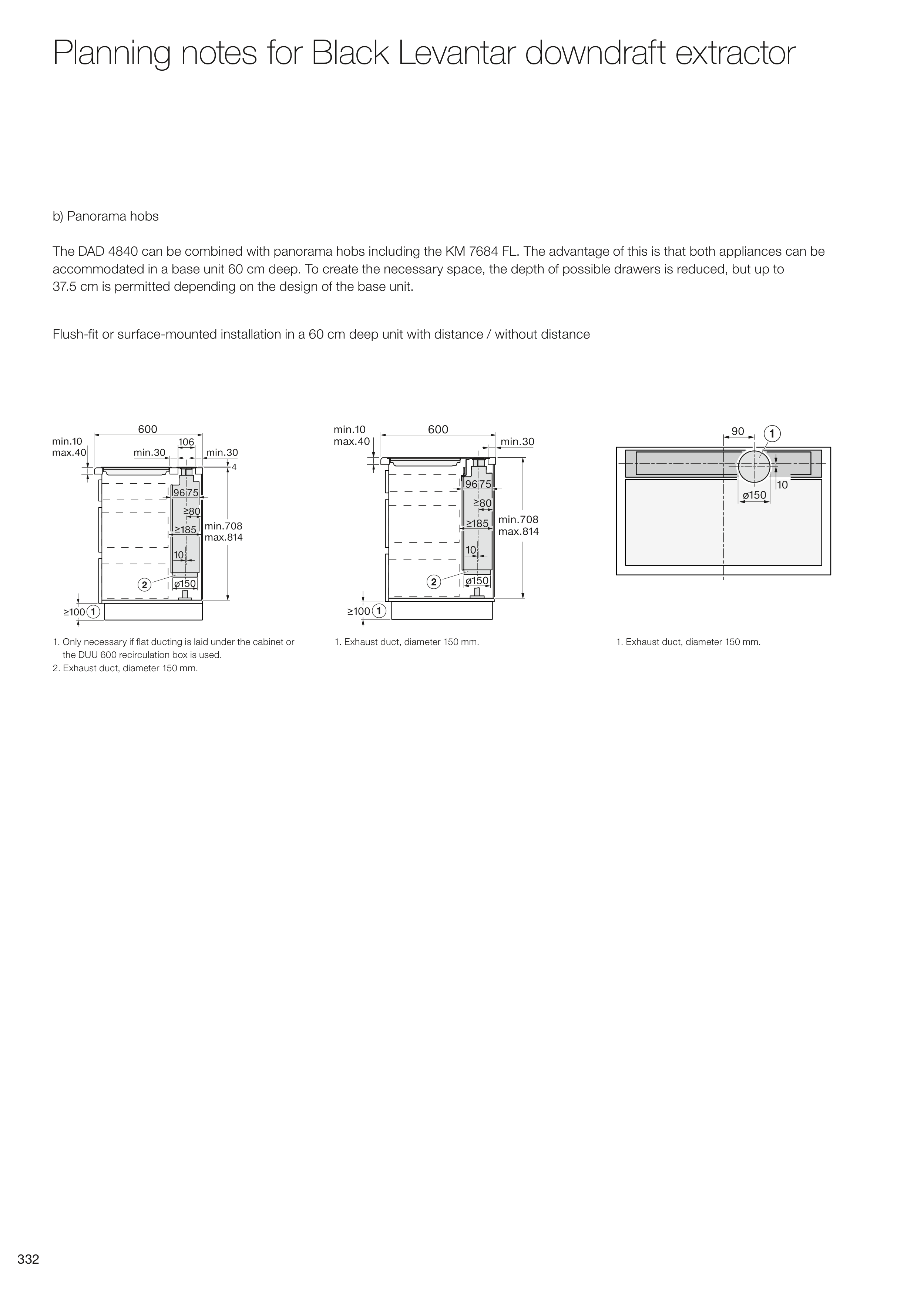

Flush-fit or surface-mounted installation in a 60 cm deep unit with distance / without distance
1. Exhaust duct, diameter 150 mm.
1. Exhaust duct, diameter 150 mm.
Planning notes for Black Levantar downdraft extractor
