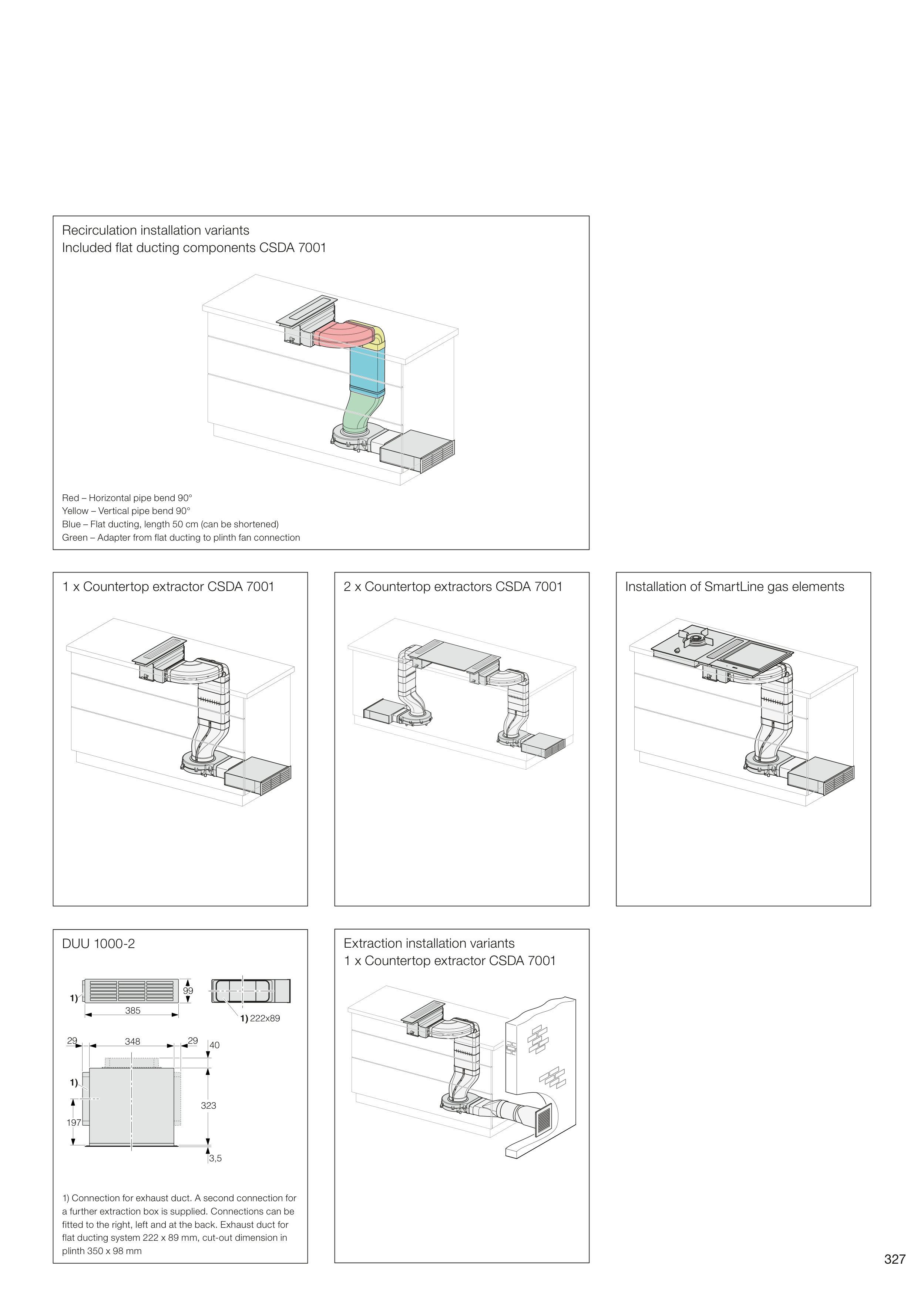

Recirculation installation variants
Included flat ducting components CSDA 7001
Red – Horizontal pipe bend 90°
Yellow – Vertical pipe bend 90°
Blue – Flat ducting, length 50 cm (can be shortened)
Green – Adapter from flat ducting to plinth fan connection
1 x Countertop extractor CSDA 7001
2 x Countertop extractors CSDA 7001
Extraction installation variants
1 x Countertop extractor CSDA 7001
Installation of SmartLine gas elements
DUU 1000-2
1) Connection for exhaust duct. A second connection for
a further extraction box is supplied. Connections can be
fitted to the right, left and at the back. Exhaust duct for
flat ducting system 222 x 89 mm, cut-out dimension in
plinth 350 x 98 mm
