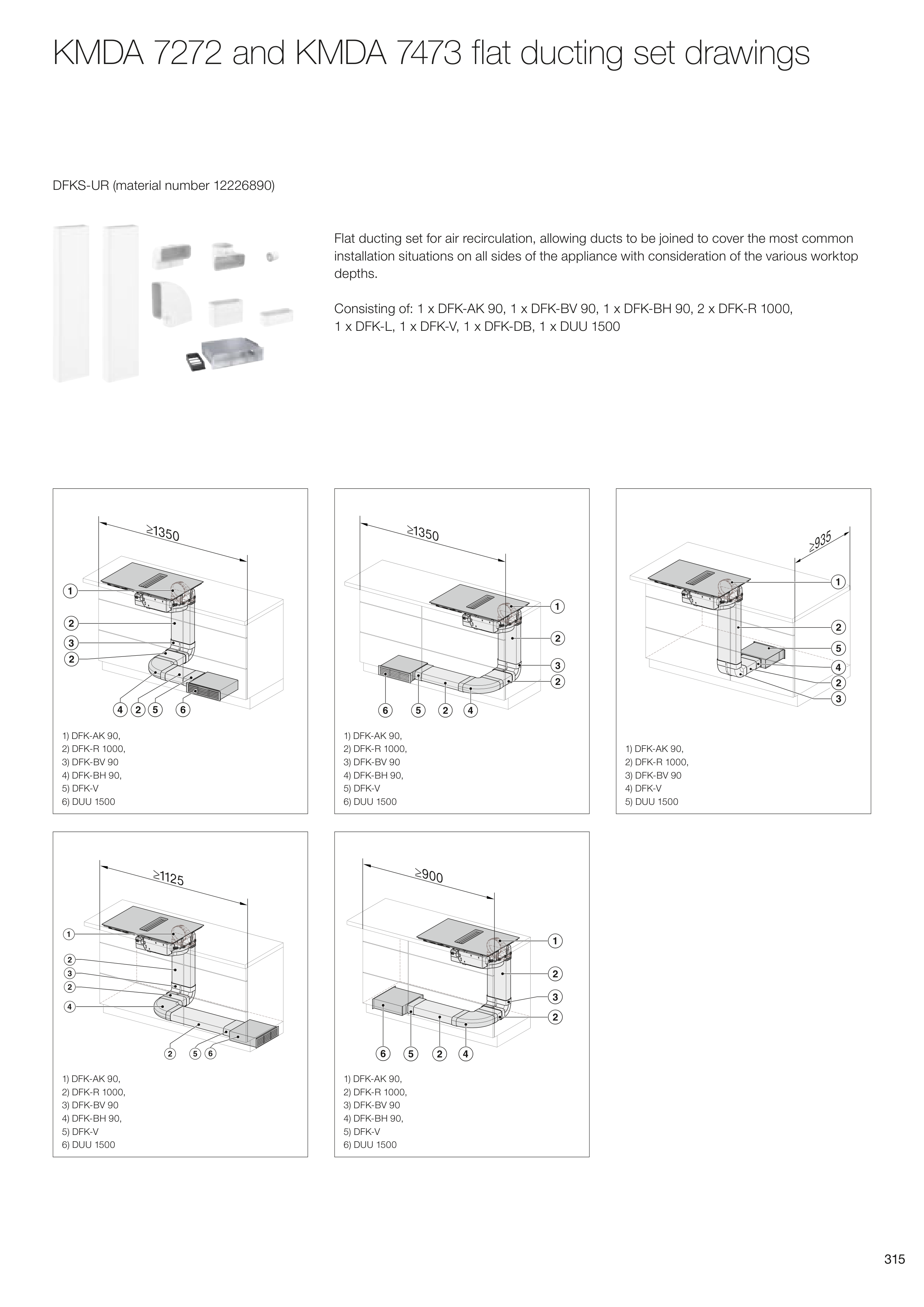

KMDA 7272 and KMDA 7473 flat ducting set drawings
Flat ducting set for air recirculation, allowing ducts to be joined to cover the most common
installation situations on all sides of the appliance with consideration of the various worktop
depths.
Consisting of: 1 x DFK-AK 90, 1 x DFK-BV 90, 1 x DFK-BH 90, 2 x DFK-R 1000,
1 x DFK-L, 1 x DFK-V, 1 x DFK-DB, 1 x DUU 1500
DFKS-UR (material number 12226890)
1) DFK-AK 90,
2) DFK-R 1000,
3) DFK-BV 90
4) DFK-BH 90,
5) DFK-V
6) DUU 1500
1) DFK-AK 90,
2) DFK-R 1000,
3) DFK-BV 90
4) DFK-BH 90,
5) DFK-V
6) DUU 1500
1) DFK-AK 90,
2) DFK-R 1000,
3) DFK-BV 90
4) DFK-BH 90,
5) DFK-V
6) DUU 1500
1) DFK-AK 90,
2) DFK-R 1000,
3) DFK-BV 90
4) DFK-BH 90,
5) DFK-V
6) DUU 1500
1) DFK-AK 90,
2) DFK-R 1000,
3) DFK-BV 90
4) DFK-V
5) DUU 1500
