314
KMDA 7272 FR, KMDA 7473 FR
Frame – Surface-mounted installation
1) The cabinet panel and an adjoining room wall or a
piece of furniture must be at least 25 mm apart to ensure
a minimum safety distance for the ducting. If the housing
unit rear panel is more than 555 mm from the front edge
of the worktop, the extension set from Miele must be
used in addition to the Plug&Play adapter.
2) After installation, the removable drip tray and cleaning
flap must remain accessible. 3) The cross-sectional area
of the vent must be at least 425 cm².
3) The cross-sectional area of the vent must be at least
425 cm².
x) Dimension by which the worktop is deeper than
600 mm
KMDA 7272 FL, KMDA 7473 FL
Frameless – Surface-mounted
installation
1) The cabinet panel and an adjoining room wall or a
piece of furniture must be at least 25 mm apart to ensure
a minimum safety distance for the ducting. If the housing
unit rear panel is more than 555 mm from the front edge
of the worktop, the extension set from Miele must be
used in addition to the Plug&Play adapter.
2) After installation, the removable drip tray and cleaning
flap must remain accessible. 3) The cross-sectional area
of the vent must be at least 425 cm².
3) The cross-sectional area of the vent must be at least
425 cm².
x) Dimension by which the worktop is deeper than
600 mm
KMDA 7272 FL, KMDA 7473 FL
Frameless – Flush-fit installation
1) The cabinet panel and an adjoining room wall or a
piece of furniture must be at least 25 mm apart to ensure
a minimum safety distance for the ducting. If the housing
unit rear panel is more than 555 mm from the front edge
of the worktop, the extension set from Miele must be
used in addition to the Plug&Play adapter.
2) After installation, the removable drip tray and cleaning
flap must remain accessible. 3) The cross-sectional area
of the vent must be at least 425 cm².
3) The cross-sectional area of the vent must be at least
425 cm².
x) Dimension by which the worktop is deeper than
600 mm.

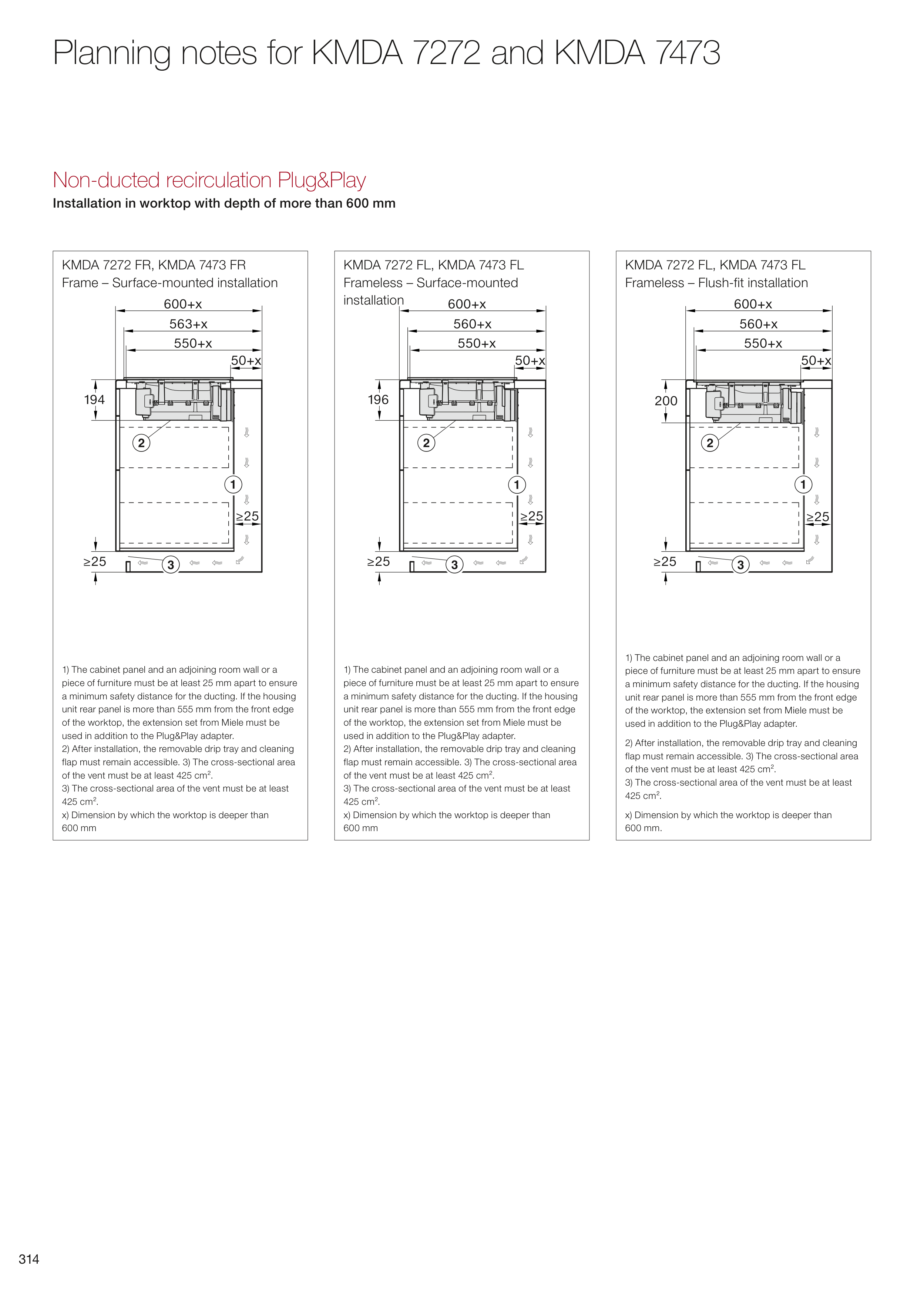

Non-ducted recirculation Plug&Play
Installation in worktop with depth of more than 600 mm
Planning notes for KMDA 7272 and KMDA 7473
