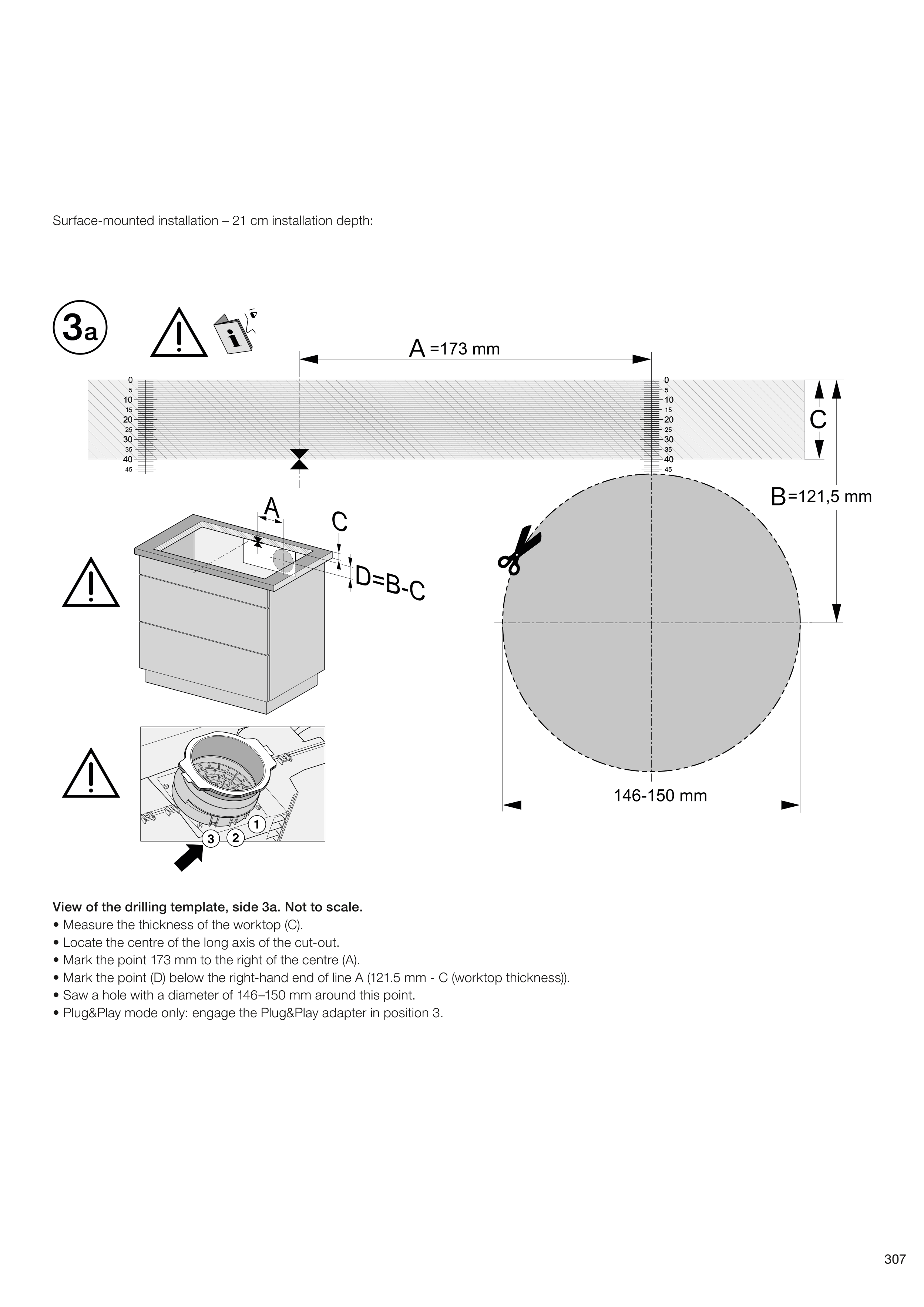

Surface-mounted installation – 21 cm installation depth:
View of the drilling template, side 3a. Not to scale.
• Measure the thickness of the worktop (C).
• Locate the centre of the long axis of the cut-out.
• Mark the point 173 mm to the right of the centre (A).
• Mark the point (D) below the right-hand end of line A (121.5 mm - C (worktop thickness)).
• Saw a hole with a diameter of 146–150 mm around this point.
• Plug&Play mode only: engage the Plug&Play adapter in position 3.
