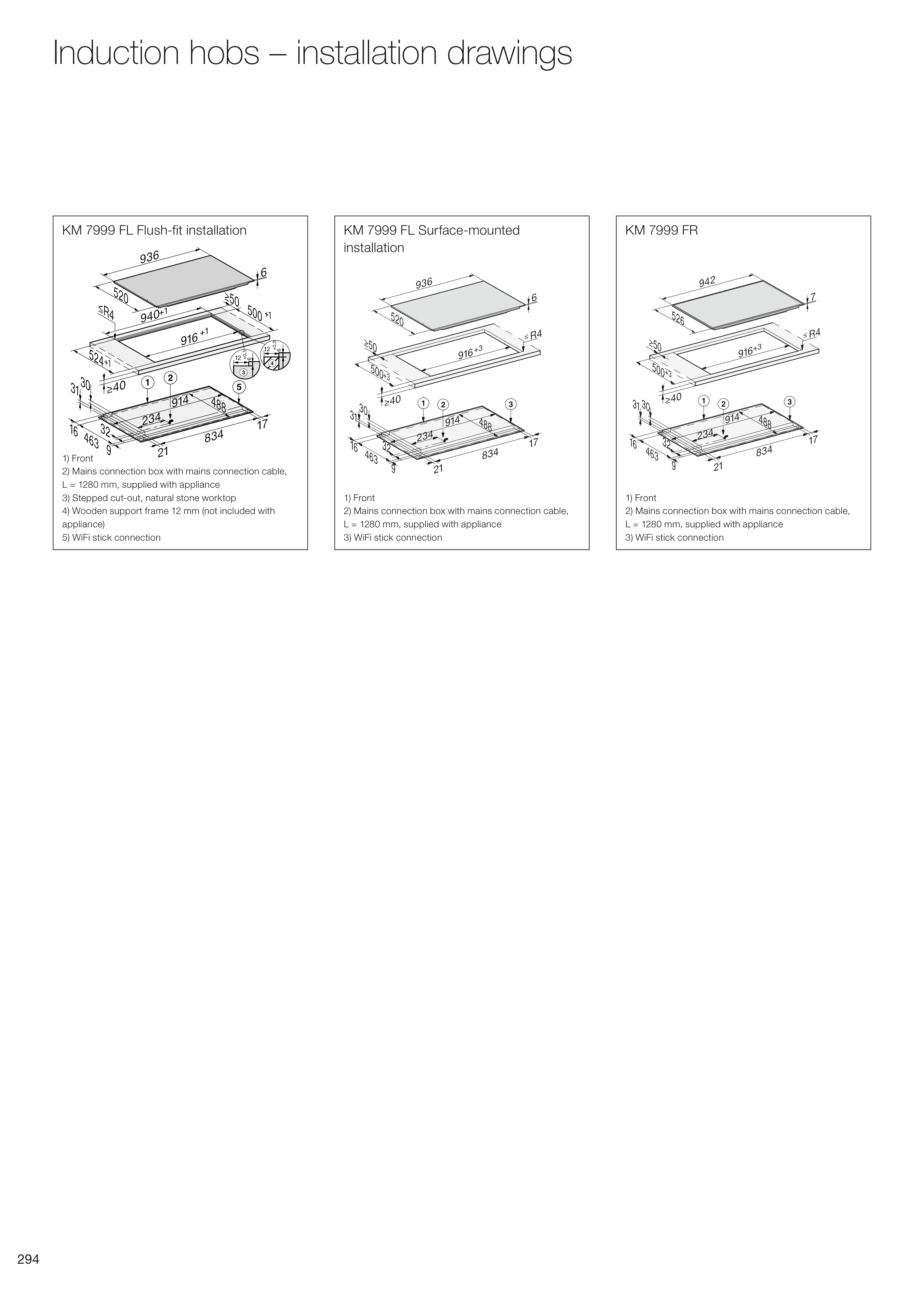

Induction hobs – installation drawings
KM 7999 FL Flush-fit installation
1) Front
2) Mains connection box with mains connection cable,
L = 1280 mm, supplied with appliance
3) Stepped cut-out, natural stone worktop
4) Wooden support frame 12 mm (not included with
appliance)
5) WiFi stick connection
KM 7999 FL Surface-mounted
installation
1) Front
2) Mains connection box with mains connection cable,
L = 1280 mm, supplied with appliance
3) WiFi stick connection
KM 7999 FR
1) Front
2) Mains connection box with mains connection cable,
L = 1280 mm, supplied with appliance
3) WiFi stick connection
