291

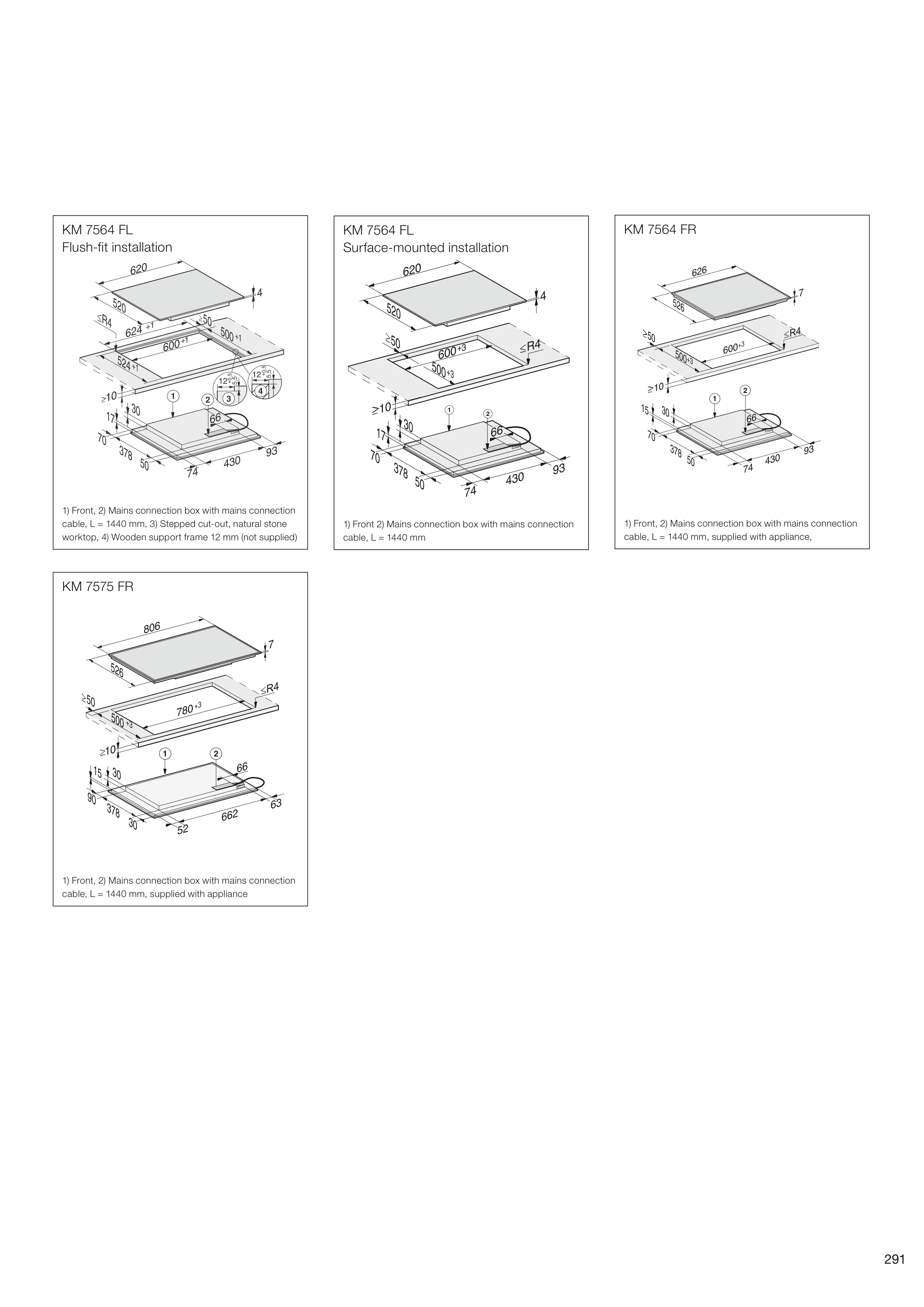

KM 7564 FL
Flush-fit installation
1) Front, 2) Mains connection box with mains connection
cable, L = 1440 mm, 3) Stepped cut-out, natural stone
worktop, 4) Wooden support frame 12 mm (not supplied)
KM 7564 FL
Surface-mounted installation
1) Front 2) Mains connection box with mains connection
cable, L = 1440 mm
KM 7564 FR
1) Front, 2) Mains connection box with mains connection
cable, L = 1440 mm, supplied with appliance,
KM 7575 FR
1) Front, 2) Mains connection box with mains connection
cable, L = 1440 mm, supplied with appliance
