282
Microwave ovens
M 6012, 26 l oven compartment
M 2224 SC, 17 l oven compartment
M 2224 SC, 17 l oven compartment
M 2224 SC, 17 l oven compartment
1) View from front, 2) Mains connection cable
L=1600 mm, 3) No connections permitted in this area
M 2224 SC, M 2230 SC, M 2234 SC
M 2224 SC, M 2230 SC, M 2234 SC
M 223x, 17 l oven compartment
M 223x, 26 l oven compartment

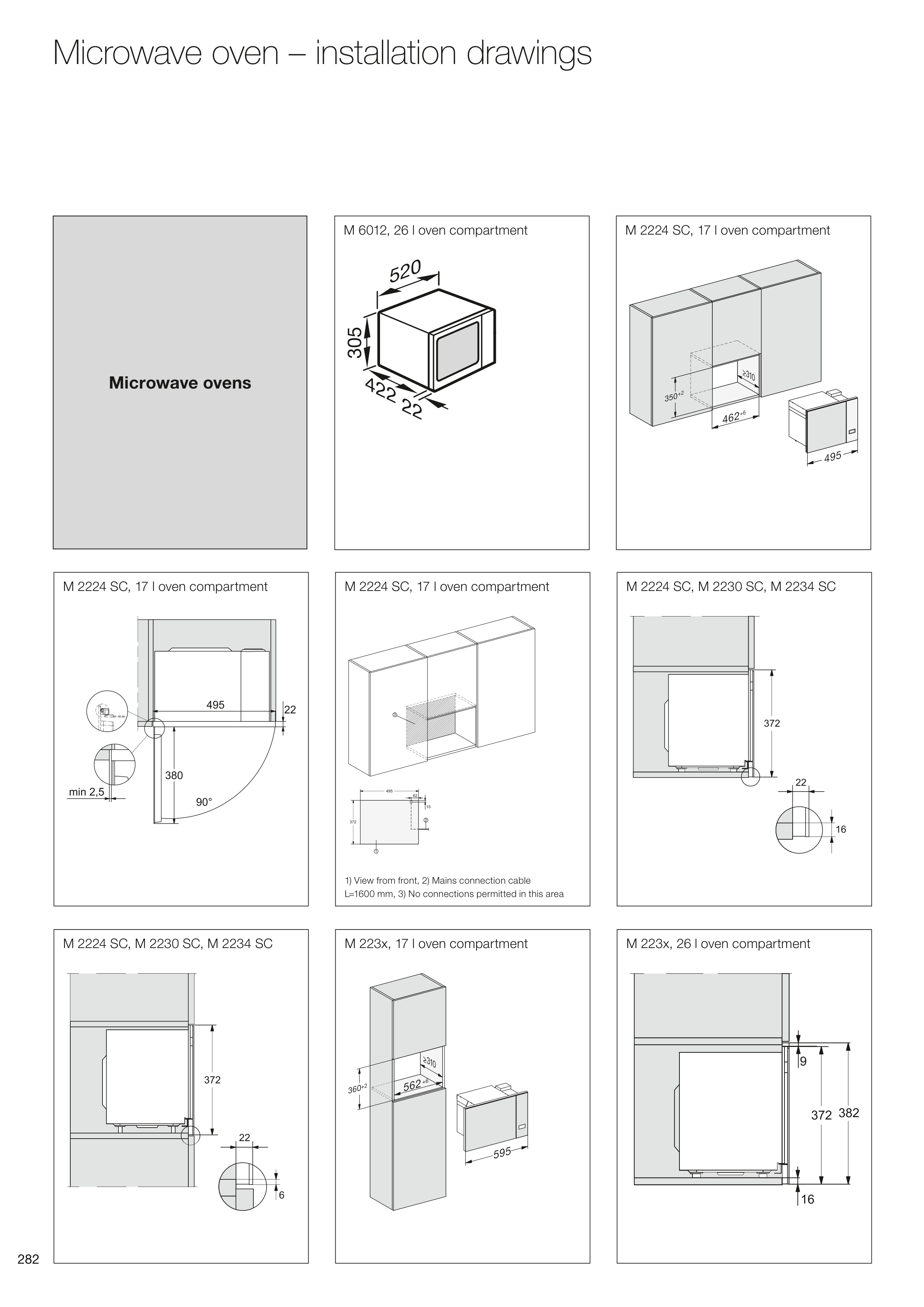

Microwave oven – installation drawings
