193

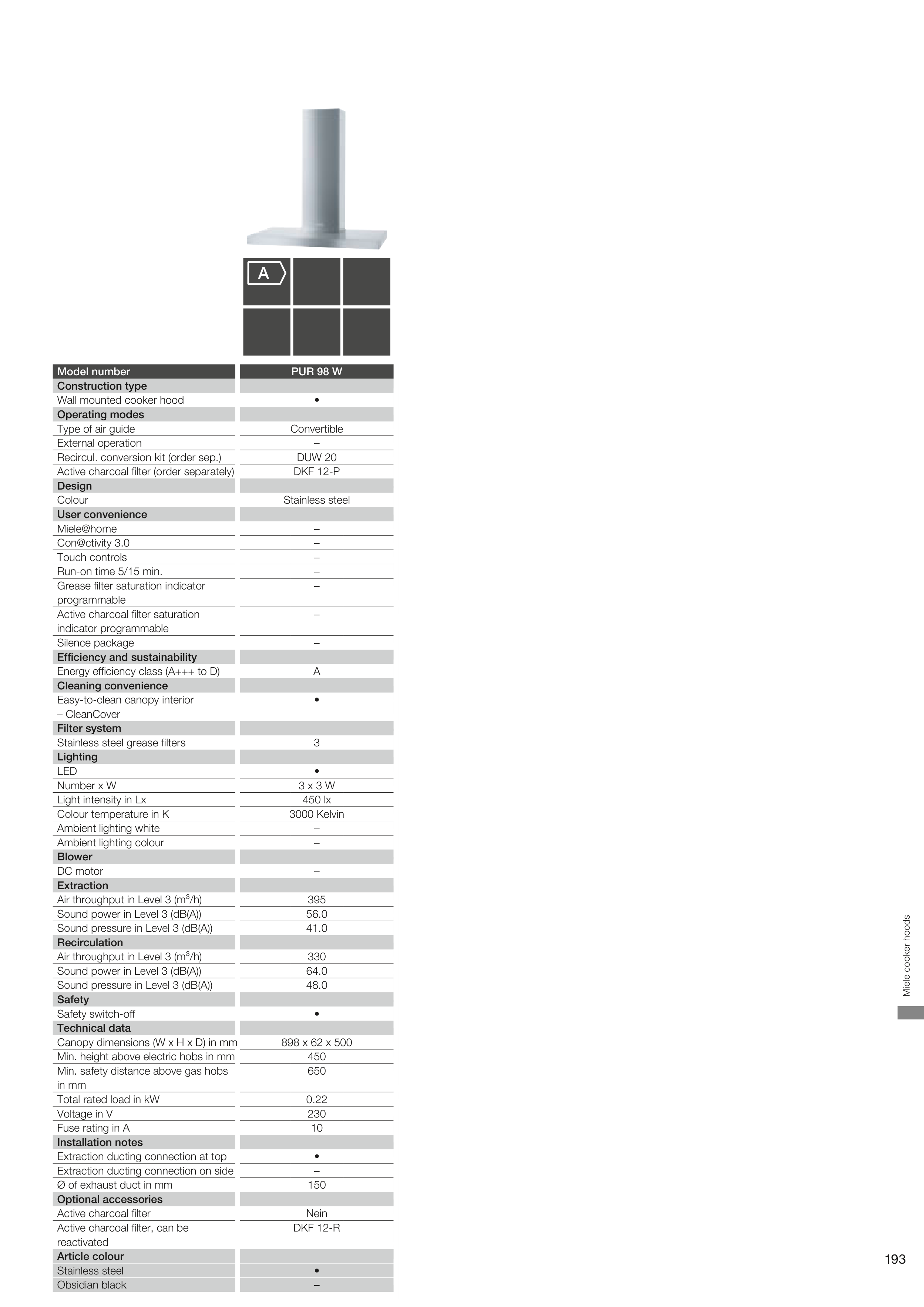

Miele cooker hoods
Model number
PUR 98 W
Construction type
Wall mounted cooker hood
•
Operating modes
Type of air guide
Convertible
External operation
–
Recircul. conversion kit (order sep.)
DUW 20
Active charcoal filter (order separately)
DKF 12-P
Design
Colour
Stainless steel
User convenience
Miele@home
–
Con@ctivity 3.0
–
Touch controls
–
Run-on time 5/15 min.
–
Grease filter saturation indicator
programmable
–
Active charcoal filter saturation
indicator programmable
–
Silence package
–
Efficiency and sustainability
Energy efficiency class (A+++ to D)
A
Cleaning convenience
Easy-to-clean canopy interior
– CleanCover
•
Filter system
Stainless steel grease filters
3
Lighting
LED
•
Number x W
3 x 3 W
Light intensity in Lx
450 lx
Colour temperature in K
3000 Kelvin
Ambient lighting white
–
Ambient lighting colour
–
Blower
DC motor
–
Extraction
Air throughput in Level 3 (m³/h)
395
Sound power in Level 3 (dB(A))
56.0
Sound pressure in Level 3 (dB(A))
41.0
Recirculation
Air throughput in Level 3 (m³/h)
330
Sound power in Level 3 (dB(A))
64.0
Sound pressure in Level 3 (dB(A))
48.0
Safety
Safety switch-off
•
Technical data
Canopy dimensions (W x H x D) in mm
898 x 62 x 500
Min. height above electric hobs in mm
450
Min. safety distance above gas hobs
in mm
650
Total rated load in kW
0.22
Voltage in V
230
Fuse rating in A
10
Installation notes
Extraction ducting connection at top
•
Extraction ducting connection on side
–
Ø of exhaust duct in mm
150
Optional accessories
Active charcoal filter
Nein
Active charcoal filter, can be
reactivated
DKF 12-R
Article colour
Stainless steel
•
Obsidian black
–
