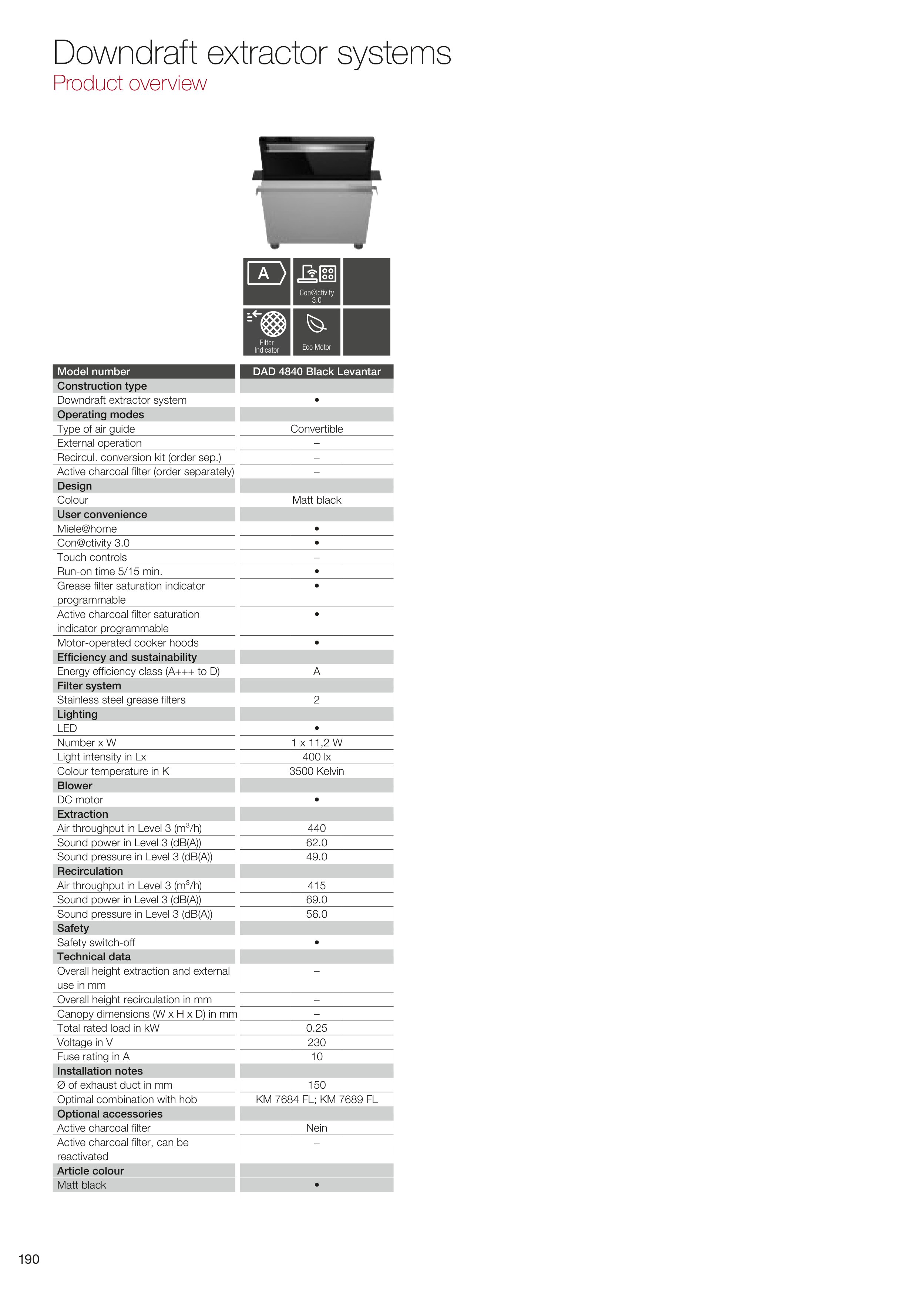

Downdraft extractor systems
Product overview
Con@ctivity
3.0
Filter
Indicator
Eco Motor
Model number
DAD 4840 Black Levantar
Construction type
Downdraft extractor system
•
Operating modes
Type of air guide
Convertible
External operation
–
Recircul. conversion kit (order sep.)
–
Active charcoal filter (order separately)
–
Design
Colour
Matt black
User convenience
Miele@home
•
Con@ctivity 3.0
•
Touch controls
–
Run-on time 5/15 min.
•
Grease filter saturation indicator
programmable
•
Active charcoal filter saturation
indicator programmable
•
Motor-operated cooker hoods
•
Efficiency and sustainability
Energy efficiency class (A+++ to D)
A
Filter system
Stainless steel grease filters
2
Lighting
LED
•
Number x W
1 x 11,2 W
Light intensity in Lx
400 lx
Colour temperature in K
3500 Kelvin
Blower
DC motor
•
Extraction
Air throughput in Level 3 (m³/h)
440
Sound power in Level 3 (dB(A))
62.0
Sound pressure in Level 3 (dB(A))
49.0
Recirculation
Air throughput in Level 3 (m³/h)
415
Sound power in Level 3 (dB(A))
69.0
Sound pressure in Level 3 (dB(A))
56.0
Safety
Safety switch-off
•
Technical data
Overall height extraction and external
use in mm
–
Overall height recirculation in mm
–
Canopy dimensions (W x H x D) in mm
–
Total rated load in kW
0.25
Voltage in V
230
Fuse rating in A
10
Installation notes
Ø of exhaust duct in mm
150
Optimal combination with hob
KM 7684 FL; KM 7689 FL
Optional accessories
Active charcoal filter
Nein
Active charcoal filter, can be
reactivated
–
Article colour
Matt black
•
