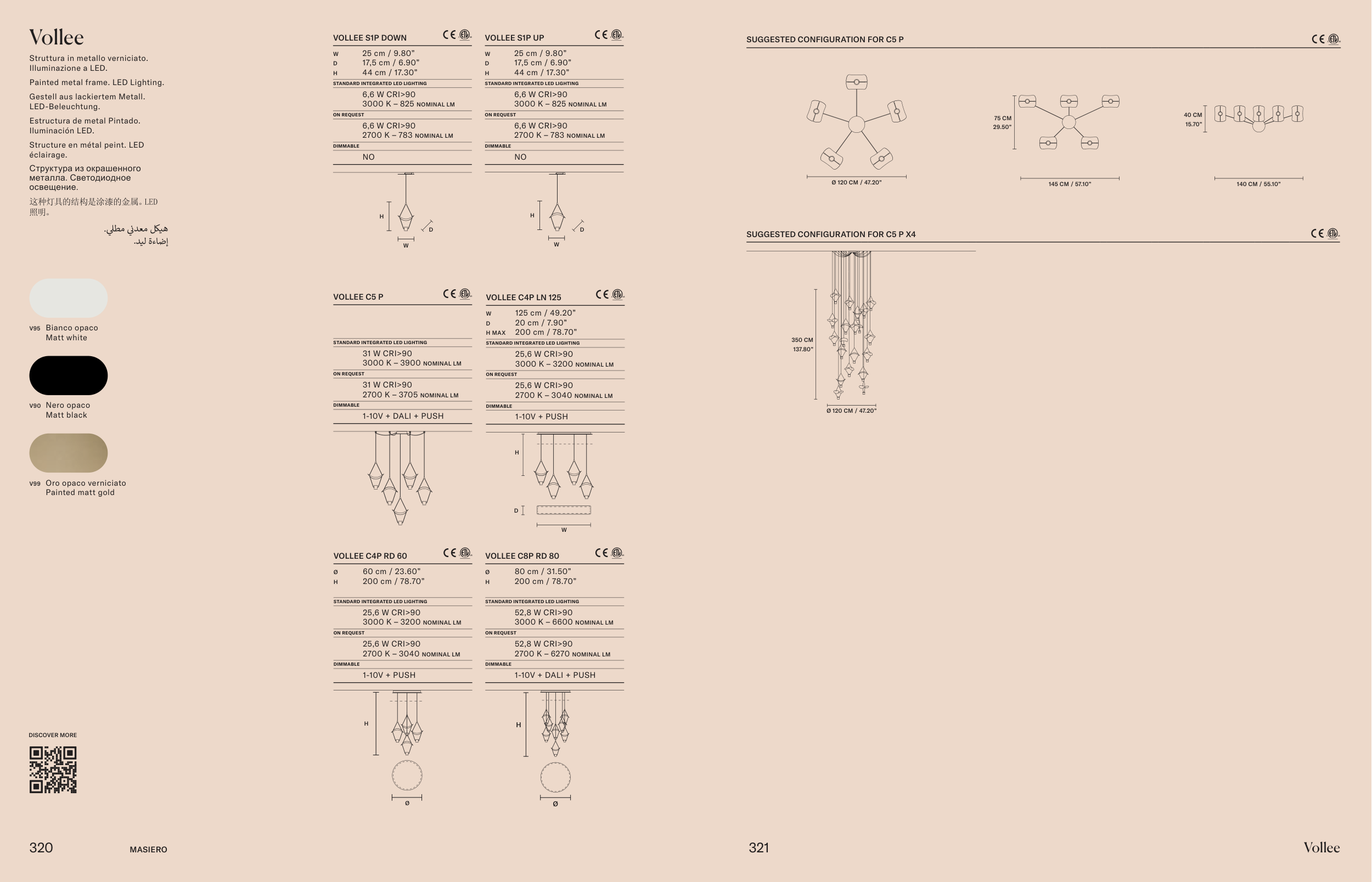

Vollee
Struttura in metallo verniciato.
Illuminazione a LED.
Painted metal frame. LED Lighting.
Gestell aus lackiertem Metall.
LED-Beleuchtung.
Estructura de metal Pintado.
Iluminación LED.
Structure en métal peint. LED
éclairage.
Структура из окрашенного
металла. Светодиодное
освещение.
这种灯具的结构是涂漆的金属。LED
照明。
.يليطم ي�نيدعم لكيه
.ديل ةءاضإ
V95 Bianco opaco
Matt white
V90 Nero opaco
Matt black
V99 Oro opaco verniciato
Painted matt gold
VOLLEE C4P LN 125
W
125 cm / 49.20”
D
20 cm / 7.90”
H MAX
200 cm / 78.70”
STANDARD INTEGRATED LED LIGHTING
25,6 W CRI>90
3000 K – 3200 NOMINAL LM
ON REQUEST
25,6 W CRI>90
2700 K – 3040 NOMINAL LM
DIMMABLE
1-10V + PUSH
VOLLEE C5 P
STANDARD INTEGRATED LED LIGHTING
31 W CRI>90
3000 K – 3900 NOMINAL LM
ON REQUEST
31 W CRI>90
2700 K – 3705 NOMINAL LM
DIMMABLE
1-10V + DALI + PUSH
VOLLEE S1P DOWN
W
25 cm / 9.80”
D
17,5 cm / 6.90”
H
44 cm / 17.30”
STANDARD INTEGRATED LED LIGHTING
6,6 W CRI>90
3000 K – 825 NOMINAL LM
ON REQUEST
6,6 W CRI>90
2700 K – 783 NOMINAL LM
DIMMABLE
NO
VOLLEE S1P UP
W
25 cm / 9.80”
D
17,5 cm / 6.90”
H
44 cm / 17.30”
STANDARD INTEGRATED LED LIGHTING
6,6 W CRI>90
3000 K – 825 NOMINAL LM
ON REQUEST
6,6 W CRI>90
2700 K – 783 NOMINAL LM
DIMMABLE
NO
W
D
H
VOLLEE C4P RD 60
Ø
60 cm / 23.60”
H
200 cm / 78.70”
STANDARD INTEGRATED LED LIGHTING
25,6 W CRI>90
3000 K – 3200 NOMINAL LM
ON REQUEST
25,6 W CRI>90
2700 K – 3040 NOMINAL LM
DIMMABLE
1-10V + PUSH
VOLLEE C8P RD 80
Ø
80 cm / 31.50”
H
200 cm / 78.70”
STANDARD INTEGRATED LED LIGHTING
52,8 W CRI>90
3000 K – 6600 NOMINAL LM
ON REQUEST
52,8 W CRI>90
2700 K – 6270 NOMINAL LM
DIMMABLE
1-10V + DALI + PUSH
Ø
H
Ø
H
H
W
H
W
D
D
DISCOVER MORE
SUGGESTED CONFIGURATION FOR C5 P
SUGGESTED CONFIGURATION FOR C5 P X4
386627_Masiero_Catalogo-Dimore2025_MONDO201224.indd 320
386627_Masiero_Catalogo-Dimore2025_MONDO201224.indd 320
13/01/25 12:26
13/01/25 12:26
321
Vollee
SUGGESTED CONFIGURATION FOR C5 P
SUGGESTED CONFIGURATION FOR C5 P X4
Ø 120 CM / 47.20”
145 CM / 57.10”
75 CM
29.50”
140 CM / 55.10”
40 CM
15.70”
350 CM
137.80”
Ø 120 CM / 47.20”
