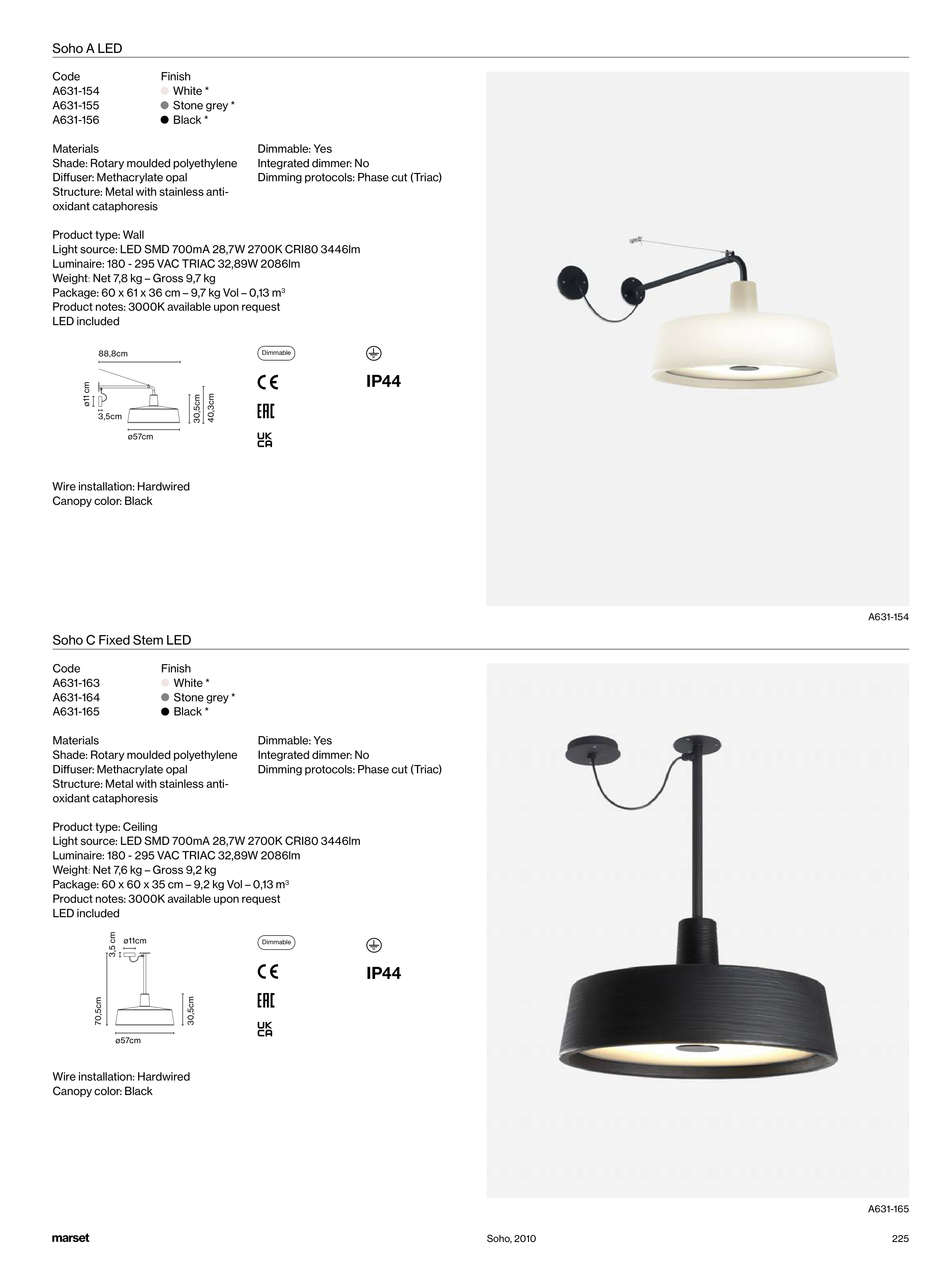

Soho A LED
Code
Finish
White *
Stone grey *
Black *
Product type: Wall
Light source: LED SMD 700mA 28,7W 2700K CRI80 3446lm
Luminaire: 180 - 295 VAC TRIAC 32,89W 2086lm
Weight: Net 7,8 kg – Gross 9,7 kg
Package: 60 x 61 x 36 cm – 9,7 kg Vol – 0,13 m3
Product notes: 3000K available upon request
LED included
Wire installation: Hardwired
Canopy color: Black
Materials
Shade: Rotary moulded polyethylene
Diffuser: Methacrylate opal
Structure: Metal with stainless anti-
oxidant cataphoresis
Dimmable: Yes
Integrated dimmer: No
Dimming protocols: Phase cut (Triac)
Soho C Fixed Stem LED
Code
Finish
White *
Stone grey *
Black *
Product type: Ceiling
Light source: LED SMD 700mA 28,7W 2700K CRI80 3446lm
Luminaire: 180 - 295 VAC TRIAC 32,89W 2086lm
Weight: Net 7,6 kg – Gross 9,2 kg
Package: 60 x 60 x 35 cm – 9,2 kg Vol – 0,13 m3
Product notes: 3000K available upon request
LED included
Wire installation: Hardwired
Canopy color: Black
Materials
Shade: Rotary moulded polyethylene
Diffuser: Methacrylate opal
Structure: Metal with stainless anti-
oxidant cataphoresis
Dimmable: Yes
Integrated dimmer: No
Dimming protocols: Phase cut (Triac)
Dimmable
IP44
ø57cm
40,3cm
88,8cm
30,5cm
ø11 cm
3,5cm
Dimmable
IP44
ø57cm
30,5cm
3,5 cm
ø11cm
70,5cm
A631-154
A631-165
A631-154
A631-155
A631-156
A631-163
A631-164
A631-165
225
Soho, 2010
