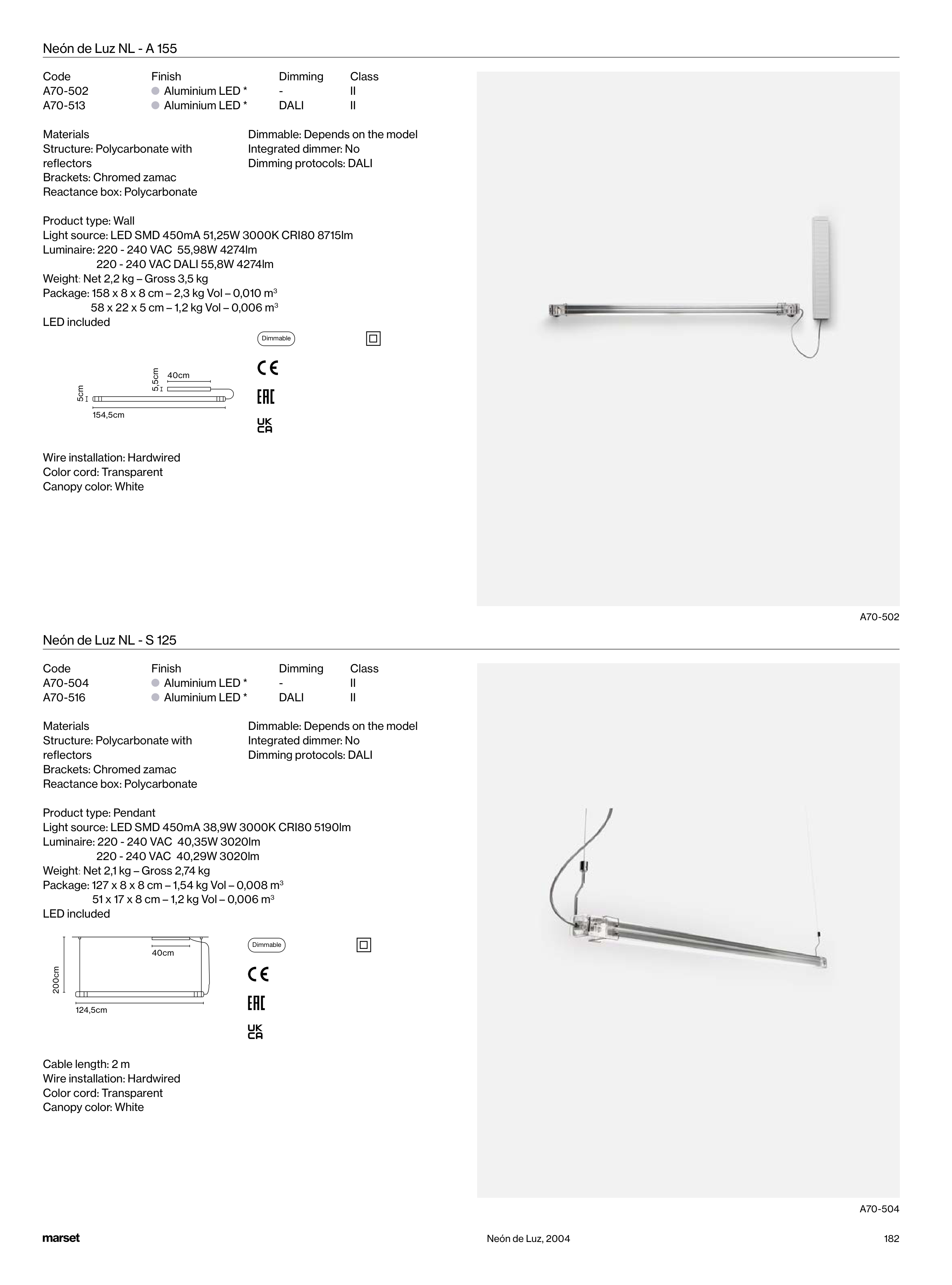

Neón de Luz NL - A 155
Code
Finish
Aluminium LED *
Aluminium LED *
Product type: Wall
Light source: LED SMD 450mA 51,25W 3000K CRI80 8715lm
Luminaire: 220 - 240 VAC 55,98W 4274lm
220 - 240 VAC DALI 55,8W 4274lm
Weight: Net 2,2 kg – Gross 3,5 kg
Package: 158 x 8 x 8 cm – 2,3 kg Vol – 0,010 m3
58 x 22 x 5 cm – 1,2 kg Vol – 0,006 m3
LED included
Wire installation: Hardwired
Color cord: Transparent
Canopy color: White
Materials
Structure: Polycarbonate with
reflectors
Brackets: Chromed zamac
Reactance box: Polycarbonate
Dimmable: Depends on the model
Integrated dimmer: No
Dimming protocols: DALI
Class
Dimming
II
II
-
DALI
Neón de Luz NL - S 125
Code
Finish
Aluminium LED *
Aluminium LED *
Product type: Pendant
Light source: LED SMD 450mA 38,9W 3000K CRI80 5190lm
Luminaire: 220 - 240 VAC 40,35W 3020lm
220 - 240 VAC 40,29W 3020lm
Weight: Net 2,1 kg – Gross 2,74 kg
Package: 127 x 8 x 8 cm – 1,54 kg Vol – 0,008 m3
51 x 17 x 8 cm – 1,2 kg Vol – 0,006 m3
LED included
Cable length: 2 m
Wire installation: Hardwired
Color cord: Transparent
Canopy color: White
Materials
Structure: Polycarbonate with
reflectors
Brackets: Chromed zamac
Reactance box: Polycarbonate
Dimmable: Depends on the model
Integrated dimmer: No
Dimming protocols: DALI
Class
Dimming
II
II
-
DALI
Dimmable
154,5cm
5cm
5,5cm
40cm
Dimmable
124,5cm
40cm
200cm
A70-502
A70-504
A70-502
A70-513
A70-504
A70-516
182
Neón de Luz, 2004
