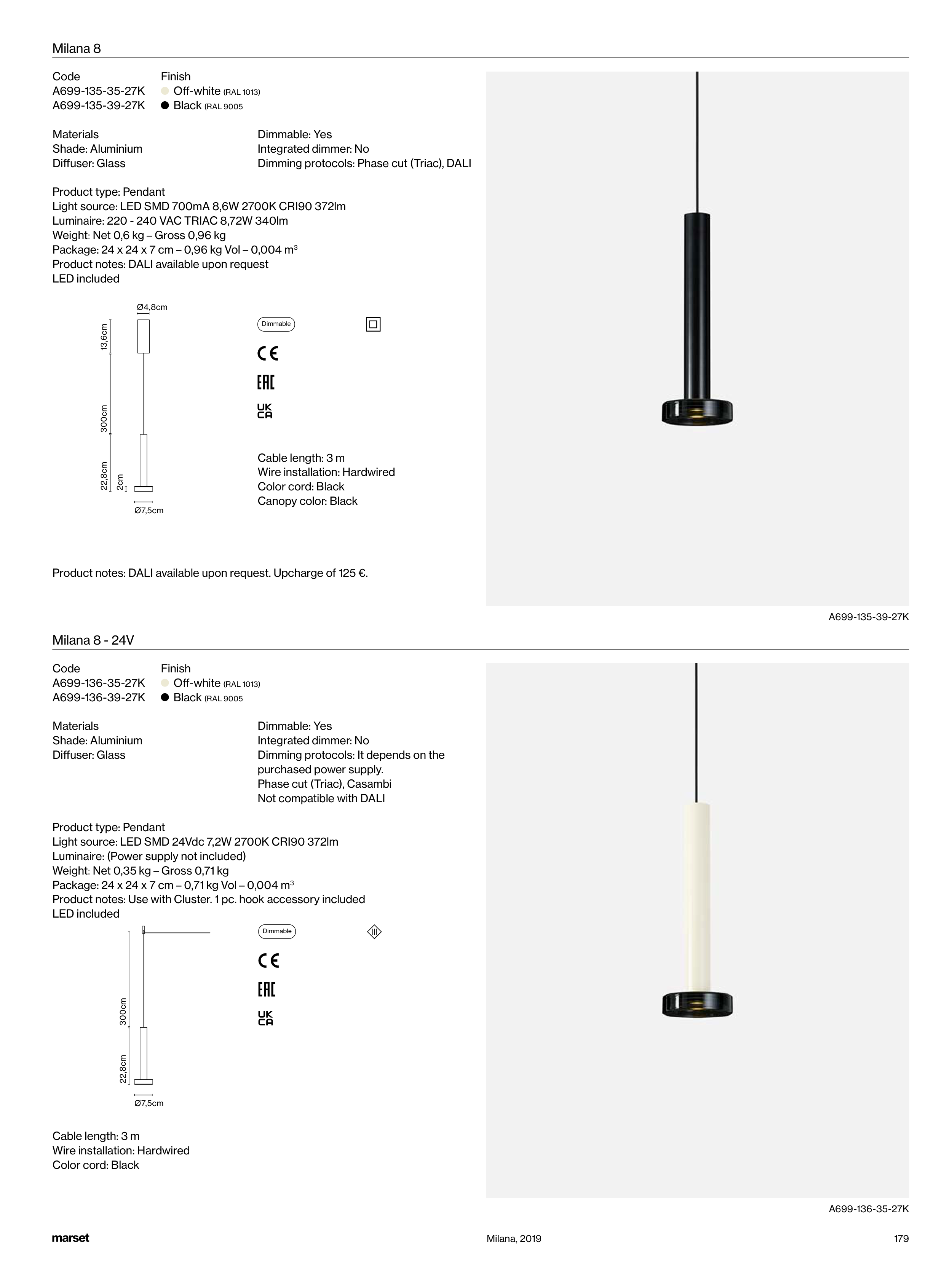

Milana 8
Milana 8 - 24V
Code
Code
Finish
Finish
Product type: Pendant
Light source: LED SMD 700mA 8,6W 2700K CRI90 372lm
Luminaire: 220 - 240 VAC TRIAC 8,72W 340lm
Weight: Net 0,6 kg – Gross 0,96 kg
Package: 24 x 24 x 7 cm – 0,96 kg Vol – 0,004 m3
Product notes: DALI available upon request
LED included
Product type: Pendant
Light source: LED SMD 24Vdc 7,2W 2700K CRI90 372lm
Luminaire: (Power supply not included)
Weight: Net 0,35 kg – Gross 0,71 kg
Package: 24 x 24 x 7 cm – 0,71 kg Vol – 0,004 m3
Product notes: Use with Cluster. 1 pc. hook accessory included
LED included
Cable length: 3 m
Wire installation: Hardwired
Color cord: Black
Canopy color: Black
Cable length: 3 m
Wire installation: Hardwired
Color cord: Black
Materials
Materials
Shade: Aluminium
Diffuser: Glass
Shade: Aluminium
Diffuser: Glass
Dimmable: Yes
Integrated dimmer: No
Dimming protocols: Phase cut (Triac), DALI
Dimmable: Yes
Integrated dimmer: No
Dimming protocols: It depends on the
purchased power supply.
Phase cut (Triac), Casambi
Not compatible with DALI
Off-white (RAL 1013)
Off-white (RAL 1013)
Black (RAL 9005
Black (RAL 9005
Product notes: DALI available upon request. Upcharge of 125 €.
Dimmable
Ø4,8cm
Ø7,5cm
Ø7,5cm
22,8cm
2cm
22,8cm
300cm
300cm
13,6cm
Dimmable
A699-135-39-27K
A699-136-35-27K
A699-135-35-27K
A699-135-39-27K
A699-136-35-27K
A699-136-39-27K
179
Milana, 2019
