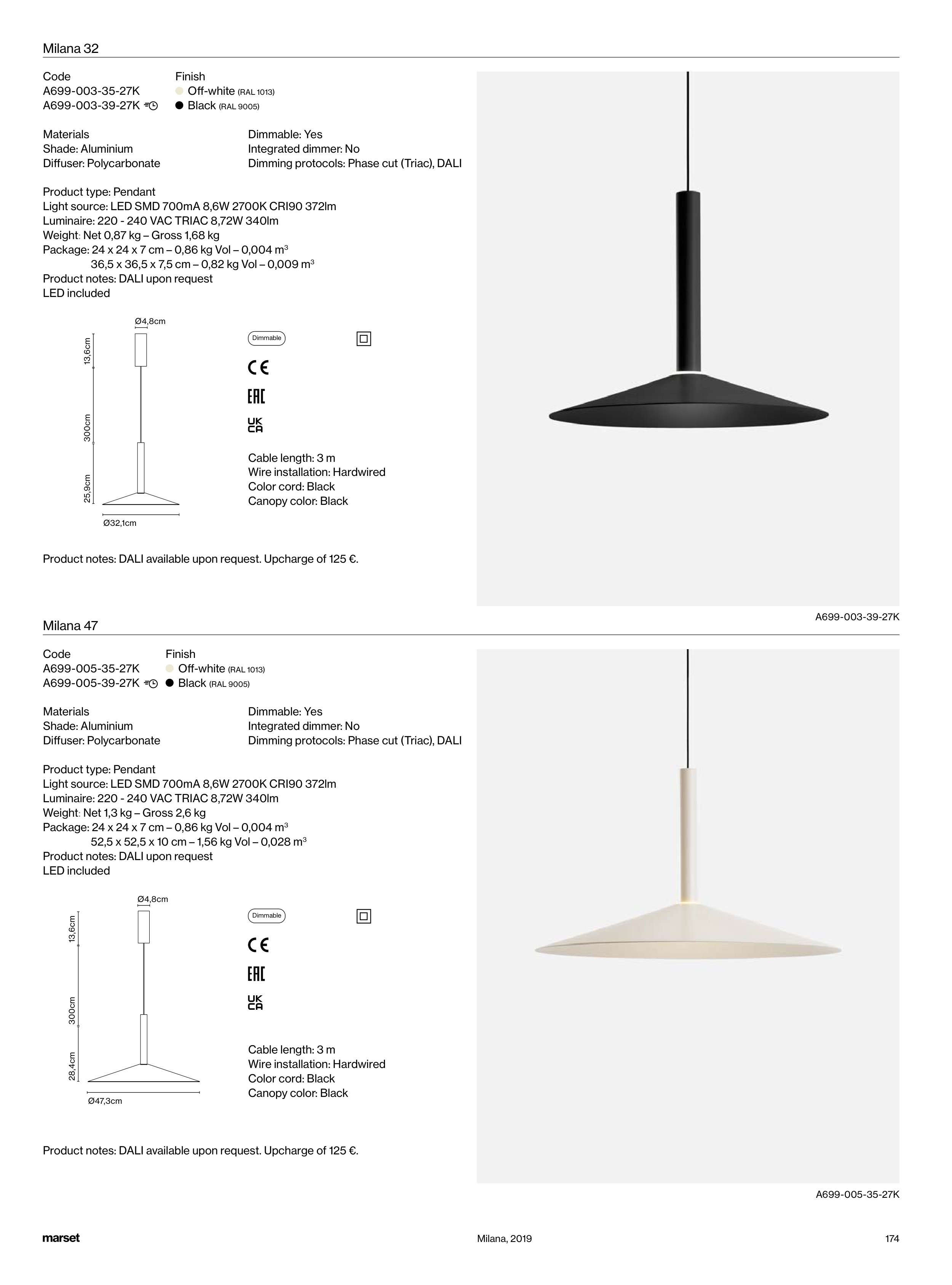

Milana 32
Milana 47
Code
Code
Finish
Finish
Off-white (RAL 1013)
Black (RAL 9005)
Off-white (RAL 1013)
Black (RAL 9005)
Product type: Pendant
Light source: LED SMD 700mA 8,6W 2700K CRI90 372lm
Luminaire: 220 - 240 VAC TRIAC 8,72W 340lm
Weight: Net 0,87 kg – Gross 1,68 kg
Package: 24 x 24 x 7 cm – 0,86 kg Vol – 0,004 m3
36,5 x 36,5 x 7,5 cm – 0,82 kg Vol – 0,009 m3
Product notes: DALI upon request
LED included
Product type: Pendant
Light source: LED SMD 700mA 8,6W 2700K CRI90 372lm
Luminaire: 220 - 240 VAC TRIAC 8,72W 340lm
Weight: Net 1,3 kg – Gross 2,6 kg
Package: 24 x 24 x 7 cm – 0,86 kg Vol – 0,004 m3
52,5 x 52,5 x 10 cm – 1,56 kg Vol – 0,028 m3
Product notes: DALI upon request
LED included
Cable length: 3 m
Wire installation: Hardwired
Color cord: Black
Canopy color: Black
Cable length: 3 m
Wire installation: Hardwired
Color cord: Black
Canopy color: Black
Materials
Materials
Shade: Aluminium
Diffuser: Polycarbonate
Shade: Aluminium
Diffuser: Polycarbonate
Dimmable: Yes
Integrated dimmer: No
Dimming protocols: Phase cut (Triac), DALI
Dimmable: Yes
Integrated dimmer: No
Dimming protocols: Phase cut (Triac), DALI
Product notes: DALI available upon request. Upcharge of 125 €.
Product notes: DALI available upon request. Upcharge of 125 €.
Dimmable
Ø4,8cm
Ø32,1cm
25,9cm
300cm
13,6cm
Dimmable
Ø4,8cm
Ø47,3cm
28,4cm
300cm
13,6cm
A699-003-39-27K
A699-005-35-27K
A699-003-35-27K
A699-003-39-27K
A699-005-35-27K
A699-005-39-27K
174
Milana, 2019
