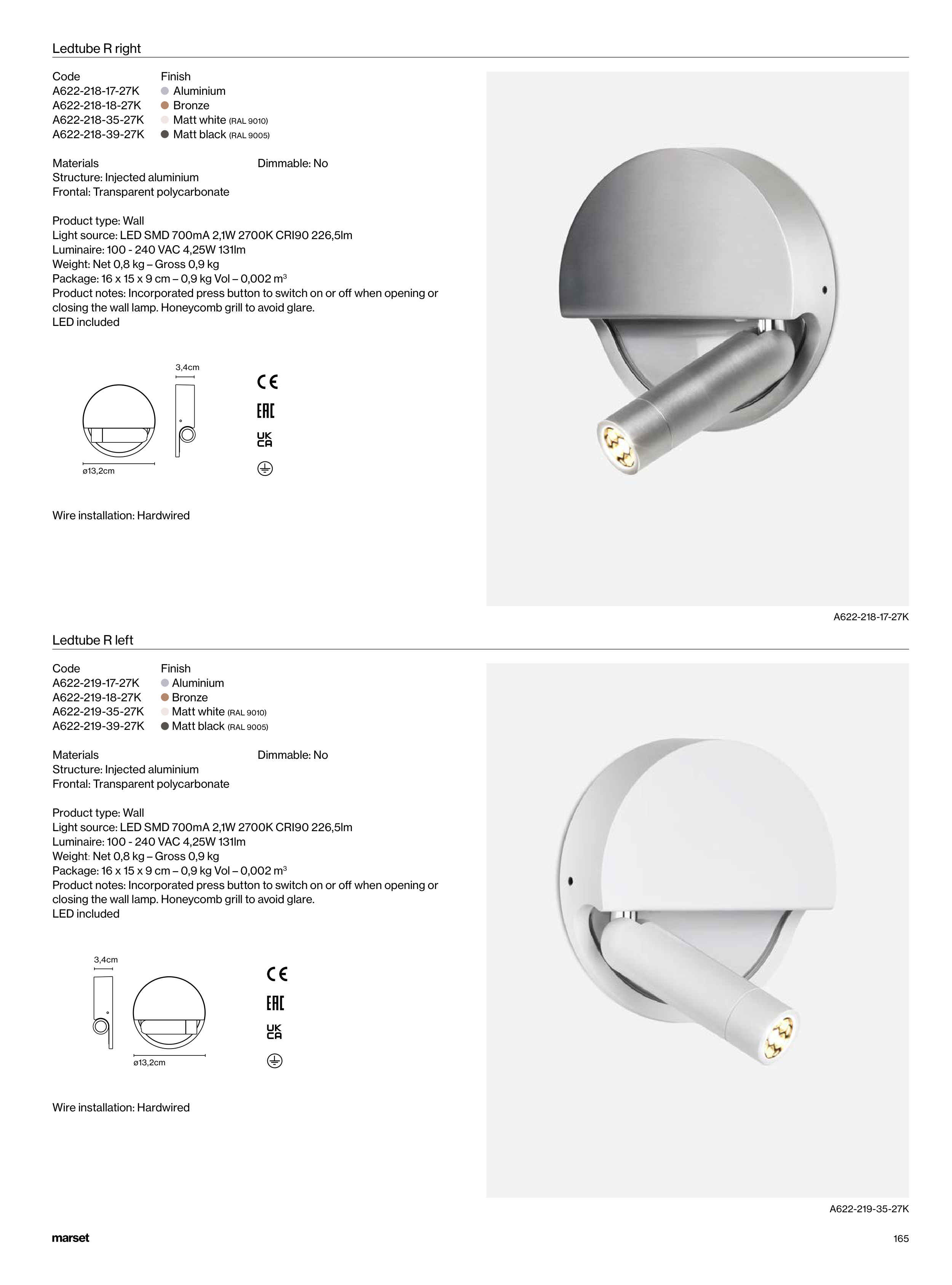

Ledtube R right
Code
Finish
Aluminium
Bronze
Matt white (RAL 9010)
Matt black (RAL 9005)
Product type: Wall
Light source: LED SMD 700mA 2,1W 2700K CRI90 226,5lm
Luminaire: 100 - 240 VAC 4,25W 131lm
Weight: Net 0,8 kg – Gross 0,9 kg
Package: 16 x 15 x 9 cm – 0,9 kg Vol – 0,002 m3
Product notes: Incorporated press button to switch on or off when opening or
closing the wall lamp. Honeycomb grill to avoid glare.
LED included
Wire installation: Hardwired
Materials
Structure: Injected aluminium
Frontal: Transparent polycarbonate
Dimmable: No
Ledtube R left
Code
Finish
Aluminium
Bronze
Matt white (RAL 9010)
Matt black (RAL 9005)
Product type: Wall
Light source: LED SMD 700mA 2,1W 2700K CRI90 226,5lm
Luminaire: 100 - 240 VAC 4,25W 131lm
Weight: Net 0,8 kg – Gross 0,9 kg
Package: 16 x 15 x 9 cm – 0,9 kg Vol – 0,002 m3
Product notes: Incorporated press button to switch on or off when opening or
closing the wall lamp. Honeycomb grill to avoid glare.
LED included
Wire installation: Hardwired
Materials
Structure: Injected aluminium
Frontal: Transparent polycarbonate
Dimmable: No
ø13,2cm
3,4cm
A622-218-17-27K
A622-218-17-27K
A622-218-18-27K
A622-218-35-27K
A622-218-39-27K
ø13,2cm
3,4cm
A622-219-35-27K
A622-219-17-27K
A622-219-18-27K
A622-219-35-27K
A622-219-39-27K
165
