Dimming
Dimming
Dimming
Product type: Pendant / Ceiling
Light source: ?x LED SMD 700mA 8,2W 2700K CRI90 913lm
Luminaire: ?x 220 - 240 VAC TRIAC 9,8W 497lm
Light source DTW: ?x LED COB 350mA 6W 1800-3000K CRI90 636lm
Luminaire DTW: ?x 220 - 240 VAC TRIAC 7,6W
Package:
Glass
21 x 42 x 42 cm - 3 kg Vol - 0,04 m3
Start+End 100cm
24 x 14 x 114 cm - 3,7 kg Vol - 0,04 m3
Start+End 150cm
18 x 18 x 167 cm - 5,2 kg Vol - 0,05 m3
Start+End 200cm
18 x 18 x 225 cm - 6,7 kg Vol - 0,07 m3
Central 100cm
24 x 14 x 114 cm - 2,8 kg Vol - 0,04 m3
Central 150cm
18 x 18 x 167 cm - 4,5 kg Vol - 0,05 m3
Central 200cm
18 x 18 x 225 cm - 5,4 kg Vol - 0,07 m3
Product notes: 3000K available upon under request
Product notes: Maximum 14 units.
Product notes: Take into account the overall height of the setup. 1 horizontal tube
included. Maximum 1 unit.
Product notes: Take into account the overall height of the setup. 1 horizontal tube
included. Maximum 12 unit.
Triac
Triac
Triac
Triac
Triac
Triac
Triac - DTW
Triac - DTW
Triac - DTW
Triac - DTW
Triac
Triac
Triac
Triac
Triac - DTW
Triac - DTW
Triac - DTW
Triac - DTW
Materials
Structure: Steel
Shade: Opal blown glass
Dimmable: Yes
Integrated dimmer: No
Dimming protocols: Phase cut (Triac)
Dim to warm from 1800K to 3000K. (Triac)
Configuration x4: 4A + 1B + 2C
Configuration x5: 5A + 1B + 3C
Configuration x6: 6A + 1B + 4C
Configuration x7: 7A + 1B + 5C
Configuration x8: 8A + 1B + 6C
Configuration x9: 9A + 1B + 7C
Configuration x10: 10A + 1B + 8C
Configuration x11: 11A + 1B + 9C
Configuration x12: 12A + 1B + 10C
Configuration x13: 13A + 1B + 11C
Configuration x14: 14A + 1B + 12C
Code
Code
Code
Glass (A)
Start + End set (B)
Central tube (C)
Description
Description
Description

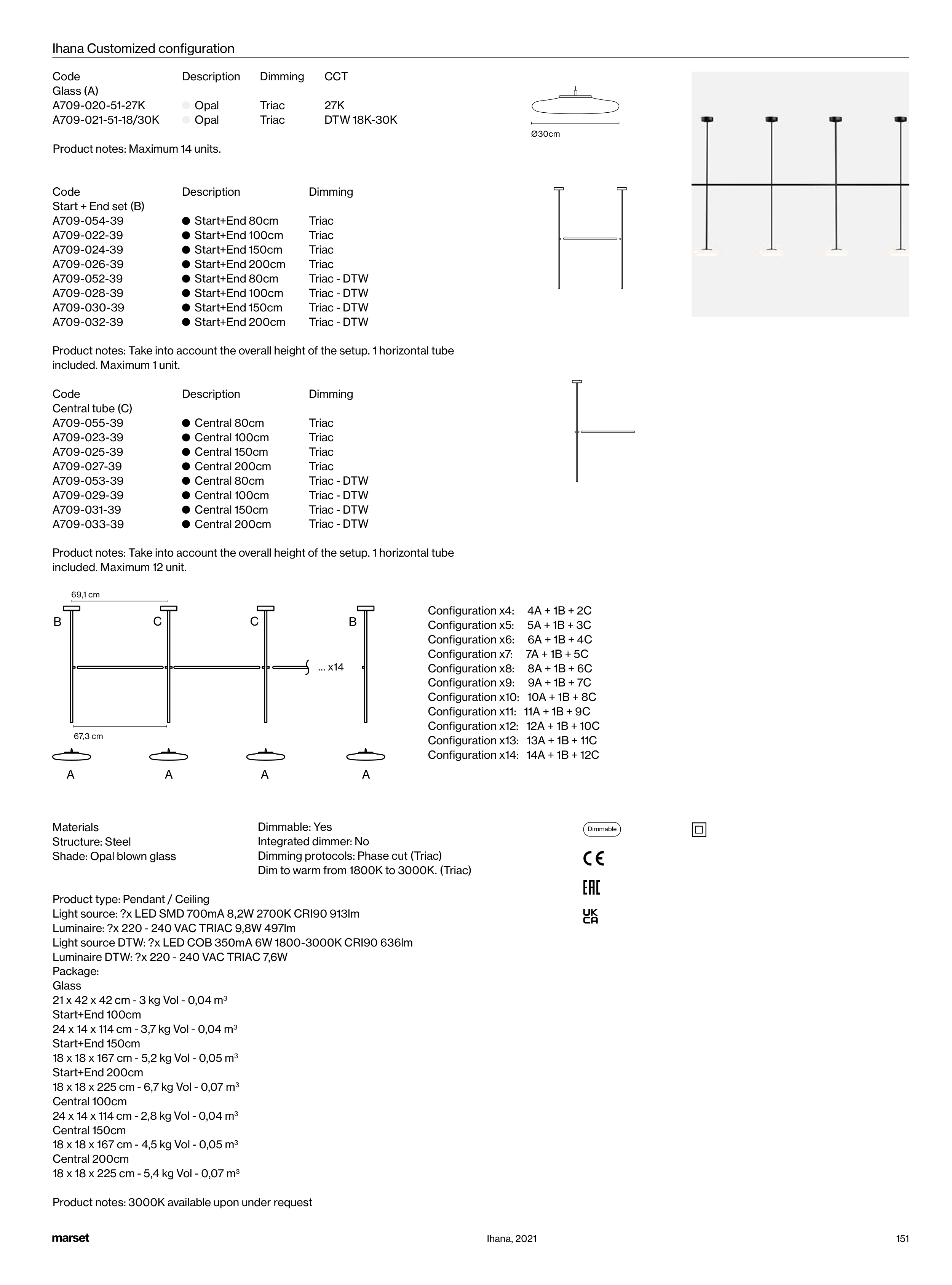

Ihana Customized configuration
Opal
Opal
Start+End 80cm
Start+End 100cm
Start+End 150cm
Start+End 200cm
Start+End 80cm
Start+End 100cm
Start+End 150cm
Start+End 200cm
Central 80cm
Central 100cm
Central 150cm
Central 200cm
Central 80cm
Central 100cm
Central 150cm
Central 200cm
CCT
27K
DTW 18K-30K
Dimmable
Ø30cm
A
B
B
C
... x14
C
A
A
A
69,1 cm
67,3 cm
A709-020-51-27K
A709-021-51-18/30K
A709-054-39
A709-022-39
A709-024-39
A709-026-39
A709-052-39
A709-028-39
A709-030-39
A709-032-39
A709-055-39
A709-023-39
A709-025-39
A709-027-39
A709-053-39
A709-029-39
A709-031-39
A709-033-39
151
Ihana, 2021
