Code
Finish
Ground fixation plate
Materials
Structure: Stainless steel 316 L
Stainless steel
Product type: Accessory
Weight: Net 1,6 kg – Gross 2,4 kg
Package: 35 x 24 x 24 cm - 2,4 kg – VOL - 0,02 m3

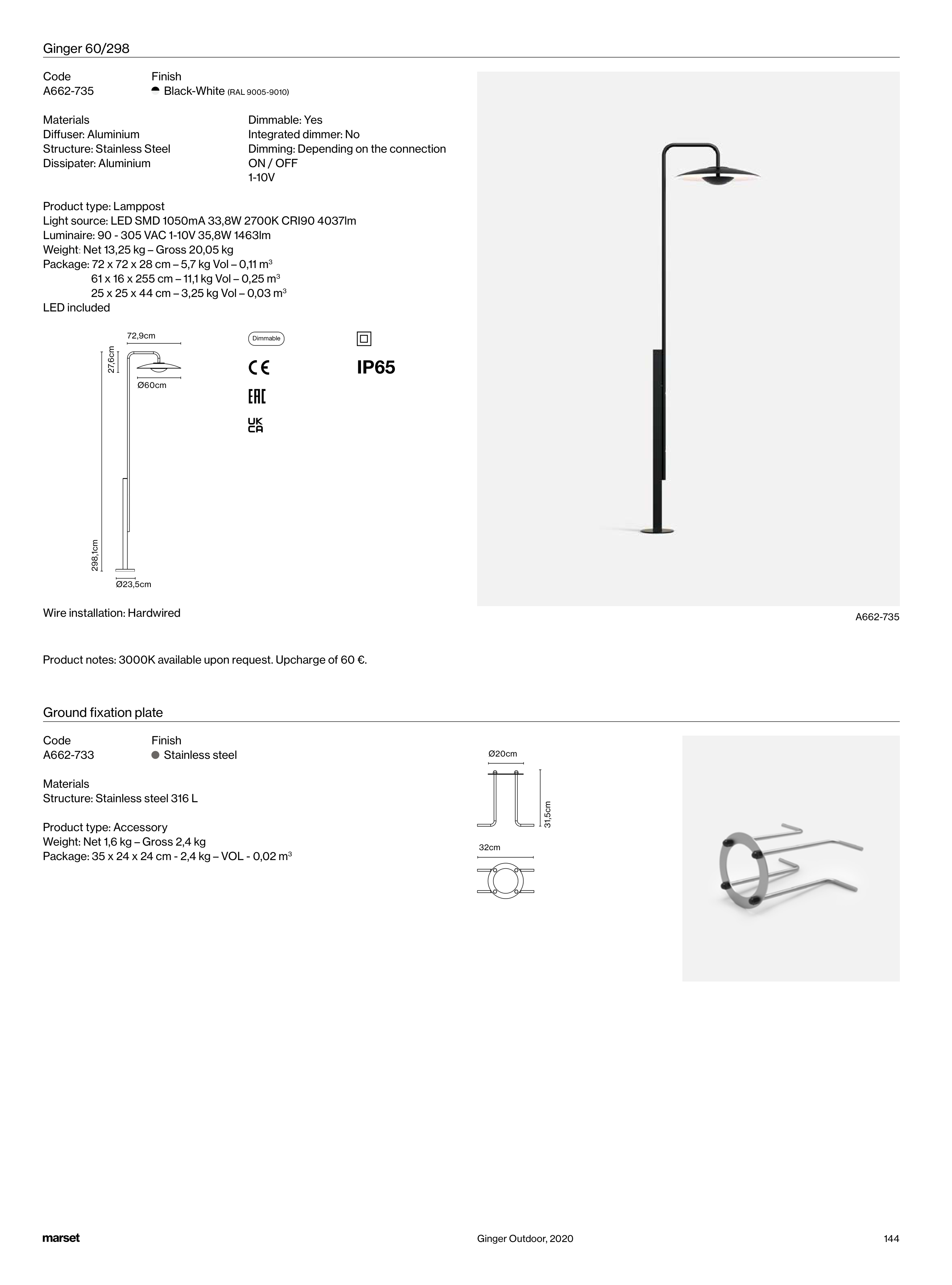

Ginger 60/298
Code
Finish
Black-White (RAL 9005-9010)
Product type: Lamppost
Light source: LED SMD 1050mA 33,8W 2700K CRI90 4037lm
Luminaire: 90 - 305 VAC 1-10V 35,8W 1463lm
Weight: Net 13,25 kg – Gross 20,05 kg
Package: 72 x 72 x 28 cm – 5,7 kg Vol – 0,11 m3
61 x 16 x 255 cm – 11,1 kg Vol – 0,25 m3
25 x 25 x 44 cm – 3,25 kg Vol – 0,03 m3
LED included
Wire installation: Hardwired
Materials
Diffuser: Aluminium
Structure: Stainless Steel
Dissipater: Aluminium
Dimmable: Yes
Integrated dimmer: No
Dimming: Depending on the connection
ON / OFF
1-10V
Product notes: 3000K available upon request. Upcharge of 60 €.
Dimmable
IP65
Ø60cm
72,9cm
27,6cm
298,1cm
Ø23,5cm
Ø20cm
32cm
31,5cm
A662-735
A662-733
A662-735
144
Ginger Outdoor, 2020
