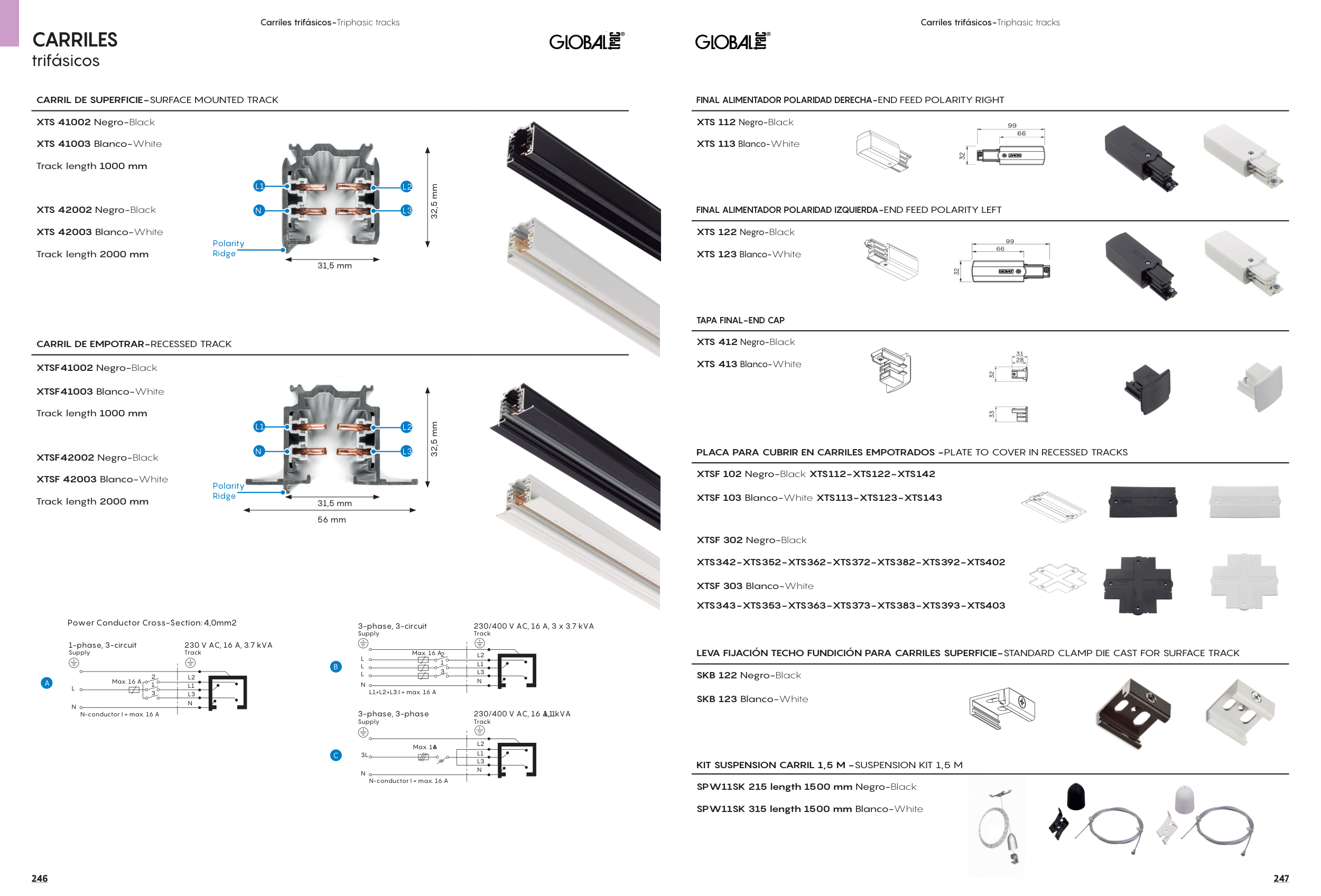

Carriles trifásicos-Triphasic tracks
Indoor
Carriles trifásicos-Triphasic tracks
32,5 mm
31,5 mm
56 mm
L1
N
L3
L2
Polarity
Ridge
32,5 mm
31,5 mm
L1
N
L3
L2
Polarity
Ridge
N-conductor I = max. 16 A
1-phase, 3-circuit
Supply
230 V AC, 16 A, 3.7 kVA
Track
Max. 16 A
2
1
3
L2
L1
L3
N
L
N
A
Power Conductor Cross-Section: 4,0mm2
L
L
3-phase, 3-circuit
Supply
230/400 V AC, 16 A, 3 x 3.7 kVA
Track
Max. 16 A 2
1
3
L2
L1
L3
N
L
N
L1+L2+L3:I = max. 16 A
3-phase, 3-phase
Supply
230/400 V AC, 16 A, 1
1.1 kVA
Track
N-conductor I = max. 16 A
3L
N
L2
L1
L3
N
Max. 16
A
B
C
CARRIL DE SUPERFICIE-SURFACE MOUNTED TRACK
XTS 41002 Negro-Black
XTS 41003 Blanco-White
Track length 1000 mm
XTS 42002 Negro-Black
XTS 42003 Blanco-White
Track length 2000 mm
CARRIL DE EMPOTRAR-RECESSED TRACK
XTSF41002 Negro-Black
XTSF41003 Blanco-White
Track length 1000 mm
XTSF42002 Negro-Black
XTSF 42003 Blanco-White
Track length 2000 mm
FINAL ALIMENTADOR POLARIDAD DERECHA-END FEED POLARITY RIGHT
XTS 112 Negro-Black
XTS 113 Blanco-White
FINAL ALIMENTADOR POLARIDAD IZQUIERDA-END FEED POLARITY LEFT
XTS 122 Negro-Black
XTS 123 Blanco-White
TAPA FINAL-END CAP
XTS 412 Negro-Black
XTS 413 Blanco-White
PLACA PARA CUBRIR EN CARRILES EMPOTRADOS -PLATE TO COVER IN RECESSED TRACKS
XTSF 102 Negro-Black XTS112-XTS122-XTS142
XTSF 103 Blanco-White XTS113-XTS123-XTS143
XTSF 302 Negro-Black
XTS342-XTS352-XTS362-XTS372-XTS382-XTS392-XTS402
XTSF 303 Blanco-White
XTS343-XTS353-XTS363-XTS373-XTS383-XTS393-XTS403
LEVA FIJACIÓN TECHO FUNDICIÓN PARA CARRILES SUPERFICIE-STANDARD CLAMP DIE CAST FOR SURFACE TRACK
SKB 122 Negro-Black
SKB 123 Blanco-White
KIT SUSPENSION CARRIL 1,5 M -SUSPENSION KIT 1,5 M
SPW11SK 215 length 1500 mm Negro-Black
SPW11SK 315 length 1500 mm Blanco-White
