224
225
LVD
DIM
Triac dimmer AC L input
AC Push switch L input
Power input -
Power input +
LED output +
AC Push switch N input
Triac dimmer AC N input
LED indicator
LED output -
Installation rack
AC PUSH
SWITCH
A1
A2
TRIAC DIMMER IN
40~220VAC
LED OUT
INPUT
12-48VDC
Potentiometer
CUT
PHASE
AC100-240V
Power Supply
12-48VDC
Constant Voltage
Single color LED strip
+
L
N
AC PUSH
SWITCH
A1
A2
TRIAC DIMMER IN
40~220VAC
LED OUT
INPUT
12-48VDC
AC100-240V
Power Supply
12-48VDC
Constant Voltage
Single color LED strip
+
L
N
AC PUSH
SWITCH
A1
A2
TRIAC DIMMER IN
40~220VAC
LED OUT
INPUT
12-48VDC
Permite la regulación de tiras led monocolor ( 12/24/36V) y
carriles magnéticos de 48V.
Puede regular con mecanismos TRIAC y mecanismos
pulsadores standard ( PUSH ).
Puedes conectar varios al mismo mecanismo PUSH ; puedes
conectar un PUSH y un TRIAC al mismo tiempo.
máx.entrada: 15A / máx.salida: 1 canal de 15A.
Protección contra sobrecargas eléctricas, cortocircuitos y
sobrecalentamiento.
Señal entrada regulador AC 40-220v.
Allows to control single color LED strips ( 12/24/36 V)
and 48V magnetic tracks.
Suitable for TRIAC controllers and standard PUSH
switches.
You may connect several to the same PUSH switch;
also you may connect PUSH switch and TRIAC
dimmer at the same time.
max.Input: 15A / max.Output : 1 channel -15A .
Protection against over current, short circuit & over
temperature
Input dimmig signal AC 40-220v.
Ref.
Imput-output
Voltage
Tipo de regulación
Control signal
Intensidad
máx.
de salida
Max output
current
Potencia máx.
de salida
Max output power
Tipo tira Led/magnetic
Led strip type/mag-
netic
Control a través de
Control made by
V
mA
A
12V 24V
36V 48V
Monocolor
Pulsador standard y/o
triac
8347
12-48VDC
PWM
PUSH
TRIAC
1CH,15A
180W 360W
540W 720W
MONOC.
DIM (1CH)
Standard push switch
and/or triac

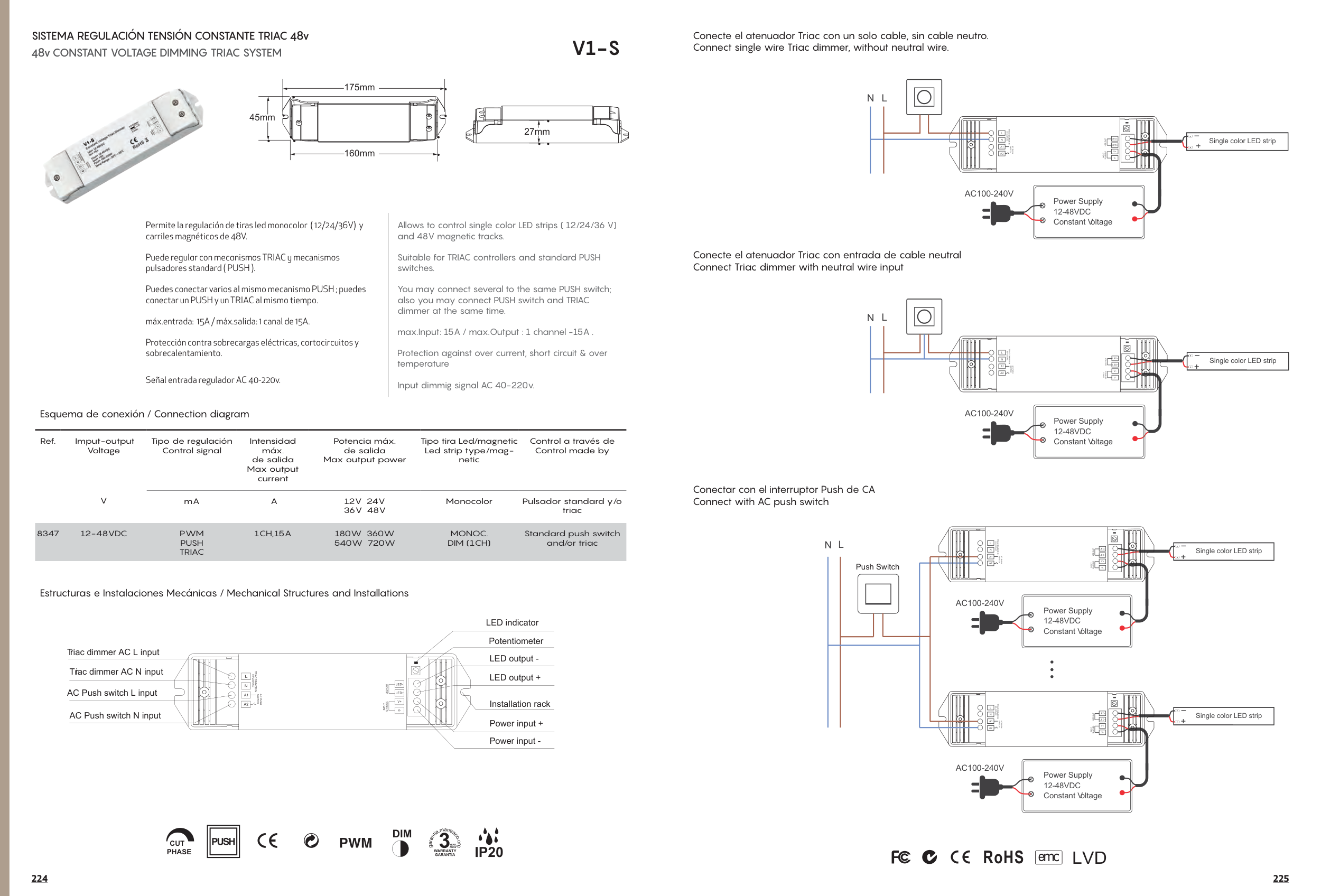

SISTEMA REGULACIÓN TENSIÓN CONSTANTE TRIAC 48v
48v CONSTANT VOLTAGE DIMMING TRIAC SYSTEM
Esquema de conexión / Connection diagram
V1-S
Estructuras e Instalaciones Mecánicas / Mechanical Structures and Installations
27mm
175mm
160mm
45mm
Conecte el atenuador Triac con un solo cable, sin cable neutro.
Connect single wire Triac dimmer, without neutral wire.
Conecte el atenuador Triac con entrada de cable neutral
Connect Triac dimmer with neutral wire input
Conectar con el interruptor Push de CA
Connect with AC push switch
AC100-240V
Power Supply
12-48VDC
Constant Voltage
Single color LED strip
+
L
N
AC PUSH
SWITCH
A1
A2
TRIAC DIMMER IN
40~220VAC
LED OUT
INPUT
12-48VDC
AC100-240V
Power Supply
12-48VDC
Constant Voltage
Single color LED strip
+
AC PUSH
SWITCH
A1
A2
TRIAC DIMMER IN
40~220VAC
LED OUT
INPUT
12-48VDC
Push Switch
