2
Cut&Connect
www.luznegra.net

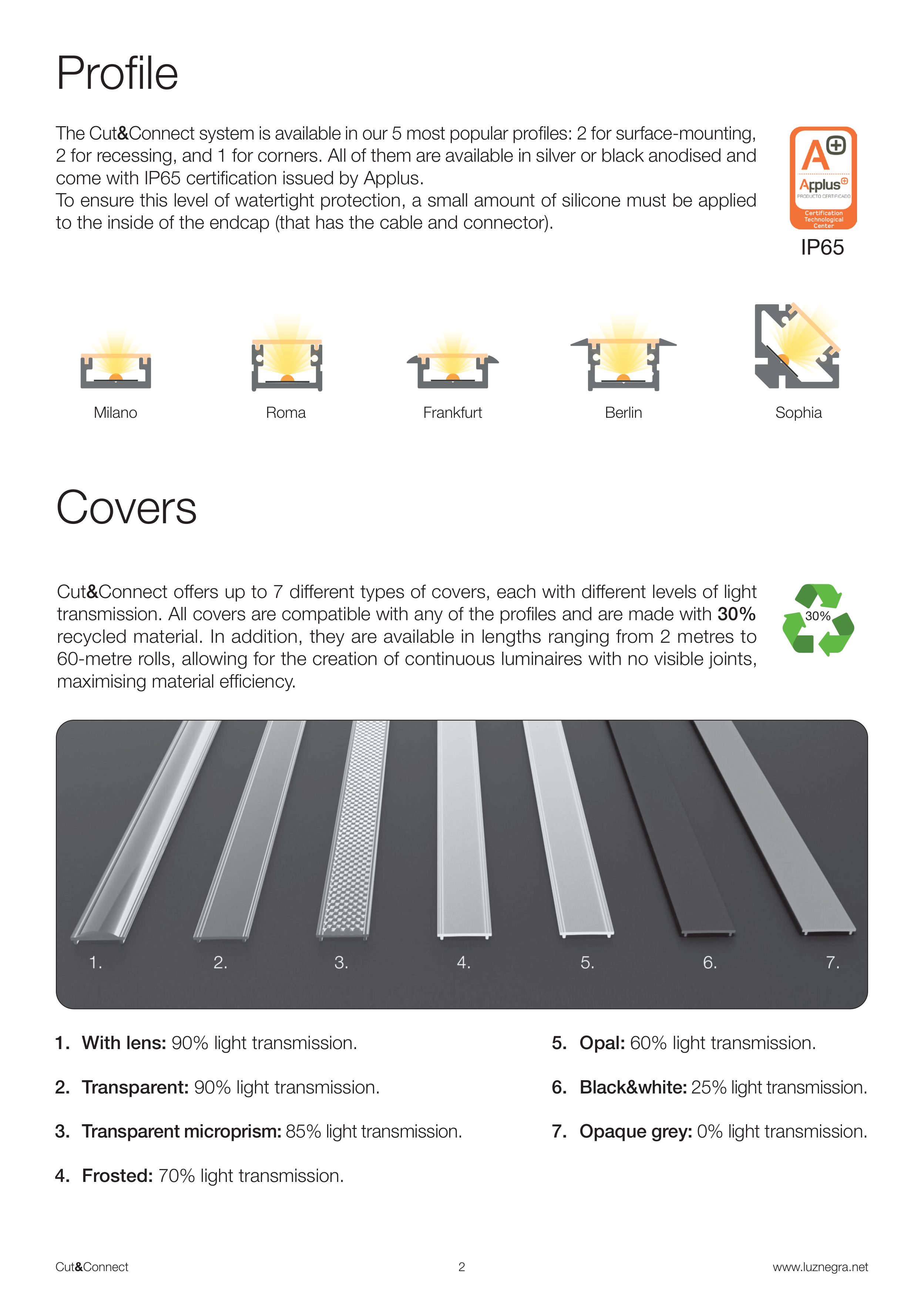

Profile
Covers
The Cut&Connect system is available in our 5 most popular profiles: 2 for surface-mounting,
2 for recessing, and 1 for corners. All of them are available in silver or black anodised and
come with IP65 certification issued by Applus.
To ensure this level of watertight protection, a small amount of silicone must be applied
to the inside of the endcap (that has the cable and connector).
With lens: 90% light transmission.
Transparent: 90% light transmission.
Transparent microprism: 85% light transmission.
Frosted: 70% light transmission.
1.
2.
3.
4.
5.
6.
7.
Opal: 60% light transmission.
Black&white: 25% light transmission.
Opaque grey: 0% light transmission.
Cut&Connect offers up to 7 different types of covers, each with different levels of light
transmission. All covers are compatible with any of the profiles and are made with 30%
recycled material. In addition, they are available in lengths ranging from 2 metres to
60-metre rolls, allowing for the creation of continuous luminaires with no visible joints,
maximising material efficiency.
Milano
Roma
Frankfurt
Berlin
Sophia
30%
IP65
