92

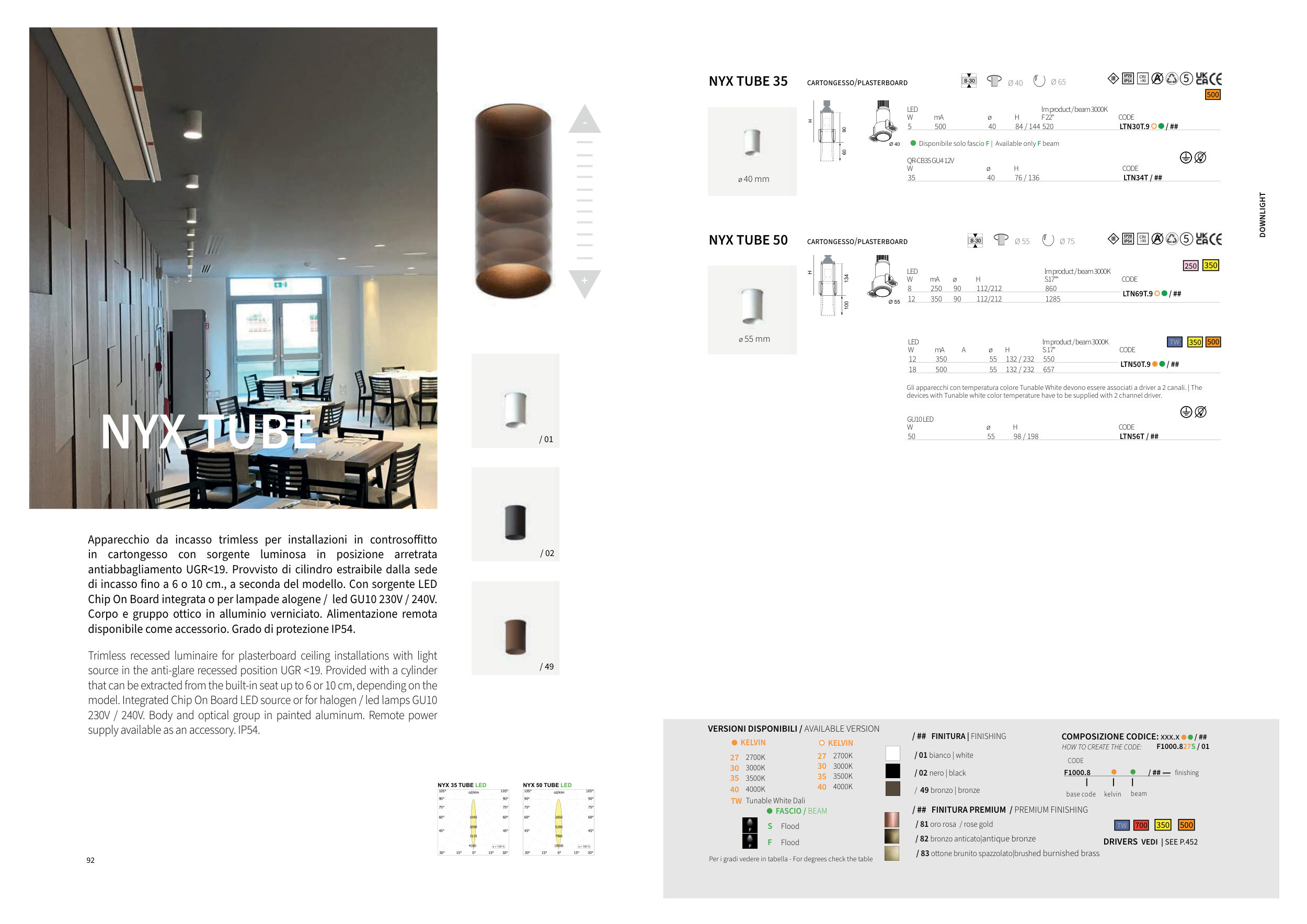

NYX TUBE
/ 02
/ 01
/ 49
-
+
NYX 50 TUBE LED
15°
30°
45°
60°
75°
90°
105°
105°
90°
75°
60°
45°
30°
15°
0°
cd/klm
η = 100 %
10500
2650
5200
7900
NYX 35 TUBE LED
15°
30°
45°
60°
75°
90°
105°
105°
90°
75°
60°
45°
30°
15°
0°
cd/klm
η = 100 %
4180
1045
2090
3135
Apparecchio da incasso trimless per installazioni in controsoffitto
in cartongesso con sorgente luminosa in posizione arretrata
antiabbagliamento UGR<19. Provvisto di cilindro estraibile dalla sede
di incasso fino a 6 o 10 cm., a seconda del modello. Con sorgente LED
Chip On Board integrata o per lampade alogene / led GU10 230V / 240V.
Corpo e gruppo ottico in alluminio verniciato. Alimentazione remota
disponibile come accessorio. Grado di protezione IP54.
Trimless recessed luminaire for plasterboard ceiling installations with light
source in the anti-glare recessed position UGR <19. Provided with a cylinder
that can be extracted from the built-in seat up to 6 or 10 cm, depending on the
model. Integrated Chip On Board LED source or for halogen / led lamps GU10
230V / 240V. Body and optical group in painted aluminum. Remote power
supply available as an accessory. IP54.
93
DOWNLIGHT
ø 40 mm
ø 55 mm
90
H
Ø 40
60
LED
lm product / beam 3000K
W
mA
ø
H
F 22°
CODE
5
500
40
84 / 144 520
LTN30T.9
/ ##
Ø 65
Ø 40
QR-CB35 GU4 12V
W
ø
H
CODE
35
40
76 / 136
LTN34T / ##
500
134
H
100
Ø 55
Ø 75
Ø 55
GU10 LED
W
ø
H
CODE
50
55
98 / 198
LTN56T / ##
LED
lm product / beam 3000K
W
mA
A
ø
H
S 17°
CODE
12
350
55
132 / 232
550
LTN50T.9
/ ##
18
500
55
132 / 232
657
350 500
Gli apparecchi con temperatura colore Tunable White devono essere associati a driver a 2 canali. | The
devices with Tunable white color temperature have to be supplied with 2 channel driver.
VERSIONI DISPONIBILI / AVAILABLE VERSION / ## FINITURA | FINISHING
/ 01 bianco | white
/ 02 nero | black
/ 49 bronzo | bronze
/ ## FINITURA PREMIUM / PREMIUM FINISHING
/ 81 oro rosa / rose gold
/ 82 bronzo anticato|antique bronze
/ 83 ottone brunito spazzolato|brushed burnished brass
FASCIO / BEAM
S Flood
F Flood
KELVIN
27
2700K
30
3000K
35
3500K
40
4000K
KELVIN
27
2700K
30
3000K
35
3500K
40
4000K
TW Tunable White Dali
CODE
F1000.8
/ ##
COMPOSIZIONE CODICE: xxx.x
/ ##
HOW TO CREATE THE CODE:
kelvin
base code
beam
finishing
F1000.827S / 01
Per i gradi vedere in tabella - For degrees check the table
700
CRI
>90
5
CARTONGESSO/PLASTERBOARD
8-30
CRI
>90
5
CARTONGESSO/PLASTERBOARD
8-30
NYX TUBE 35
NYX TUBE 50
TW
TW
Disponibile solo fascio F | Available only F beam
LED
lm product / beam 3000K
W
mA
ø
H
S17°°
CODE
8
250
90
112/212
860
LTN69T.9
/ ##
12
350
90
112/212
1285
350
250
DRIVERS VEDI | SEE P.452
500
350
