44
VERSIONI DISPONIBILI / AVAILABLE VERSION
/ ## FINITURA | FINISHING
/ 01 bianco - anello bianco | white - white ring
/ 02 nero - anello nero | black - black ring
/ 21 bianco - anello cromo | white - chrome ring
/ 25 nero - anello cromo | black - chrome ring
/ 28 bianco - anello nero | white - black ring
FASCIO / BEAM
S Spot 14°
F Flood 24°
W Wide 36°
KELVIN
27
2700K
30
3000K
35
3500K
40
4000K
COMPOSIZIONE CODICE: xxx.x
/ ##
HOW TO CREATE THE CODE:
finishing
F1000.827S / 01
kelvin
base code
beam
CODE
F1000.8
/ ##
ORIENTABILE MINIMAL
MINIMAL ADJUSTABLE
ORIENTABILE FRAME
FRAME ADJUSTABLE
FISSO MINIMAL | MINIMAL FIXED
FISSO FRAME | FRAME FIXED
FINITURA PREMIUM | PREMIUM FINISHING
81
82
83
700
900
DRIVERS VEDI | SEE P.452
44
01
02
21
25
28

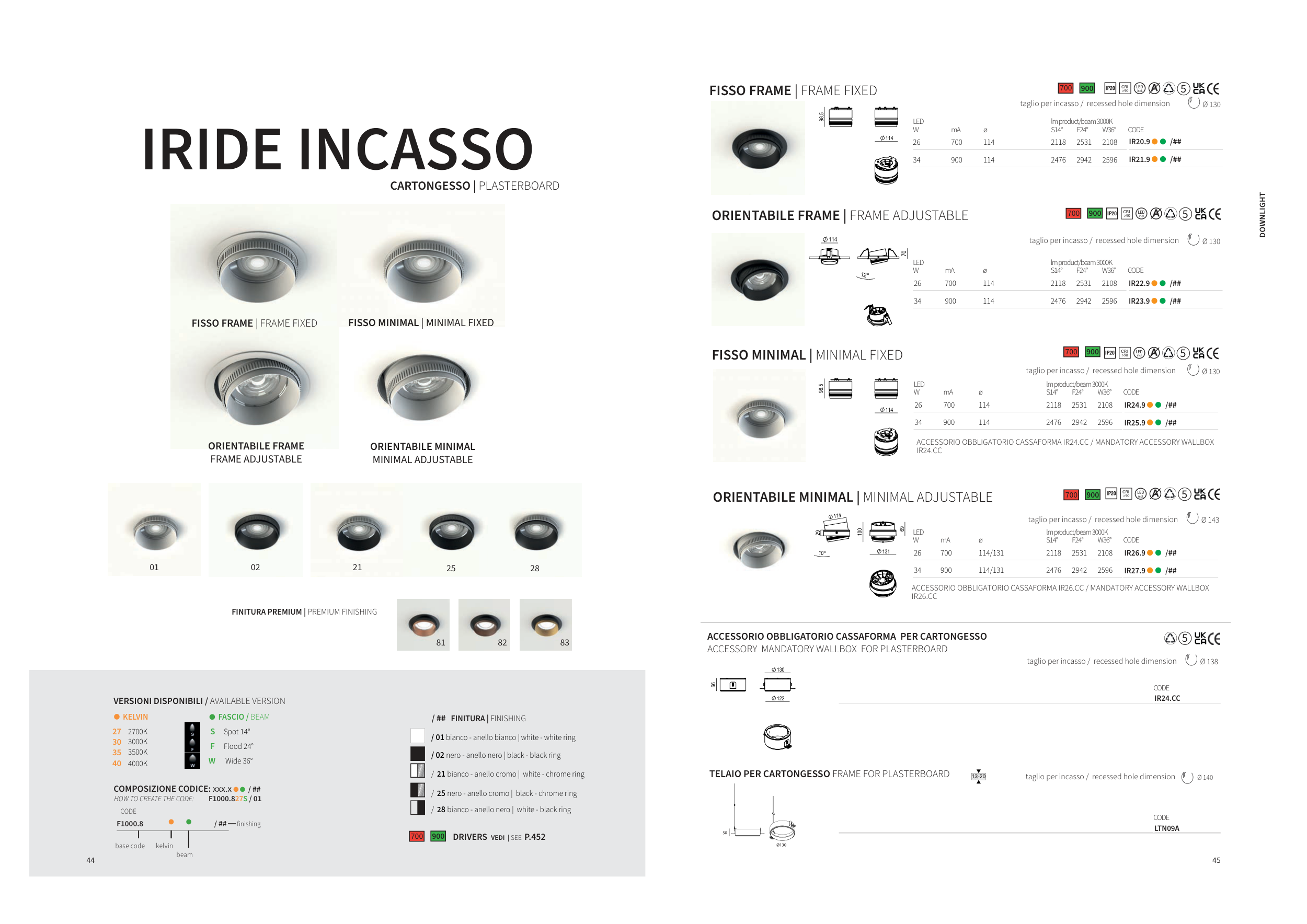

IRIDE INCASSO
CARTONGESSO | PLASTERBOARD
45
DOWNLIGHT
ORIENTABILE FRAME | FRAME ADJUSTABLE
CRI
>90
LED
incl.
5
ORIENTABILE MINIMAL | MINIMAL ADJUSTABLE
CRI
>90
LED
incl.
5
LED
lm product/beam 3000K
W
mA
ø
S14°
F24°
W36°
CODE
26
700
114
2118
2531
2108
IR22.9
/##
34
900
114
2476
2942
2596
IR23.9
/##
LED
lm product/beam 3000K
W
mA
ø
S14°
F24°
W36°
CODE
26
700
114/131
2118
2531
2108
IR26.9
/##
34
900
114/131
2476
2942
2596
IR27.9
/##
TELAIO PER CARTONGESSO FRAME FOR PLASTERBOARD
13-20
Ø 140
taglio per incasso / recessed hole dimension
ACCESSORIO OBBLIGATORIO CASSAFORMA IR24.CC / MANDATORY ACCESSORY WALLBOX
IR24.CC
ACCESSORIO OBBLIGATORIO CASSAFORMA IR26.CC / MANDATORY ACCESSORY WALLBOX
IR26.CC
700
900
700
900
700
900
700
900
Ø130
50
CRI
>90
LED
incl.
5
FISSO MINIMAL | MINIMAL FIXED
114
98,5
taglio per incasso / recessed hole dimension
Ø 130
12°
70
114
131
100
69
10°
29
114
CRI
>90
LED
incl.
5
FISSO FRAME | FRAME FIXED
114
98,5
taglio per incasso / recessed hole dimension
Ø 130
LED
lm product/beam 3000K
W
mA
ø
S14°
F24°
W36°
CODE
26
700
114
2118
2531
2108
IR20.9
/##
34
900
114
2476
2942
2596
IR21.9
/##
LED
lm product/beam 3000K
W
mA
ø
S14°
F24°
W36°
CODE
26
700
114
2118
2531
2108
IR24.9
/##
34
900
114
2476
2942
2596
IR25.9
/##
taglio per incasso / recessed hole dimension
Ø 130
taglio per incasso / recessed hole dimension
Ø 143
ACCESSORIO OBBLIGATORIO CASSAFORMA PER CARTONGESSO
ACCESSORY MANDATORY WALLBOX FOR PLASTERBOARD
130
122
66
5
CODE
IR24.CC
taglio per incasso / recessed hole dimension
Ø 138
CODE
LTN09A
