386
Trimless or trimmed recessed ceiling luminaires, fixed and adjustable, for accent or
diffused lighting. Light source in anti-glare recessed position. Available for plasterboard
installation or brick and concrete through the use of special outercases to be ordered
separately. Powered with integrated LED source or for GU10 230/240V light bulbs. Body
and optical group in painted aluminum. Remote power supply available as an accessory.
IP54
Apparecchi da incasso a soffitto trimless o con battuta, fissi ed orientabili, per
illuminazione d’accento o diffusa. Sorgente luminosa in posizione arretrata anti
abbagliamento. Disponibile nelle versioni per installazione in cartongesso o in laterizio
e calcestruzzo mediante l’utilizzo di apposite controcasse ordinabili come accessorio.
Disponibili con sorgente LED integrata o per lampade GU10 230/240V. Corpo e gruppo
ottico in alluminio verniciato. Alimentatore remoto disponibile come accessorio. Grado
di protezione IP54

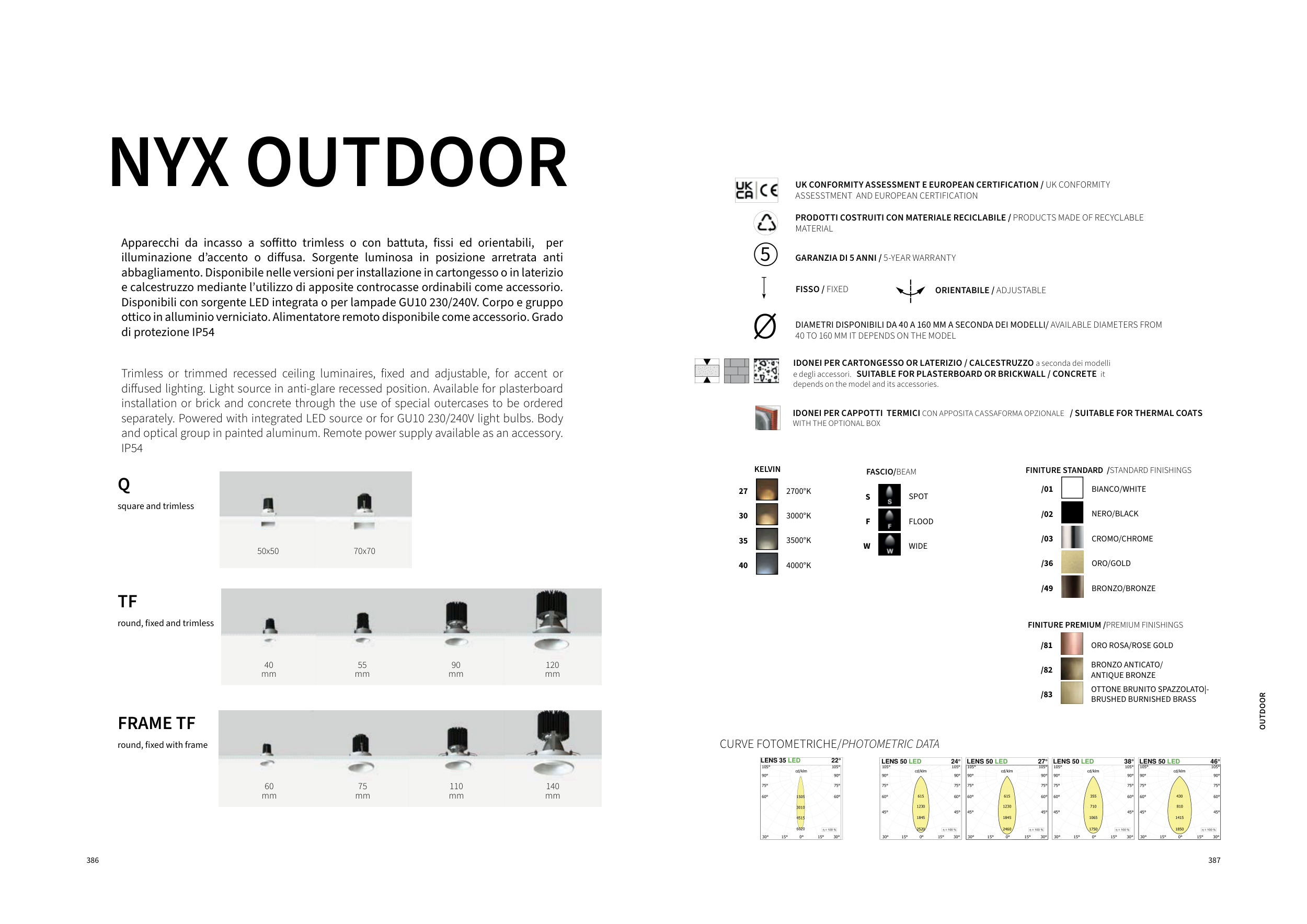

NYX OUTDOOR
FRAME TF
round, fixed with frame
TF
round, fixed and trimless
Q
square and trimless
50x50
70x70
40
mm
55
mm
90
mm
120
mm
60
mm
75
mm
110
mm
140
mm
387
OUTDOOR
PRODOTTI COSTRUITI CON MATERIALE RECICLABILE / PRODUCTS MADE OF RECYCLABLE
MATERIAL
GARANZIA DI 5 ANNI / 5-YEAR WARRANTY
UK CONFORMITY ASSESSMENT E EUROPEAN CERTIFICATION / UK CONFORMITY
ASSESSTMENT AND EUROPEAN CERTIFICATION
5
FISSO / FIXED
ORIENTABILE / ADJUSTABLE
CURVE FOTOMETRICHE/PHOTOMETRIC DATA
LENS 50 LED
38°
355
710
1065
1750
15°
30°
45°
60°
75°
90°
105°
105°
75°
60°
45°
30°
15°
���������
90°
0°
cd/klm
LENS 50 LED
24°
615
1230
1845
2520
15°
30°
45°
60°
75°
90°
105°
105°
75°
60°
45°
30°
15°
���������
90°
0°
cd/klm
LENS 50 LED
46°
430
810
1415
1850
15°
30°
45°
60°
75°
90°
105°
105°
75°
60°
45°
30°
15°
���������
90°
0°
cd/klm
LENS 50 LED
27°
615
1230
1845
2460
15°
30°
45°
60°
75°
90°
105°
105°
75°
60°
45°
30°
15°
���������
90°
0°
cd/klm
1505
3010
4515
6020
LENS 35 LED
22°
15°
30°
60°
75°
90°
105°
105°
90°
75°
60°
30°
15°
0°
cd/klm
���������
ø
DIAMETRI DISPONIBILI DA 40 A 160 MM A SECONDA DEI MODELLI/ AVAILABLE DIAMETERS FROM
40 TO 160 MM IT DEPENDS ON THE MODEL
IDONEI PER CARTONGESSO OR LATERIZIO / CALCESTRUZZO a seconda dei modelli
e degli accessori. SUITABLE FOR PLASTERBOARD OR BRICKWALL / CONCRETE it
depends on the model and its accessories.
FINITURE STANDARD /STANDARD FINISHINGS
/01
BIANCO/WHITE
/02
NERO/BLACK
/03
CROMO/CHROME
/36
ORO/GOLD
/49
BRONZO/BRONZE
FINITURE PREMIUM /PREMIUM FINISHINGS
/81
ORO ROSA/ROSE GOLD
/82
BRONZO ANTICATO/
ANTIQUE BRONZE
/83
OTTONE BRUNITO SPAZZOLATO|-
BRUSHED BURNISHED BRASS
KELVIN
27
2700°K
30
3000°K
35
3500°K
40
4000°K
IDONEI PER CAPPOTTI TERMICI CON APPOSITA CASSAFORMA OPZIONALE / SUITABLE FOR THERMAL COATS
WITH THE OPTIONAL BOX
FASCIO/BEAM
S
SPOT
F
FLOOD
W
WIDE
