OUTDOOR

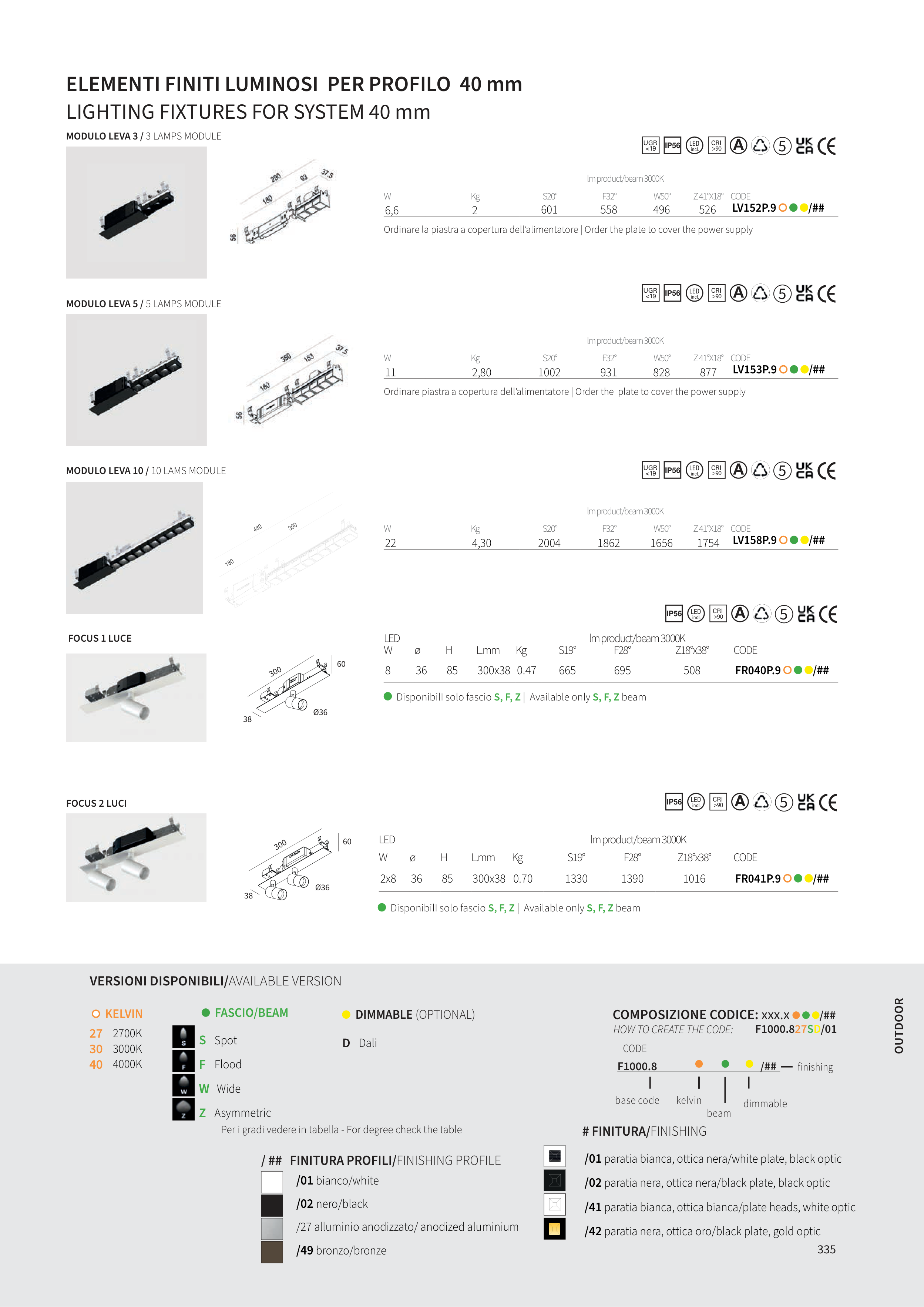

ELEMENTI FINITI LUMINOSI PER PROFILO 40 mm
LIGHTING FIXTURES FOR SYSTEM 40 mm
MODULO LEVA 10 / 10 LAMS MODULE
MODULO LEVA 5 / 5 LAMPS MODULE
MODULO LEVA 3 / 3 LAMPS MODULE
lm product/beam 3000K
W
Kg
S20°
F32°
W50°
Z 41°X18° CODE
6,6
2
601
558
496
526
LV152P.9
/##
lm product/beam 3000K
W
Kg
S20°
F32°
W50°
Z 41°X18° CODE
11
2,80
1002
931
828
877
LV153P.9
/##
lm product/beam 3000K
W
Kg
S20°
F32°
W50°
Z 41°X18° CODE
22
4,30
2004
1862
1656
1754
LV158P.9
/##
UGR
<19
IP56
LED
incl.
CRI
>90
5
UGR
<19
IP56
LED
incl.
CRI
>90
5
UGR
<19
IP56
LED
incl.
CRI
>90
5
Ordinare la piastra a copertura dell’alimentatore | Order the plate to cover the power supply
Ordinare piastra a copertura dell’alimentatore | Order the plate to cover the power supply
DIMMABLE (OPTIONAL)
D Dali
FASCIO/BEAM
S Spot
F Flood
W Wide
Z Asymmetric
VERSIONI DISPONIBILI/AVAILABLE VERSION
KELVIN
27
2700K
30
3000K
40
4000K
Per i gradi vedere in tabella - For degree check the table
# FINITURA/FINISHING
/01 paratia bianca, ottica nera/white plate, black optic
/02 paratia nera, ottica nera/black plate, black optic
/41 paratia bianca, ottica bianca/plate heads, white optic
/42 paratia nera, ottica oro/black plate, gold optic
COMPOSIZIONE CODICE: xxx.x
/##
HOW TO CREATE THE CODE:
finishing
F1000.827SD/01
kelvin
base code
dimmable
beam
CODE
F1000.8
/##
LED
lm product/beam 3000K
W
ø
H
L.mm
Kg
S19°
F28°
Z18°x38°
CODE
8
36
85
300x38 0.47
665
695
508
FR040P.9
/##
LED
lm product/beam 3000K
W
ø
H
L.mm
Kg
S19°
F28°
Z18°x38°
CODE
2x8
36
85
300x38 0.70
1330
1390
1016
FR041P.9
/##
DisponibilI solo fascio S, F, Z | Available only S, F, Z beam
DisponibilI solo fascio S, F, Z | Available only S, F, Z beam
IP56
LED
incl.
CRI
>90
5
IP56
LED
incl.
CRI
>90
5
FOCUS 1 LUCE
FOCUS 2 LUCI
OUTDOOR
38
300
60
Ø36
38
300
60
Ø36
180
300
480
/ ## FINITURA PROFILI/FINISHING PROFILE
/01 bianco/white
/02 nero/black
/27 alluminio anodizzato/ anodized aluminium
/49 bronzo/bronze
