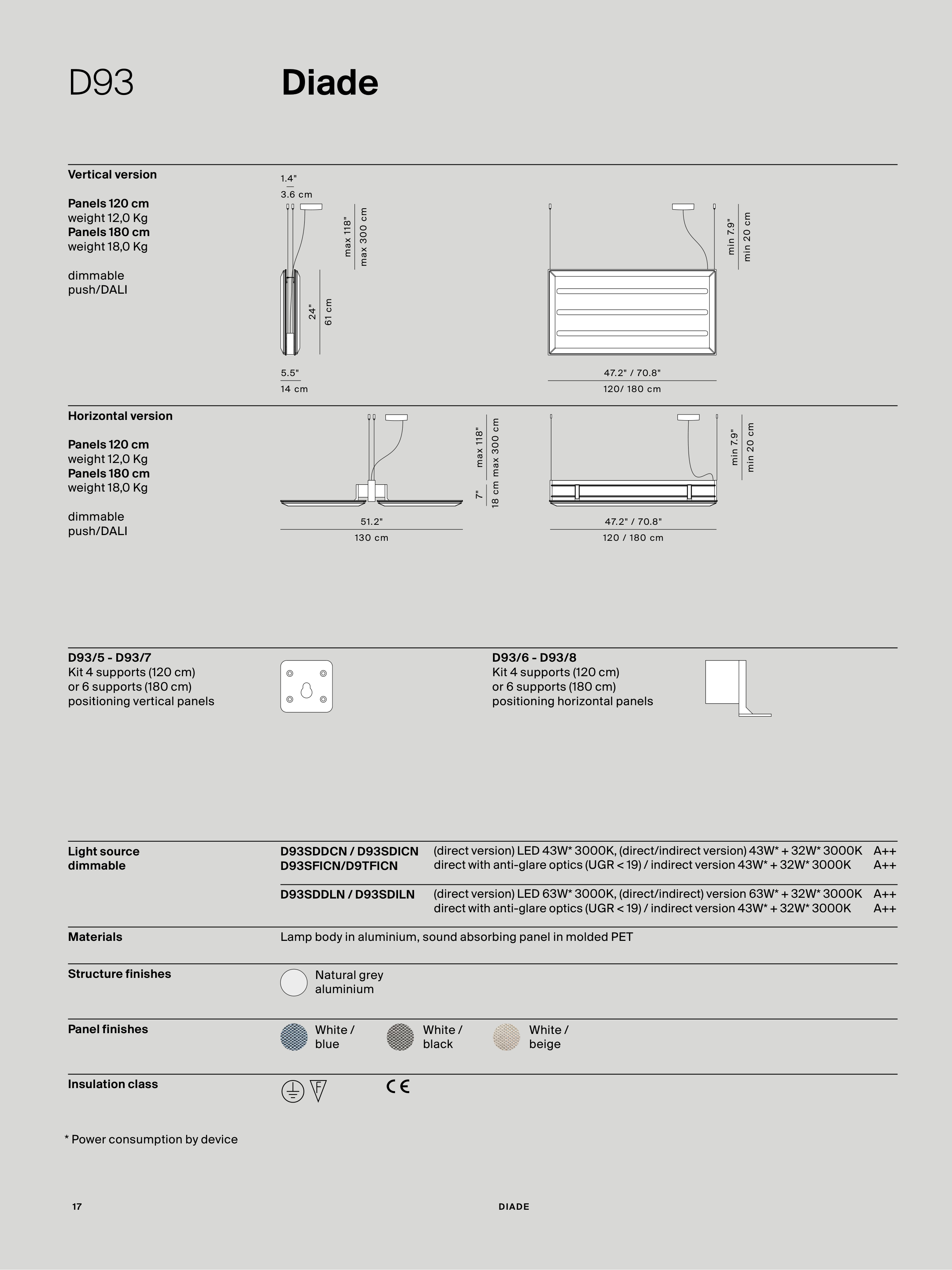

DIADE
17
D93
Diade
24"
61 cm
max 118"
max 300 cm
max 118"
max 300 cm
min 7.9"
min 20 cm
7"
18 cm
min 7.9"
min 20 cm
1.4"
3.6 cm
47.2" / 70.8"
120/ 180 cm
51.2"
130 cm
47.2" / 70.8"
120 / 180 cm
5.5"
14 cm
Vertical version
Panels 120 cm
weight 12,0 Kg
Panels 180 cm
weight 18,0 Kg
dimmable
push/DALI
Horizontal version
Panels 120 cm
weight 12,0 Kg
Panels 180 cm
weight 18,0 Kg
dimmable
push/DALI
D93/5 - D93/7
Kit 4 supports (120 cm)
or 6 supports (180 cm)
positioning vertical panels
Light source
dimmable
Materials
Structure finishes
Panel finishes
Insulation class
Lamp body in aluminium, sound absorbing panel in molded PET
D93SDDCN / D93SDICN
D93SFICN/D9TFICN
D93SDDLN / D93SDILN
Natural grey
aluminium
White /
blue
White /
black
White /
beige
(direct version) LED 43W* 3000K, (direct/indirect version) 43W* + 32W* 3000K A++
direct with anti-glare optics (UGR < 19) / indirect version 43W* + 32W* 3000K
A++
(direct version) LED 63W* 3000K, (direct/indirect) version 63W* + 32W* 3000K A++
direct with anti-glare optics (UGR < 19) / indirect version 43W* + 32W* 3000K
A++
* Power consumption by device
D93/6 - D93/8
Kit 4 supports (120 cm)
or 6 supports (180 cm)
positioning horizontal panels
