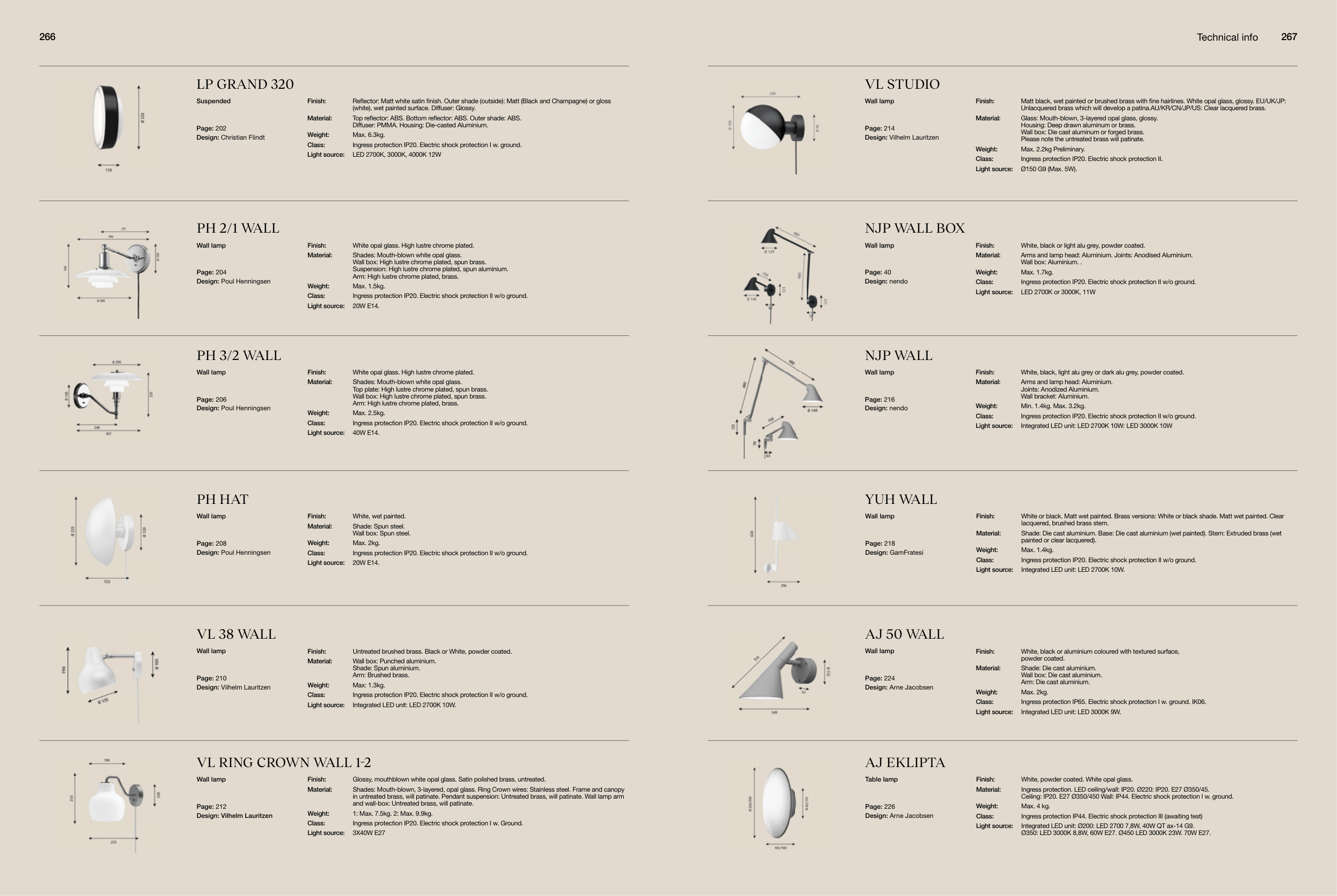

Technical info
PH 3/2 WALL
Wall lamp
Page: 206
Design: Poul Henningsen
Finish:
White opal glass. High lustre chrome plated.
Material:
Shades: Mouth-blown white opal glass.
Top plate: High lustre chrome plated, spun brass.
Wall box: High lustre chrome plated, spun brass.
Arm: High lustre chrome plated, brass.
Weight:
Max. 2.5kg.
Class:
Ingress protection IP20. Electric shock protection II w/o ground.
Light source:
40W E14.
PH HAT
Wall lamp
Page: 208
Design: Poul Henningsen
Finish:
White, wet painted.
Material:
Shade: Spun steel.
Wall box: Spun steel.
Weight:
Max. 2kg.
Class:
Ingress protection IP20. Electric shock protection II w/o ground.
Light source:
20W E14.
VL 38 WALL
Wall lamp
Page: 210
Design: Vilhelm Lauritzen
Finish:
Untreated brushed brass. Black or White, powder coated.
Material:
Wall box: Punched aluminium.
Shade: Spun aluminium.
Arm: Brushed brass.
Weight:
Max: 1.3kg.
Class:
Ingress protection IP20. Electric shock protection II w/o ground.
Light source:
Integrated LED unit: LED 2700K 10W.
YUH WALL
Wall lamp
Page: 218
Design: GamFratesi
Finish:
White or black. Matt wet painted. Brass versions: White or black shade. Matt wet painted. Clear
lacquered, brushed brass stem.
Material:
Shade: Die cast aluminium. Base: Die cast aluminium (wet painted). Stem: Extruded brass (wet
painted or clear lacquered).
Weight:
Max. 1.4kg.
Class:
Ingress protection IP20. Electric shock protection II w/o ground.
Light source:
Integrated LED unit: LED 2700K 10W.
NJP WALL
Wall lamp
Page: 216
Design: nendo
Finish:
White, black, light alu grey or dark alu grey, powder coated.
Material:
Arms and lamp head: Aluminium.
Joints: Anodized Aluminium.
Wall bracket: Aluminium.
Weight:
Min. 1.4kg. Max. 3.2kg.
Class:
Ingress protection IP20. Electric shock protection II w/o ground.
Light source:
Integrated LED unit: LED 2700K 10W: LED 3000K 10W
VL STUDIO
Wall lamp
Page: 214
Design: Vilhelm Lauritzen
Finish:
Matt black, wet painted or brushed brass with fi ne hairlines. White opal glass, glossy. EU/UK/JP:
Unlacquered brass which will develop a patina.AU/KR/CN/JP/US: Clear lacquered brass.
Material:
Glass: Mouth-blown, 3-layered opal glass, glossy.
Housing: Deep drawn aluminum or brass.
Wall box: Die cast aluminum or forged brass.
Please note the untreated brass will patinate.
Weight:
Max. 2.2kg Preliminary.
Class:
Ingress protection IP20. Electric shock protection II.
Light source:
Ø150 G9 (Max. 5W).
NJP WALL BOX
Wall lamp
Page: 40
Design: nendo
Finish:
White, black or light alu grey, powder coated.
Material:
Arms and lamp head: Aluminium. Joints: Anodised Aluminium.
Wall box: Aluminium. .
Weight:
Max. 1.7kg.
Class:
Ingress protection IP20. Electric shock protection II w/o ground.
Light source:
LED 2700K or 3000K, 11W
VL RING CROWN WALL 1-2
Wall lamp
Page: 212
Design: Vilhelm Lauritzen
Finish:
Glossy, mouthblown white opal glass. Satin polished brass, untreated.
Material:
Shades: Mouth-blown, 3-layered, opal glass. Ring Crown wires: Stainless steel. Frame and canopy
in untreated brass, will patinate. Pendant suspension: Untreated brass, will patinate. Wall lamp arm
and wall-box: Untreated brass, will patinate.
Weight:
1: Max. 7.5kg. 2: Max. 9.9kg.
Class:
Ingress protection IP20. Electric shock protection I w. Ground.
Light source:
3X40W E27
AJ EKLIPTA
Table lamp
Page: 226
Design: Arne Jacobsen
Finish:
White, powder coated. White opal glass.
Material:
Ingress protection. LED ceiling/wall: IP20. Ø220: IP20. E27 Ø350/45.
Ceiling: IP20. E27 Ø350/450 Wall: IP44. Electric shock protection I w. ground.
Weight:
Max. 4 kg.
Class:
Ingress protection IP44. Electric shock protection III (awaiting test)
Light source:
Integrated LED unit: Ø200: LED 2700 7,8W, 40W QT ax-14 G9.
Ø350: LED 3000K 8,8W, 60W E27. Ø450 LED 3000K 23W. 70W E27.
AJ 50 WALL
Wall lamp
Page: 224
Design: Arne Jacobsen
Finish:
White, black or aluminium coloured with textured surface,
powder coated.
Material:
Shade: Die cast aluminium.
Wall box: Die cast aluminium.
Arm: Die cast aluminium.
Weight:
Max. 2kg.
Class:
Ingress protection IP65. Electric shock protection I w. ground. IK06.
Light source:
Integrated LED unit: LED 3000K 9W.
PH 2/1 WALL
Wall lamp
Page: 204
Design: Poul Henningsen
Finish:
White opal glass. High lustre chrome plated.
Material:
Shades: Mouth-blown white opal glass.
Wall box: High lustre chrome plated, spun brass.
Suspension: High lustre chrome plated, spun aluminium.
Arm: High lustre chrome plated, brass.
Weight:
Max. 1.5kg.
Class:
Ingress protection IP20. Electric shock protection II w/o ground.
Light source:
20W E14.
LP GRAND 320
Suspended
Page: 202
Design: Christian Flindt
Finish:
Refl ector: Matt white satin fi nish. Outer shade (outside): Matt (Black and Champagne) or gloss
(white), wet painted surface. Diffuser: Glossy.
Material:
Top refl ector: ABS. Bottom refl ector: ABS. Outer shade: ABS.
Diffuser: PMMA. Housing: Die-casted Aluminium.
Weight:
Max. 6.3kg.
Class:
Ingress protection IP20. Electric shock protection I w. ground.
Light source:
LED 2700K, 3000K, 4000K 12W
267
266
