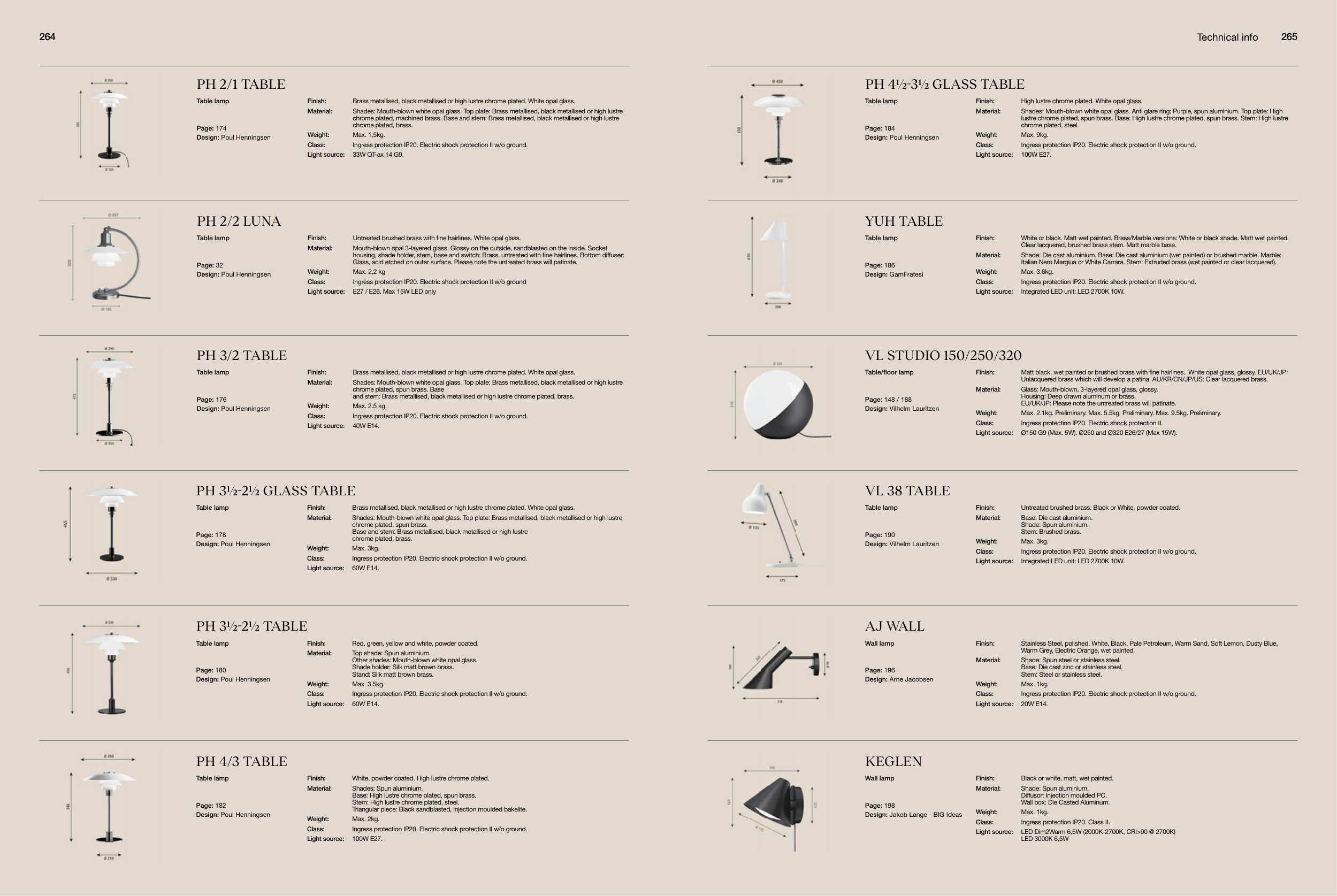

Technical info
PH 3/2 TABLE
Table lamp
Page: 176
Design: Poul Henningsen
Finish:
Brass metallised, black metallised or high lustre chrome plated. White opal glass.
Material:
Shades: Mouth-blown white opal glass. Top plate: Brass metallised, black metallised or high lustre
chrome plated, spun brass. Base
and stem: Brass metallised, black metallised or high lustre chrome plated, brass.
Weight:
Max. 2.5 kg.
Class:
Ingress protection IP20. Electric shock protection II w/o ground.
Light source:
40W E14.
PH 3½-2½ TABLE
Table lamp
Page: 180
Design: Poul Henningsen
Finish:
Red, green, yellow and white, powder coated.
Material:
Top shade: Spun aluminium.
Other shades: Mouth-blown white opal glass.
Shade holder: Silk matt brown brass.
Stand: Silk matt brown brass.
Weight:
Max. 3.5kg.
Class:
Ingress protection IP20. Electric shock protection II w/o ground.
Light source:
60W E14.
PH 2/2 LUNA
Table lamp
Page: 32
Design: Poul Henningsen
Finish:
Untreated brushed brass with fi ne hairlines. White opal glass.
Material:
Mouth-blown opal 3-layered glass. Glossy on the outside, sandblasted on the inside. Socket
housing, shade holder, stem, base and switch: Brass, untreated with fi ne hairlines. Bottom diffuser:
Glass, acid etched on outer surface. Please note the untreated brass will patinate.
Weight:
Max. 2,2 kg
Class:
Ingress protection IP20. Electric shock protection II w/o ground
Light source:
E27 / E26. Max 15W LED only
PH 3½-2½ GLASS TABLE
Table lamp
Page: 178
Design: Poul Henningsen
Finish:
Brass metallised, black metallised or high lustre chrome plated. White opal glass.
Material:
Shades: Mouth-blown white opal glass. Top plate: Brass metallised, black metallised or high lustre
chrome plated, spun brass.
Base and stem: Brass metallised, black metallised or high lustre
chrome plated, brass.
Weight:
Max. 3kg.
Class:
Ingress protection IP20. Electric shock protection II w/o ground.
Light source:
60W E14.
PH 4/3 TABLE
Table lamp
Page: 182
Design: Poul Henningsen
Finish:
White, powder coated. High lustre chrome plated.
Material:
Shades: Spun aluminium.
Base: High lustre chrome plated, spun brass.
Stem: High lustre chrome plated, steel.
Triangular piece: Black sandblasted, injection moulded bakelite.
Weight:
Max. 2kg.
Class:
Ingress protection IP20. Electric shock protection II w/o ground.
Light source:
100W E27.
PH 4½-3½ GLASS TABLE
Table lamp
Page: 184
Design: Poul Henningsen
Finish:
High lustre chrome plated. White opal glass.
Material:
Shades: Mouth-blown white opal glass. Anti glare ring: Purple, spun aluminium. Top plate: High
lustre chrome plated, spun brass. Base: High lustre chrome plated, spun brass. Stem: High lustre
chrome plated, steel.
Weight:
Max. 9kg.
Class:
Ingress protection IP20. Electric shock protection II w/o ground.
Light source:
100W E27.
VL STUDIO 150/250/320
Table/fl oor lamp
Page: 148 / 188
Design: Vilhelm Lauritzen
Finish:
Matt black, wet painted or brushed brass with fi ne hairlines. White opal glass, glossy. EU/UK/JP:
Unlacquered brass which will develop a patina. AU/KR/CN/JP/US: Clear lacquered brass.
Material:
Glass: Mouth-blown, 3-layered opal glass, glossy.
Housing: Deep drawn aluminum or brass.
EU/UK/JP: Please note the untreated brass will patinate.
Weight:
Max. 2.1kg. Preliminary. Max. 5.5kg. Preliminary. Max. 9.5kg. Preliminary.
Class:
Ingress protection IP20. Electric shock protection II.
Light source:
Ø150 G9 (Max. 5W). Ø250 and Ø320 E26/27 (Max 15W).
YUH TABLE
Table lamp
Page: 186
Design: GamFratesi
Finish:
White or black. Matt wet painted. Brass/Marble versions: White or black shade. Matt wet painted.
Clear lacquered, brushed brass stem. Matt marble base.
Material:
Shade: Die cast aluminium. Base: Die cast aluminium (wet painted) or brushed marble. Marble:
Italian Nero Margiua or White Carrara. Stem: Extruded brass (wet painted or clear lacquered).
Weight:
Max. 3.6kg.
Class:
Ingress protection IP20. Electric shock protection II w/o ground.
Light source:
Integrated LED unit: LED 2700K 10W.
VL 38 TABLE
Table lamp
Page: 190
Design: Vilhelm Lauritzen
Finish:
Untreated brushed brass. Black or White, powder coated.
Material:
Base: Die cast aluminium.
Shade: Spun aluminium.
Stem: Brushed brass.
Weight:
Max. 3kg.
Class:
Ingress protection IP20. Electric shock protection II w/o ground.
Light source:
Integrated LED unit: LED 2700K 10W.
AJ WALL
Wall lamp
Page: 196
Design: Arne Jacobsen
Finish:
Stainless Steel, polished. White, Black, Pale Petroleum, Warm Sand, Soft Lemon, Dusty Blue,
Warm Grey, Electric Orange, wet painted.
Material:
Shade: Spun steel or stainless steel.
Base: Die cast zinc or stainless steel.
Stem: Steel or stainless steel.
Weight:
Max. 1kg.
Class:
Ingress protection IP20. Electric shock protection II w/o ground.
Light source:
20W E14.
KEGLEN
Wall lamp
Page: 198
Design: Jakob Lange - BIG Ideas
Finish:
Black or white, matt, wet painted.
Material:
Shade: Spun aluminium.
Diffusor: Injection moulded PC.
Wall box: Die Casted Aluminum.
Weight:
Max. 1kg.
Class:
Ingress protection IP20. Class II.
Light source:
LED Dim2Warm 6,5W (2000K-2700K, CRI>90 @ 2700K)
LED 3000K 6,5W
PH 2/1 TABLE
Table lamp
Page: 174
Design: Poul Henningsen
Finish:
Brass metallised, black metallised or high lustre chrome plated. White opal glass.
Material:
Shades: Mouth-blown white opal glass. Top plate: Brass metallised, black metallised or high lustre
chrome plated, machined brass. Base and stem: Brass metallised, black metallised or high lustre
chrome plated, brass.
Weight:
Max. 1,5kg.
Class:
Ingress protection IP20. Electric shock protection II w/o ground.
Light source:
33W QT-ax 14 G9.
