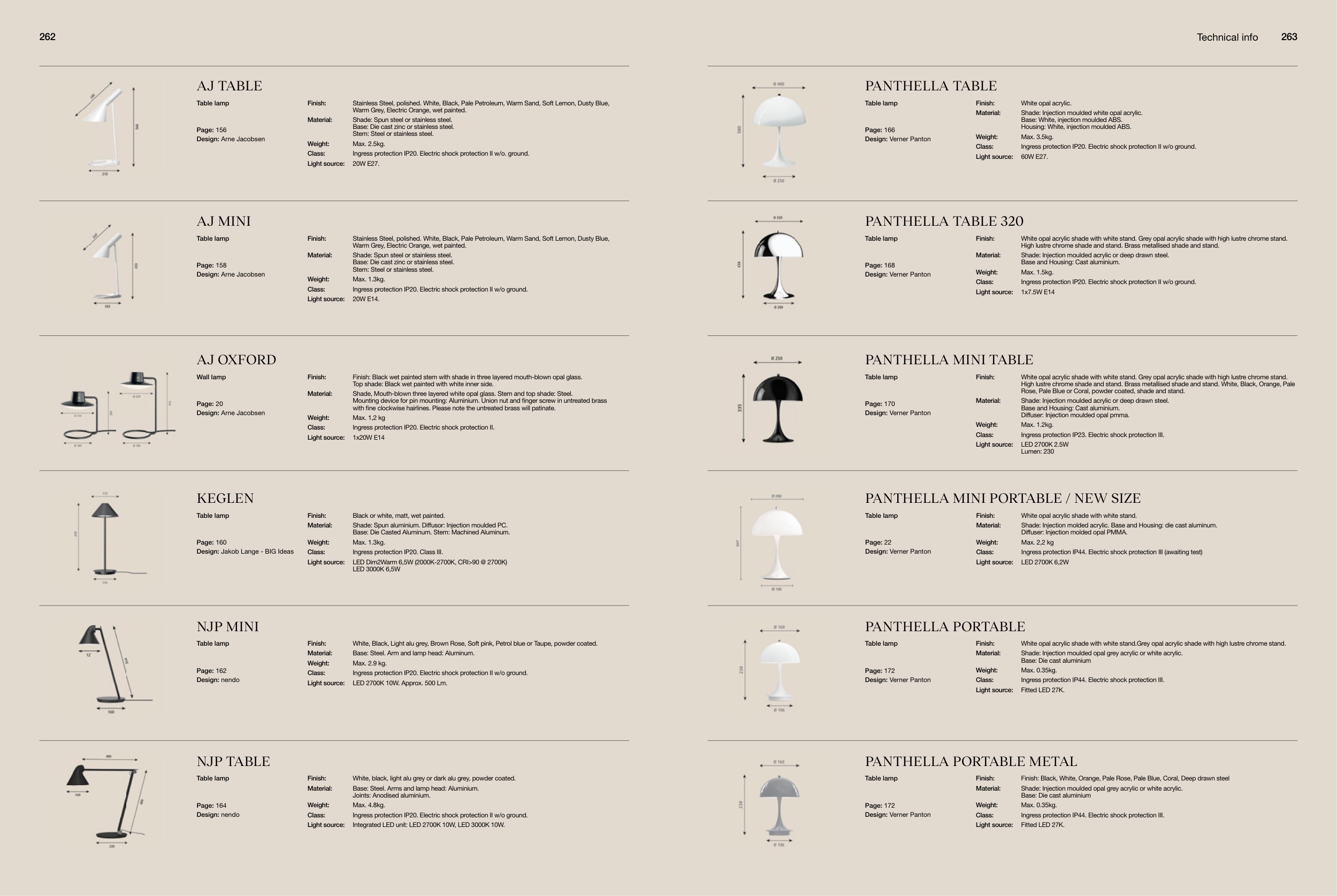

Technical info
NJP MINI
Table lamp
Page: 162
Design: nendo
Finish:
White, Black, Light alu grey, Brown Rose, Soft pink, Petrol blue or Taupe, powder coated.
Material:
Base: Steel. Arm and lamp head: Aluminum.
Weight:
Max. 2.9 kg.
Class:
Ingress protection IP20. Electric shock protection II w/o ground.
Light source:
LED 2700K 10W. Approx. 500 Lm.
PANTHELLA TABLE
Table lamp
Page: 166
Design: Verner Panton
Finish:
White opal acrylic.
Material:
Shade: Injection moulded white opal acrylic.
Base: White, injection moulded ABS.
Housing: White, injection moulded ABS.
Weight:
Max. 3.5kg.
Class:
Ingress protection IP20. Electric shock protection II w/o ground.
Light source:
60W E27.
AJ TABLE
Table lamp
Page: 156
Design: Arne Jacobsen
Finish:
Stainless Steel, polished. White, Black, Pale Petroleum, Warm Sand, Soft Lemon, Dusty Blue,
Warm Grey, Electric Orange, wet painted.
Material:
Shade: Spun steel or stainless steel.
Base: Die cast zinc or stainless steel.
Stem: Steel or stainless steel.
Weight:
Max. 2.5kg.
Class:
Ingress protection IP20. Electric shock protection II w/o. ground.
Light source:
20W E27.
PANTHELLA TABLE 320
Table lamp
Page: 168
Design: Verner Panton
Finish:
White opal acrylic shade with white stand. Grey opal acrylic shade with high lustre chrome stand.
High lustre chrome shade and stand. Brass metallised shade and stand.
Material:
Shade: Injection moulded acrylic or deep drawn steel.
Base and Housing: Cast aluminium.
Weight:
Max. 1.5kg.
Class:
Ingress protection IP20. Electric shock protection II w/o ground.
Light source:
1x7.5W E14
AJ MINI
Table lamp
Page: 158
Design: Arne Jacobsen
Finish:
Stainless Steel, polished. White, Black, Pale Petroleum, Warm Sand, Soft Lemon, Dusty Blue,
Warm Grey, Electric Orange, wet painted.
Material:
Shade: Spun steel or stainless steel.
Base: Die cast zinc or stainless steel.
Stem: Steel or stainless steel.
Weight:
Max. 1.3kg.
Class:
Ingress protection IP20. Electric shock protection II w/o ground.
Light source:
20W E14.
KEGLEN
Table lamp
Page: 160
Design: Jakob Lange - BIG Ideas
Finish:
Black or white, matt, wet painted.
Material:
Shade: Spun aluminium. Diffusor: Injection moulded PC.
Base: Die Casted Aluminum. Stem: Machined Aluminum.
Weight:
Max. 1.3kg.
Class:
Ingress protection IP20. Class III.
Light source:
LED Dim2Warm 6,5W (2000K-2700K, CRI>90 @ 2700K)
LED 3000K 6,5W
NJP TABLE
Table lamp
Page: 164
Design: nendo
Finish:
White, black, light alu grey or dark alu grey, powder coated.
Material:
Base: Steel. Arms and lamp head: Aluminium.
Joints: Anodised aluminium.
Weight:
Max. 4.8kg.
Class:
Ingress protection IP20. Electric shock protection II w/o ground.
Light source:
Integrated LED unit: LED 2700K 10W, LED 3000K 10W.
PANTHELLA MINI TABLE
Table lamp
Page: 170
Design: Verner Panton
Finish:
White opal acrylic shade with white stand. Grey opal acrylic shade with high lustre chrome stand.
High lustre chrome shade and stand. Brass metallised shade and stand. White, Black, Orange, Pale
Rose, Pale Blue or Coral, powder coated, shade and stand.
Material:
Shade: Injection moulded acrylic or deep drawn steel.
Base and Housing: Cast aluminium.
Diffuser: Injection moulded opal pmma.
Weight:
Max. 1.2kg.
Class:
Ingress protection IP23. Electric shock protection III.
Light source:
LED 2700K 2.5W
Lumen: 230
PANTHELLA PORTABLE
Table lamp
Page: 172
Design: Verner Panton
Finish:
White opal acrylic shade with white stand.Grey opal acrylic shade with high lustre chrome stand.
Material:
Shade: Injection moulded opal grey acrylic or white acrylic.
Base: Die cast aluminium
Weight:
Max. 0.35kg.
Class:
Ingress protection IP44. Electric shock protection III.
Light source:
Fitted LED 27K.
PANTHELLA PORTABLE METAL
Table lamp
Page: 172
Design: Verner Panton
Finish:
Finish: Black, White, Orange, Pale Rose, Pale Blue, Coral, Deep drawn steel
Material:
Shade: Injection moulded opal grey acrylic or white acrylic.
Base: Die cast aluminium
Weight:
Max. 0.35kg.
Class:
Ingress protection IP44. Electric shock protection III.
Light source:
Fitted LED 27K.
PANTHELLA MINI PORTABLE / NEW SIZE
Table lamp
Page: 22
Design: Verner Panton
Finish:
White opal acrylic shade with white stand.
Material:
Shade: Injection molded acrylic. Base and Housing: die cast aluminum.
Diffuser: Injection molded opal PMMA.
Weight:
Max. 2,2 kg
Class:
Ingress protection IP44. Electric shock protection III (awaiting test)
Light source:
LED 2700K 6,2W
AJ OXFORD
Wall lamp
Page: 20
Design: Arne Jacobsen
Finish:
Finish: Black wet painted stem with shade in three layered mouth-blown opal glass.
Top shade: Black wet painted with white inner side.
Material:
Shade, Mouth-blown three layered white opal glass. Stem and top shade: Steel.
Mounting device for pin mounting: Aluminium. Union nut and fi nger screw in untreated brass
with fi ne clockwise hairlines. Please note the untreated brass will patinate.
Weight:
Max. 1,2 kg
Class:
Ingress protection IP20. Electric shock protection II.
Light source:
1x20W E14
