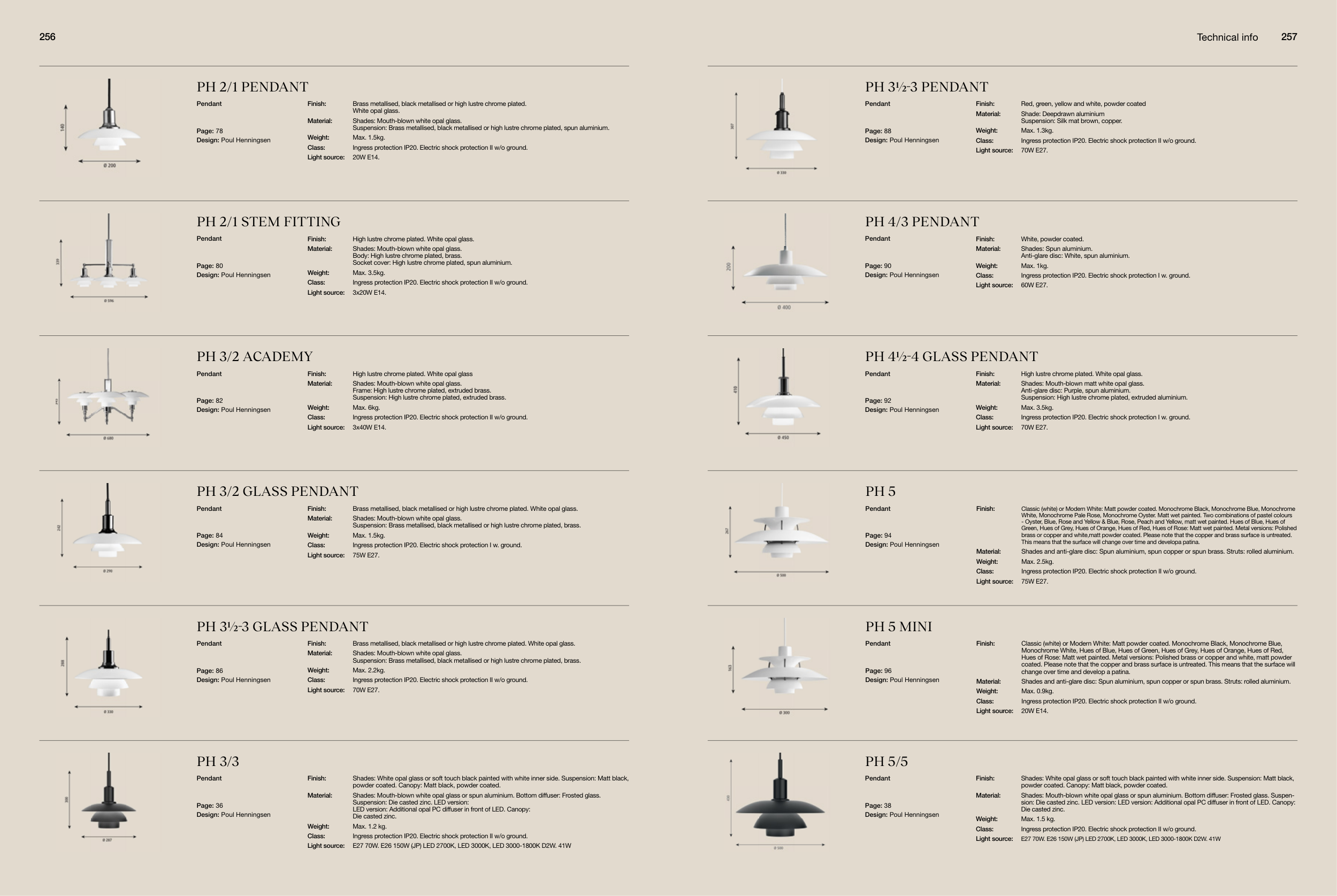

Technical info
PH 2/1 PENDANT
Pendant
Page: 78
Design: Poul Henningsen
Finish:
Brass metallised, black metallised or high lustre chrome plated.
White opal glass.
Material:
Shades: Mouth-blown white opal glass.
Suspension: Brass metallised, black metallised or high lustre chrome plated, spun aluminium.
Weight:
Max. 1.5kg.
Class:
Ingress protection IP20. Electric shock protection II w/o ground.
Light source:
20W E14.
PH 3½-3 GLASS PENDANT
Pendant
Page: 86
Design: Poul Henningsen
Finish:
Brass metallised, black metallised or high lustre chrome plated. White opal glass.
Material:
Shades: Mouth-blown white opal glass.
Suspension: Brass metallised, black metallised or high lustre chrome plated, brass.
Weight:
Max. 2.2kg.
Class:
Ingress protection IP20. Electric shock protection II w/o ground.
Light source:
70W E27.
PH 2/1 STEM FITTING
Pendant
Page: 80
Design: Poul Henningsen
Finish:
High lustre chrome plated. White opal glass.
Material:
Shades: Mouth-blown white opal glass.
Body: High lustre chrome plated, brass.
Socket cover: High lustre chrome plated, spun aluminium.
Weight:
Max. 3.5kg.
Class:
Ingress protection IP20. Electric shock protection II w/o ground.
Light source:
3x20W E14.
PH 3½-3 PENDANT
Pendant
Page: 88
Design: Poul Henningsen
Finish:
Red, green, yellow and white, powder coated
Material:
Shade: Deepdrawn aluminium
Suspension: Silk mat brown, copper.
Weight:
Max. 1.3kg.
Class:
Ingress protection IP20. Electric shock protection II w/o ground.
Light source:
70W E27.
PH 3/2 ACADEMY
Pendant
Page: 82
Design: Poul Henningsen
Finish:
High lustre chrome plated. White opal glass
Material:
Shades: Mouth-blown white opal glass.
Frame: High lustre chrome plated, extruded brass.
Suspension: High lustre chrome plated, extruded brass.
Weight:
Max. 6kg.
Class:
Ingress protection IP20. Electric shock protection II w/o ground.
Light source:
3x40W E14.
PH 3/2 GLASS PENDANT
Pendant
Page: 84
Design: Poul Henningsen
Finish:
Brass metallised, black metallised or high lustre chrome plated. White opal glass.
Material:
Shades: Mouth-blown white opal glass.
Suspension: Brass metallised, black metallised or high lustre chrome plated, brass.
Weight:
Max. 1.5kg.
Class:
Ingress protection IP20. Electric shock protection I w. ground.
Light source:
75W E27.
PH 4/3 PENDANT
Pendant
Page: 90
Design: Poul Henningsen
Finish:
White, powder coated.
Material:
Shades: Spun aluminium.
Anti-glare disc: White, spun aluminium.
Weight:
Max. 1kg.
Class:
Ingress protection IP20. Electric shock protection I w. ground.
Light source:
60W E27.
PH 3/3
Pendant
Page: 36
Design: Poul Henningsen
Finish:
Shades: White opal glass or soft touch black painted with white inner side. Suspension: Matt black,
powder coated. Canopy: Matt black, powder coated.
Material:
Shades: Mouth-blown white opal glass or spun aluminium. Bottom diffuser: Frosted glass.
Suspension: Die casted zinc. LED version:
LED version: Additional opal PC diffuser in front of LED. Canopy:
Die casted zinc.
Weight:
Max. 1.2 kg.
Class:
Ingress protection IP20. Electric shock protection II w/o ground.
Light source:
E27 70W. E26 150W (JP) LED 2700K, LED 3000K, LED 3000-1800K D2W. 41W
PH 4½-4 GLASS PENDANT
Pendant
Page: 92
Design: Poul Henningsen
Finish:
High lustre chrome plated. White opal glass.
Material:
Shades: Mouth-blown matt white opal glass.
Anti-glare disc: Purple, spun aluminium.
Suspension: High lustre chrome plated, extruded aluminium.
Weight:
Max. 3.5kg.
Class:
Ingress protection IP20. Electric shock protection I w. ground.
Light source:
70W E27.
PH 5
Pendant
Page: 94
Design: Poul Henningsen
Finish:
Classic (white) or Modern White: Matt powder coated. Monochrome Black, Monochrome Blue, Monochrome
White, Monochrome Pale Rose, Monochrome Oyster. Matt wet painted. Two combinations of pastel colours
- Oyster, Blue, Rose and Yellow & Blue, Rose, Peach and Yellow, matt wet painted. Hues of Blue, Hues of
Green, Hues of Grey, Hues of Orange, Hues of Red, Hues of Rose: Matt wet painted. Metal versions: Polished
brass or copper and white,matt powder coated. Please note that the copper and brass surface is untreated.
This means that the surface will change over time and developa patina.
Material:
Shades and anti-glare disc: Spun aluminium, spun copper or spun brass. Struts: rolled aluminium.
Weight:
Max. 2.5kg.
Class:
Ingress protection IP20. Electric shock protection II w/o ground.
Light source:
75W E27.
PH 5 MINI
Pendant
Page: 96
Design: Poul Henningsen
Finish:
Classic (white) or Modern White: Matt powder coated. Monochrome Black, Monochrome Blue,
Monochrome White, Hues of Blue, Hues of Green, Hues of Grey, Hues of Orange, Hues of Red,
Hues of Rose: Matt wet painted. Metal versions: Polished brass or copper and white, matt powder
coated. Please note that the copper and brass surface is untreated. This means that the surface will
change over time and develop a patina.
Material:
Shades and anti-glare disc: Spun aluminium, spun copper or spun brass. Struts: rolled aluminium.
Weight:
Max. 0.9kg.
Class:
Ingress protection IP20. Electric shock protection II w/o ground.
Light source:
20W E14.
PH 5/5
Pendant
Page: 38
Design: Poul Henningsen
Finish:
Shades: White opal glass or soft touch black painted with white inner side. Suspension: Matt black,
powder coated. Canopy: Matt black, powder coated.
Material:
Shades: Mouth-blown white opal glass or spun aluminium. Bottom diffuser: Frosted glass. Suspen-
sion: Die casted zinc. LED version: LED version: Additional opal PC diffuser in front of LED. Canopy:
Die casted zinc.
Weight:
Max. 1.5 kg.
Class:
Ingress protection IP20. Electric shock protection II w/o ground.
Light source:
E27 70W. E26 150W (JP) LED 2700K, LED 3000K, LED 3000-1800K D2W. 41W
