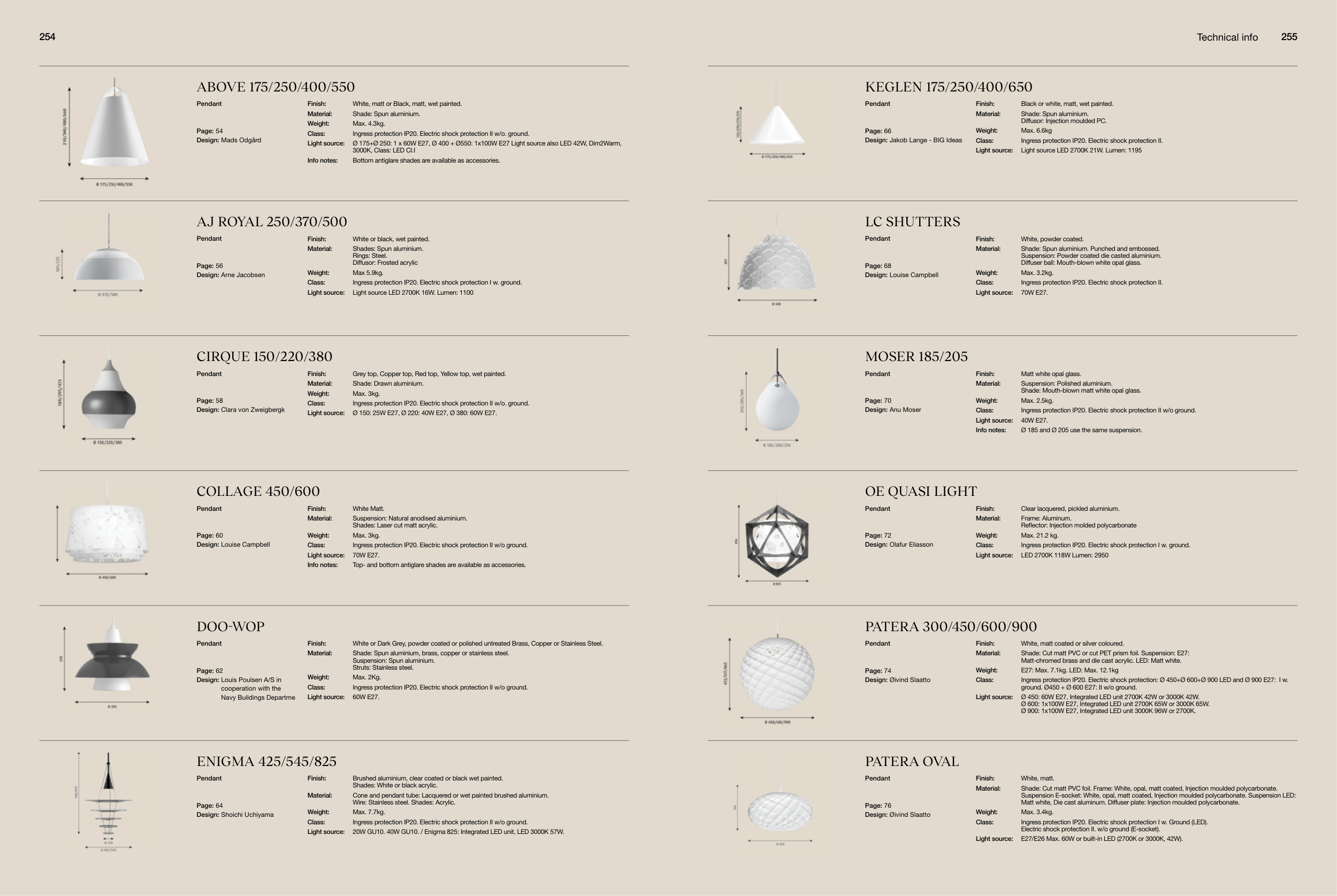

Technical info
ABOVE 175/250/400/550
Pendant
Page: 54
Design: Mads Odgård
Finish:
White, matt or Black, matt, wet painted.
Material:
Shade: Spun aluminium.
Weight:
Max. 4.3kg.
Class:
Ingress protection IP20. Electric shock protection II w/o. ground.
Light source:
Ø 175+Ø 250: 1 x 60W E27, Ø 400 + Ø550: 1x100W E27 Light source also LED 42W, Dim2Warm,
3000K, Class: LED Cl.I
Info notes:
Bottom antiglare shades are available as accessories.
AJ ROYAL 250/370/500
Pendant
Page: 56
Design: Arne Jacobsen
Finish:
White or black, wet painted.
Material:
Shades: Spun aluminium.
Rings: Steel.
Diffusor: Frosted acrylic
Weight:
Max 5.9kg.
Class:
Ingress protection IP20. Electric shock protection I w. ground.
Light source:
Light source LED 2700K 16W. Lumen: 1100
KEGLEN 175/250/400/650
Pendant
Page: 66
Design: Jakob Lange - BIG Ideas
Finish:
Black or white, matt, wet painted.
Material:
Shade: Spun aluminium.
Diffusor: Injection moulded PC.
Weight:
Max. 6.6kg
Class:
Ingress protection IP20. Electric shock protection II.
Light source:
Light source LED 2700K 21W. Lumen: 1195
CIRQUE 150/220/380
Pendant
Page: 58
Design: Clara von Zweigbergk
Finish:
Grey top, Copper top, Red top, Yellow top, wet painted.
Material:
Shade: Drawn aluminium.
Weight:
Max. 3kg.
Class:
Ingress protection IP20. Electric shock protection II w/o. ground.
Light source:
Ø 150: 25W E27, Ø 220: 40W E27, Ø 380: 60W E27.
LC SHUTTERS
Pendant
Page: 68
Design: Louise Campbell
Finish:
White, powder coated.
Material:
Shade: Spun aluminium. Punched and embossed.
Suspension: Powder coated die casted aluminium.
Diffuser ball: Mouth-blown white opal glass.
Weight:
Max. 3.2kg.
Class:
Ingress protection IP20. Electric shock protection II.
Light source:
70W E27.
COLLAGE 450/600
Pendant
Page: 60
Design: Louise Campbell
Finish:
White Matt.
Material:
Suspension: Natural anodised aluminium.
Shades: Laser cut matt acrylic.
Weight:
Max. 3kg.
Class:
Ingress protection IP20. Electric shock protection II w/o ground.
Light source:
70W E27.
Info notes:
Top- and bottom antiglare shades are available as accessories.
MOSER 185/205
Pendant
Page: 70
Design: Anu Moser
Finish:
Matt white opal glass.
Material:
Suspension: Polished aluminium.
Shade: Mouth-blown matt white opal glass.
Weight:
Max. 2.5kg.
Class:
Ingress protection IP20. Electric shock protection II w/o ground.
Light source:
40W E27.
Info notes:
Ø 185 and Ø 205 use the same suspension.
DOO-WOP
Pendant
Page: 62
Design: Louis Poulsen A/S in
cooperation with the
Navy Buildings Departme
Finish:
White or Dark Grey, powder coated or polished untreated Brass, Copper or Stainless Steel.
Material:
Shade: Spun aluminium, brass, copper or stainless steel.
Suspension: Spun aluminium.
Struts: Stainless steel.
Weight:
Max. 2Kg.
Class:
Ingress protection IP20. Electric shock protection II w/o ground.
Light source:
60W E27.
OE QUASI LIGHT
Pendant
Page: 72
Design: Olafur Eliasson
Finish:
Clear lacquered, pickled aluminium.
Material:
Frame: Aluminum.
Refl ector: Injection molded polycarbonate
Weight:
Max. 21.2 kg.
Class:
Ingress protection IP20. Electric shock protection I w. ground.
Light source:
LED 2700K 118W Lumen: 2950
ENIGMA 425/545/825
Pendant
Page: 64
Design: Shoichi Uchiyama
Finish:
Brushed aluminium, clear coated or black wet painted.
Shades: White or black acrylic.
Material:
Cone and pendant tube: Lacquered or wet painted brushed aluminium.
Wire: Stainless steel. Shades: Acrylic.
Weight:
Max. 7.7kg.
Class:
Ingress protection IP20. Electric shock protection II w/o ground.
Light source:
20W GU10. 40W GU10. / Enigma 825: Integrated LED unit, LED 3000K 57W.
PATERA 300/450/600/900
Pendant
Page: 74
Design: Øivind Slaatto
Finish:
White, matt coated or silver coloured.
Material:
Shade: Cut matt PVC or cut PET prism foil. Suspension: E27:
Matt-chromed brass and die cast acrylic. LED: Matt white.
Weight:
E27: Max. 7.1kg. LED: Max. 12.1kg
Class:
Ingress protection IP20. Electric shock protection: Ø 450+Ø 600+Ø 900 LED and Ø 900 E27: I w.
ground. Ø450 + Ø 600 E27: II w/o ground.
Light source:
Ø 450: 60W E27, Integrated LED unit 2700K 42W or 3000K 42W.
Ø 600: 1x100W E27, Integrated LED unit 2700K 65W or 3000K 65W.
Ø 900: 1x100W E27, Integrated LED unit 3000K 96W or 2700K.
PATERA OVAL
Pendant
Page: 76
Design: Øivind Slaatto
Finish:
White, matt.
Material:
Shade: Cut matt PVC foil. Frame: White, opal, matt coated, Injection moulded polycarbonate.
Suspension E-socket: White, opal, matt coated, Injection moulded polycarbonate. Suspension LED:
Matt white, Die cast aluminum. Diffuser plate: Injection moulded polycarbonate.
Weight:
Max. 3.4kg.
Class:
Ingress protection IP20. Electric shock protection I w. Ground (LED).
Electric shock protection II. w/o ground (E-socket).
Light source:
E27/E26 Max. 60W or built-in LED (2700K or 3000K, 42W).
