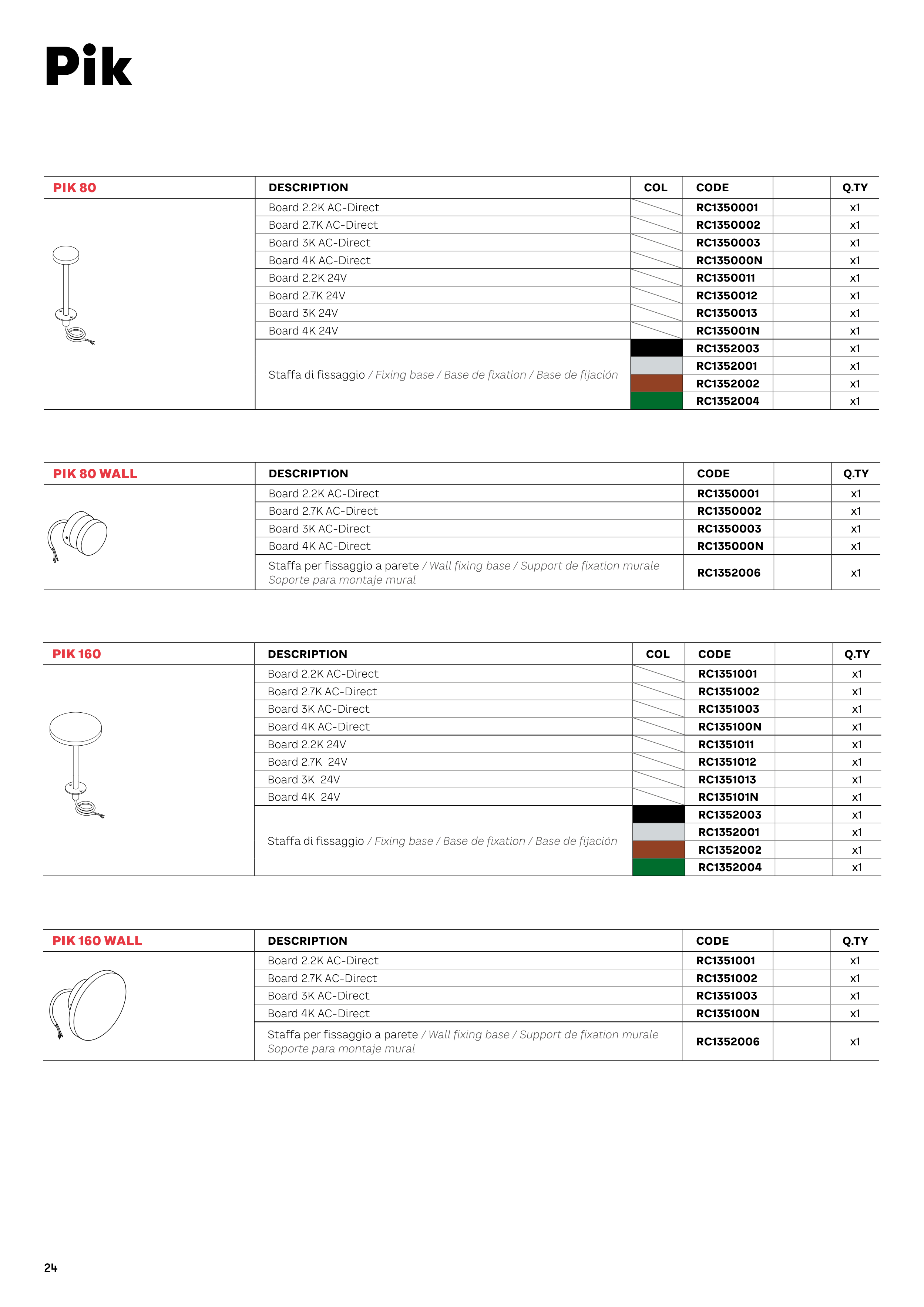

Pik
PIK 80
DESCRIPTION
COL
CODE
Q.TY
Board 2.2K AC-Direct
RC1350001
x1
Board 2.7K AC-Direct
RC1350002
x1
Board 3K AC-Direct
RC1350003
x1
Board 4K AC-Direct
RC135000N
x1
Board 2.2K 24V
RC1350011
x1
Board 2.7K 24V
RC1350012
x1
Board 3K 24V
RC1350013
x1
Board 4K 24V
RC135001N
x1
Staffa di fissaggio / Fixing base / Base de fixation / Base de fijación
RC1352003
x1
RC1352001
x1
RC1352002
x1
RC1352004
x1
PIK 160
DESCRIPTION
COL
CODE
Q.TY
Board 2.2K AC-Direct
RC1351001
x1
Board 2.7K AC-Direct
RC1351002
x1
Board 3K AC-Direct
RC1351003
x1
Board 4K AC-Direct
RC135100N
x1
Board 2.2K 24V
RC1351011
x1
Board 2.7K 24V
RC1351012
x1
Board 3K 24V
RC1351013
x1
Board 4K 24V
RC135101N
x1
Staffa di fissaggio / Fixing base / Base de fixation / Base de fijación
RC1352003
x1
RC1352001
x1
RC1352002
x1
RC1352004
x1
PIK 80 WALL
DESCRIPTION
CODE
Q.TY
Board 2.2K AC-Direct
RC1350001
x1
Board 2.7K AC-Direct
RC1350002
x1
Board 3K AC-Direct
RC1350003
x1
Board 4K AC-Direct
RC135000N
x1
Staffa per fissaggio a parete / Wall fixing base / Support de fixation murale
Soporte para montaje mural
RC1352006
x1
PIK 160 WALL
DESCRIPTION
CODE
Q.TY
Board 2.2K AC-Direct
RC1351001
x1
Board 2.7K AC-Direct
RC1351002
x1
Board 3K AC-Direct
RC1351003
x1
Board 4K AC-Direct
RC135100N
x1
Staffa per fissaggio a parete / Wall fixing base / Support de fixation murale
Soporte para montaje mural
RC1352006
x1
ø 80
ø 3 1/8"
250
9 7/8"
ø 65
ø 2 1/2"
ø 65
ø 2 1/2"
ø 160
ø 6 1/4"
250
9 7/8"
57
2 1/4"
ø 80
ø 3 1/8"
ø 160
ø 6 1/4"
57
2 1/4"
ø 80
ø 3 1/8"
