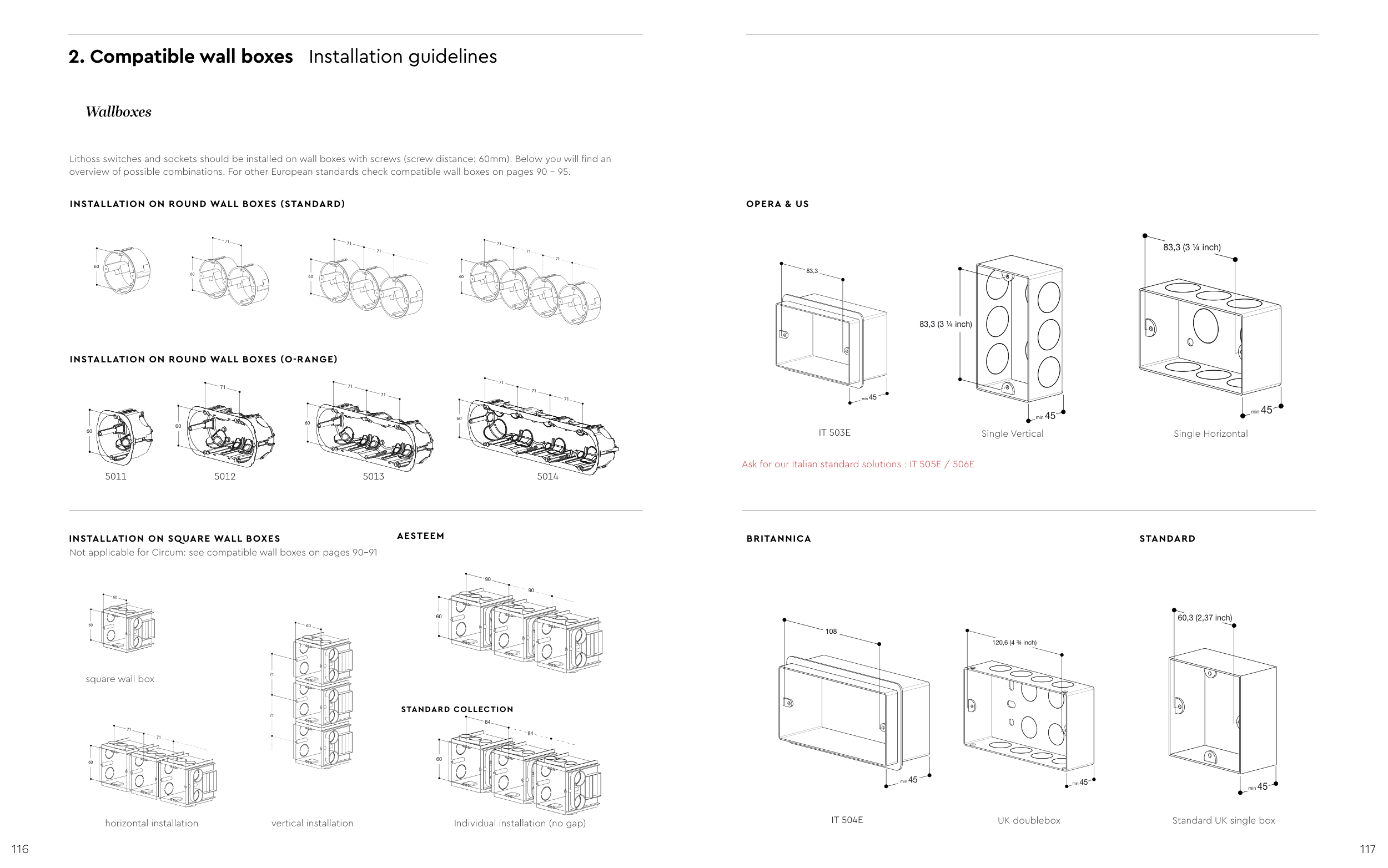

2. Compatible wall boxes Installation guidelines
Wallboxes
Lithoss switches and sockets should be installed on wall boxes with screws (screw distance: 60mm). Below you will find an
overview of possible combinations. For other European standards check compatible wall boxes on pages 90 - 95.
Not applicable for Circum: see compatible wall boxes on pages 90-91
INSTALLATION ON ROUND WALL BOXES (STANDARD)
INSTALLATION ON ROUND WALL BOXES (O-RANGE)
60
60
71
60
71
71
60
71
71
71
5011
5012
5013
5014
60
71
60
71
71
60
71
71
71
60
AESTEEM
60
90
90
INSTALLATION ON SQUARE WALL BOXES
horizontal installation
square wall box
vertical installation
Individual installation (no gap)
71
71
60
60
71
71
60
60
STANDARD COLLECTION
OPERA & US
UK doublebox
Standard UK single box
BRITANNICA
STANDARD
83,3
min 45
108
min 45
83,3 (3 ¼ inch)
min 45
120,6 (4 ¾ inch)
min 45
60,3 (2,37 inch)
min 45
Italië
IT 503E IT 504E
Dimensions WallBoxes_V1 - 04/12/2019
Amerika
Engeland
min 45
83,3 (3 ¼ inch)
UK Single UK Double
USA Single Vertical Horizontal
WallBoxes
83,3
min 45
108
min 45
83,3 (3 ¼ inch)
min 45
120,6 (4 ¾ inch)
min 45
60,3 (2,37 inch)
min 45
Italië
IT 503E IT 504E
Dimensions WallBoxes_V1 - 04/12/2019
Amerika
Engeland
min 45
83,3 (3 ¼ inch)
UK Single UK Double
USA Single Vertical Horizontal
WallBoxes
83,3
min 45
108
min 45
83,3 (3 ¼ inch)
min 45
120,6 (4 ¾ inch)
min 45
60,3 (2,37 inch)
min 45
Italië
IT 503E IT 504E
Dimensions WallBoxes_V1 - 04/12/2019
Amerika
Engeland
min 45
83,3 (3 ¼ inch)
UK Single UK Double
USA Single Vertical Horizontal
WallBoxes
83,3
min 45
108
min 45
83,3 (3 ¼ inch)
min 45
120,6 (4 ¾ inch)
min 45
60,3 (2,37 inch)
min 45
Italië
IT 503E IT 504E
Dimensions WallBoxes_V1 - 04/12/2019
Amerika
Engeland
min 45
83,3 (3 ¼ inch)
UK Single UK Double
USA Single Vertical Horizontal
WallBoxes
83,3
min 45
108
min 45
83,3 (3 ¼ inch)
min 45
120,6 (4 ¾ inch)
min 45
60,3 (2,37 inch)
min 45
Italië
IT 503E IT 504E
Dimensions WallBoxes_V1 - 04/12/2019
Amerika
Engeland
min 45
83,3 (3 ¼ inch)
UK Single UK Double
USA Single Vertical Horizontal
WallBoxes
Single Vertical
Single Horizontal
IT 503E
IT 504E
Ask for our Italian standard solutions : IT 505E / 506E
