OVP
ESD
IP66
IK08
m2
m2
1 m
0,03
0,1

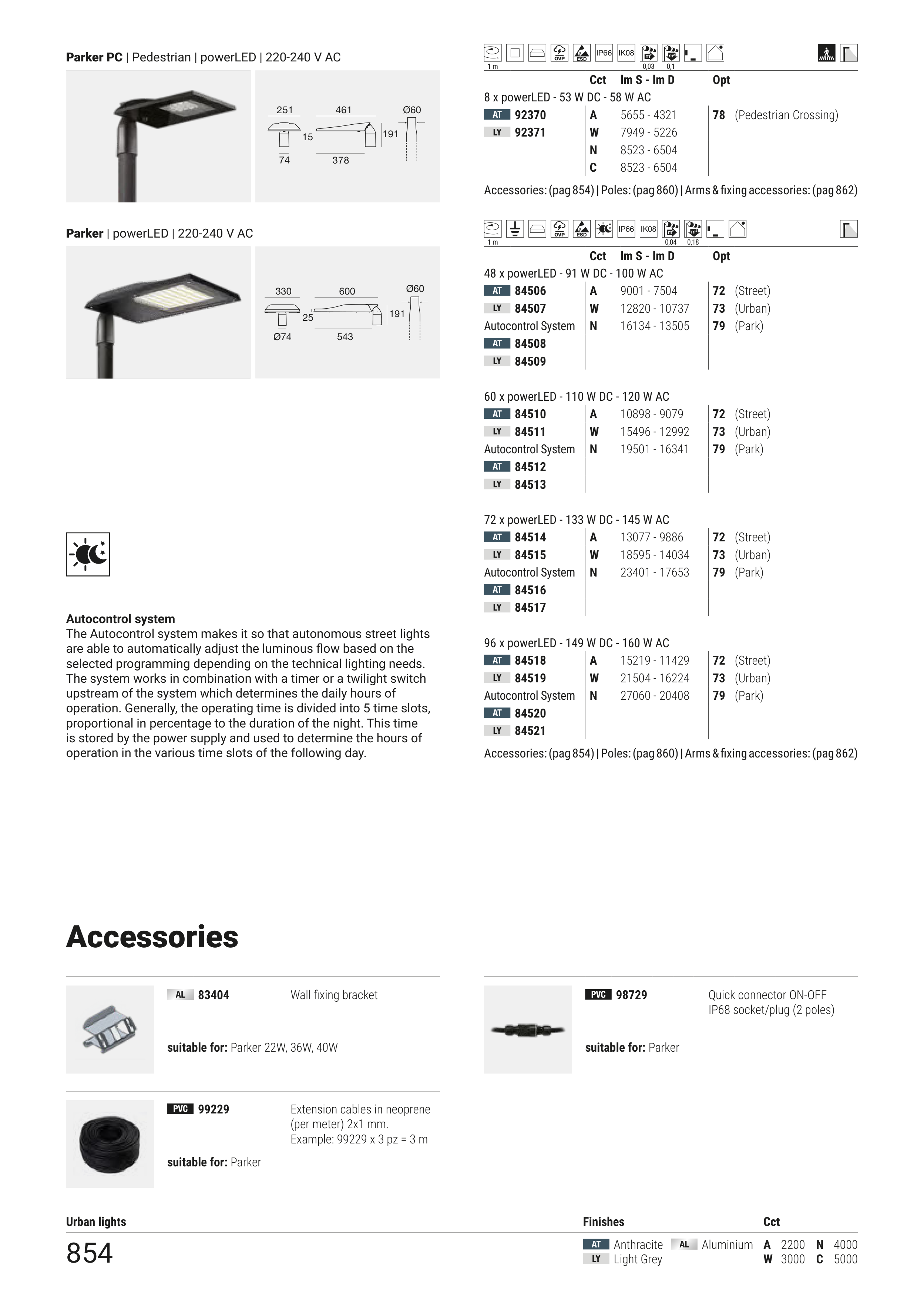

Parker PC | Pedestrian | powerLED | 220-240 V AC
Ø60
74
378
191
461
251
15
OVP
ESD
IP66
IK08
m2
m2
1 m
0,04
0,18
Parker | powerLED | 220-240 V AC
Ø60
543
600
25
191
330
Ø74
Accessories
Finishes
Cct
AT
Anthracite
AL
Aluminium
A
2200
N
4000
LY
Light Grey
W 3000
C
5000
Accessories: (pag 854) | Poles: (pag 860) | Arms & fixing accessories: (pag 862)
Cct
lm S - lm D
Opt
8 x powerLED - 53 W DC - 58 W AC
AT
92370
A
5655 - 4321
78 (Pedestrian Crossing)
LY
92371
W
7949 - 5226
N
8523 - 6504
C
8523 - 6504
Accessories: (pag 854) | Poles: (pag 860) | Arms & fixing accessories: (pag 862)
Cct
lm S - lm D
Opt
48 x powerLED - 91 W DC - 100 W AC
AT
84506
A
9001 - 7504
72 (Street)
LY
84507
W
12820 - 10737
73 (Urban)
Autocontrol System
N
16134 - 13505
79 (Park)
AT
84508
LY
84509
60 x powerLED - 110 W DC - 120 W AC
AT
84510
A
10898 - 9079
72 (Street)
LY
84511
W
15496 - 12992
73 (Urban)
Autocontrol System
N
19501 - 16341
79 (Park)
AT
84512
LY
84513
72 x powerLED - 133 W DC - 145 W AC
AT
84514
A
13077 - 9886
72 (Street)
LY
84515
W
18595 - 14034
73 (Urban)
Autocontrol System
N
23401 - 17653
79 (Park)
AT
84516
LY
84517
96 x powerLED - 149 W DC - 160 W AC
AT
84518
A
15219 - 11429
72 (Street)
LY
84519
W
21504 - 16224
73 (Urban)
Autocontrol System
N
27060 - 20408
79 (Park)
AT
84520
LY
84521
AL
83404
suitable for: Parker 22W, 36W, 40W
PVC
99229
suitable for: Parker
PVC
98729
suitable for: Parker
Wall fixing bracket
Extension cables in neoprene
(per meter) 2x1 mm.
Example: 99229 x 3 pz = 3 m
Quick connector ON-OFF
IP68 socket/plug (2 poles)
Autocontrol system
The Autocontrol system makes it so that autonomous street lights
are able to automatically adjust the luminous flow based on the
selected programming depending on the technical lighting needs.
The system works in combination with a timer or a twilight switch
upstream of the system which determines the daily hours of
operation. Generally, the operating time is divided into 5 time slots,
proportional in percentage to the duration of the night. This time
is stored by the power supply and used to determine the hours of
operation in the various time slots of the following day.
Urban lights
854
