Ceiling surface:
Skin_Y, Skin_S
Skin_F, Skin_FL
Ceiling recessed:
Skin_Y, Skin_F,
Skin_FL
In-ground:
Skin_Y, Skin_F,
Skin_FL
Wall recessed:
Skin_Y,
Skin_FL
Skin_S
M. Flood
(pag 508)
Skin_F
M. Flood
Skin_F
M. Flood
Skin_Y
Asymmetric
Skin_FL
Diffused
For installation
in the version with 5/3 cells:
Uplight on concrete floor.
For installation
in the version with 5/3 cells:
Downlight on brick ceiling.
For installation
in the version with 5/3 cells:
Downlight on false ceiling.
Downlight on concrete ceiling.

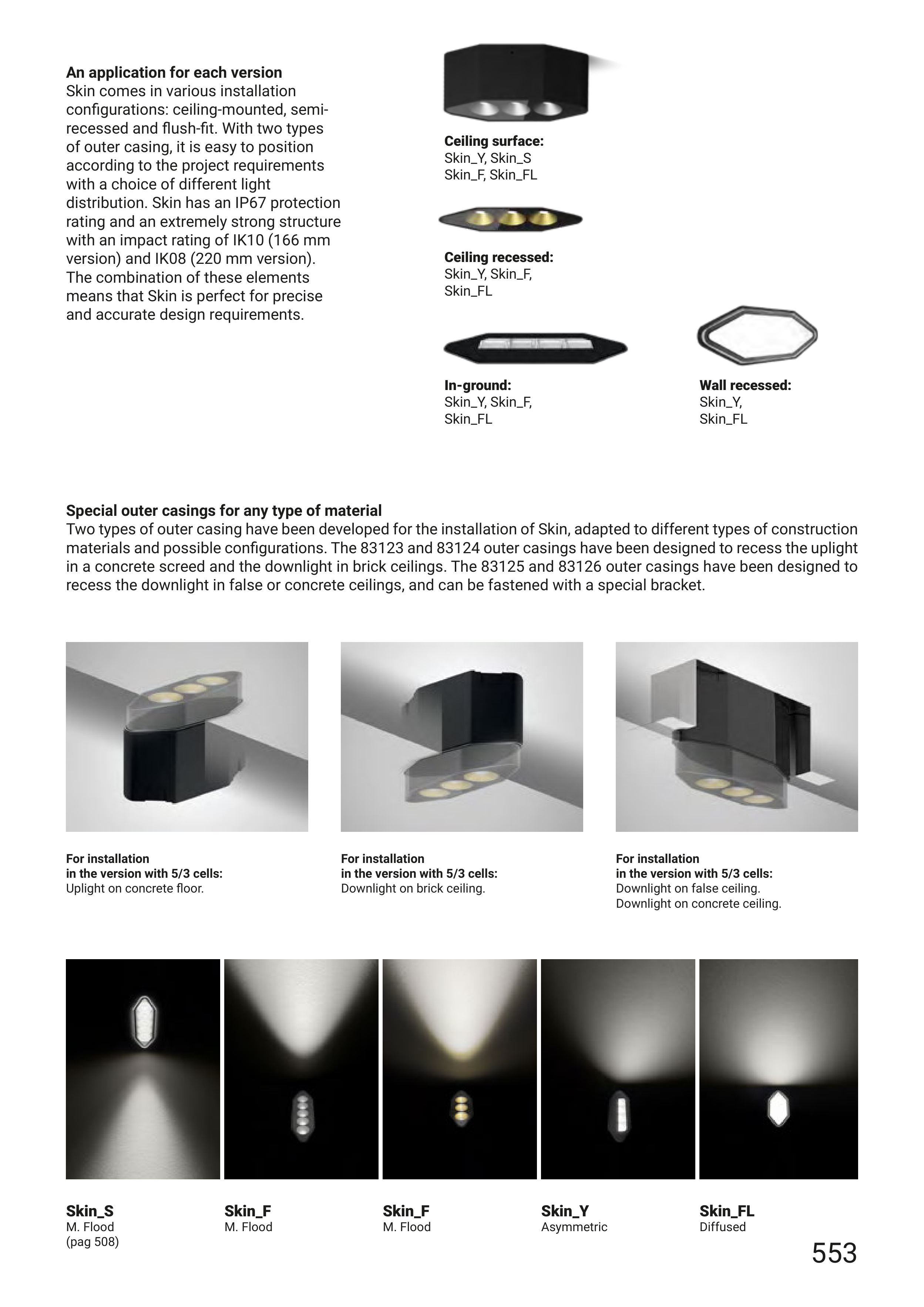

Special outer casings for any type of material
Two types of outer casing have been developed for the installation of Skin, adapted to different types of construction
materials and possible configurations. The 83123 and 83124 outer casings have been designed to recess the uplight
in a concrete screed and the downlight in brick ceilings. The 83125 and 83126 outer casings have been designed to
recess the downlight in false or concrete ceilings, and can be fastened with a special bracket.
An application for each version
Skin comes in various installation
configurations: ceiling-mounted, semi-
recessed and flush-fit. With two types
of outer casing, it is easy to position
according to the project requirements
with a choice of different light
distribution. Skin has an IP67 protection
rating and an extremely strong structure
with an impact rating of IK10 (166 mm
version) and IK08 (220 mm version).
The combination of these elements
means that Skin is perfect for precise
and accurate design requirements.
553
