Finishes
Cct
WH
White
M 2700
T
3500
OP
Opaline
W 3000
N
4000
C.V.
IP54
IP40
NEW
High
Efficiency

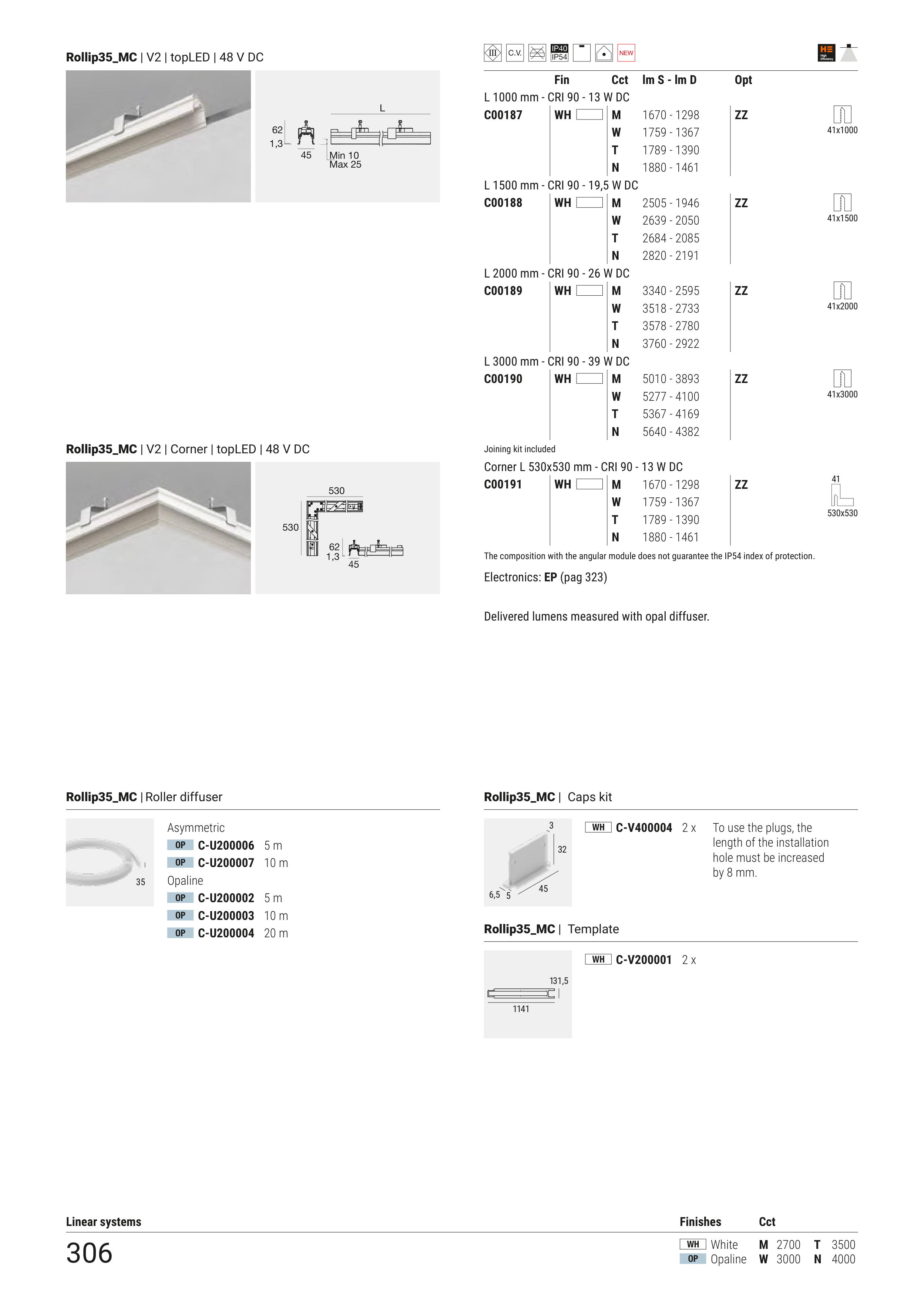

Rollip35_MC | V2 | topLED | 48 V DC
45
L
1,3
62
Min 10
Max 25
Rollip35_MC | V2 | Corner | topLED | 48 V DC
530
530
45
62
1,3
41x1000
41x1500
41x2000
41x3000
41
530x530
Fin
Cct
lm S - lm D
Opt
L 1000 mm - CRI 90 - 13 W DC
C00187
WH
M
1670 - 1298
ZZ
W
1759 - 1367
T
1789 - 1390
N
1880 - 1461
L 1500 mm - CRI 90 - 19,5 W DC
C00188
WH
M
2505 - 1946
ZZ
W
2639 - 2050
T
2684 - 2085
N
2820 - 2191
L 2000 mm - CRI 90 - 26 W DC
C00189
WH
M
3340 - 2595
ZZ
W
3518 - 2733
T
3578 - 2780
N
3760 - 2922
L 3000 mm - CRI 90 - 39 W DC
C00190
WH
M
5010 - 3893
ZZ
W
5277 - 4100
T
5367 - 4169
N
5640 - 4382
Corner L 530x530 mm - CRI 90 - 13 W DC
C00191
WH
M
1670 - 1298
ZZ
W
1759 - 1367
T
1789 - 1390
N
1880 - 1461
Rollip35_MC |
35
OP
C-U200006 5 m
OP
C-U200007 10 m
OP
C-U200002 5 m
OP
C-U200003 10 m
OP
C-U200004 20 m
Electronics: EP (pag 323)
Rollip35_MC |
131,5
1141
WH
C-V200001 2 x
Rollip35_MC |
6,5 5
45
32
3
WH
C-V400004 2 x
Roller diffuser
Template
Caps kit
Asymmetric
Opaline
Joining kit included
The composition with the angular module does not guarantee the IP54 index of protection.
To use the plugs, the
length of the installation
hole must be increased
by 8 mm.
Delivered lumens measured with opal diffuser.
Linear systems
306
