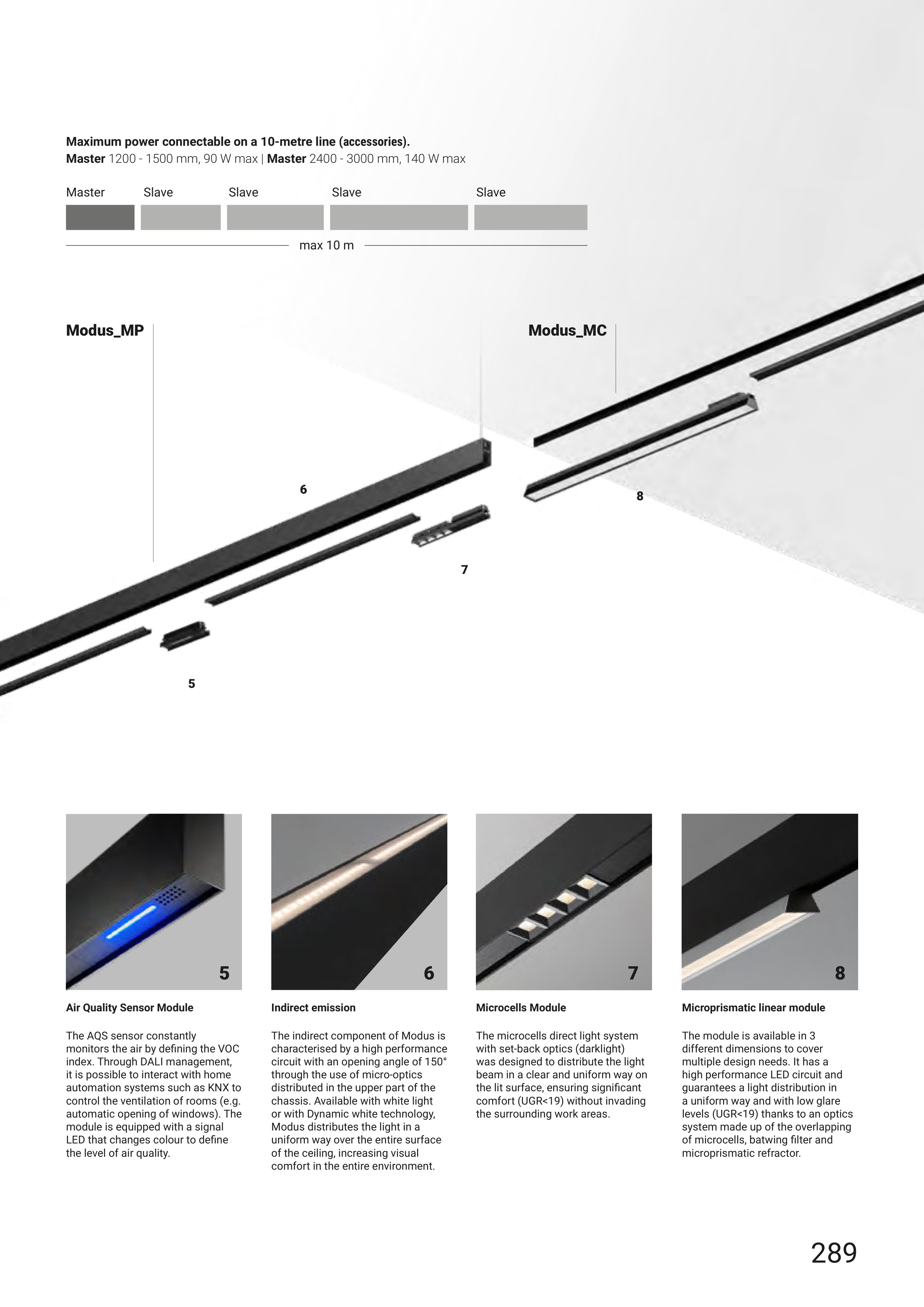

Master
Master 1200 - 1500 mm, 90 W max | Master 2400 - 3000 mm, 140 W max
Slave
Slave
max 10 m
Slave
Slave
5
6
7
8
5
6
8
7
Modus_MP
Modus_MC
Microprismatic linear module
The module is available in 3
different dimensions to cover
multiple design needs. It has a
high performance LED circuit and
guarantees a light distribution in
a uniform way and with low glare
levels (UGR<19) thanks to an optics
system made up of the overlapping
of microcells, batwing filter and
microprismatic refractor.
Indirect emission
The indirect component of Modus is
characterised by a high performance
circuit with an opening angle of 150°
through the use of micro-optics
distributed in the upper part of the
chassis. Available with white light
or with Dynamic white technology,
Modus distributes the light in a
uniform way over the entire surface
of the ceiling, increasing visual
comfort in the entire environment.
Maximum power connectable on a 10-metre line (accessories).
Microcells Module
The microcells direct light system
with set-back optics (darklight)
was designed to distribute the light
beam in a clear and uniform way on
the lit surface, ensuring significant
comfort (UGR<19) without invading
the surrounding work areas.
Air Quality Sensor Module
The AQS sensor constantly
monitors the air by defining the VOC
index. Through DALI management,
it is possible to interact with home
automation systems such as KNX to
control the ventilation of rooms (e.g.
automatic opening of windows). The
module is equipped with a signal
LED that changes colour to define
the level of air quality.
