C.V.
IP40
C.V.
IP40
C.V.
IP40
C.V.
IP40
UGR

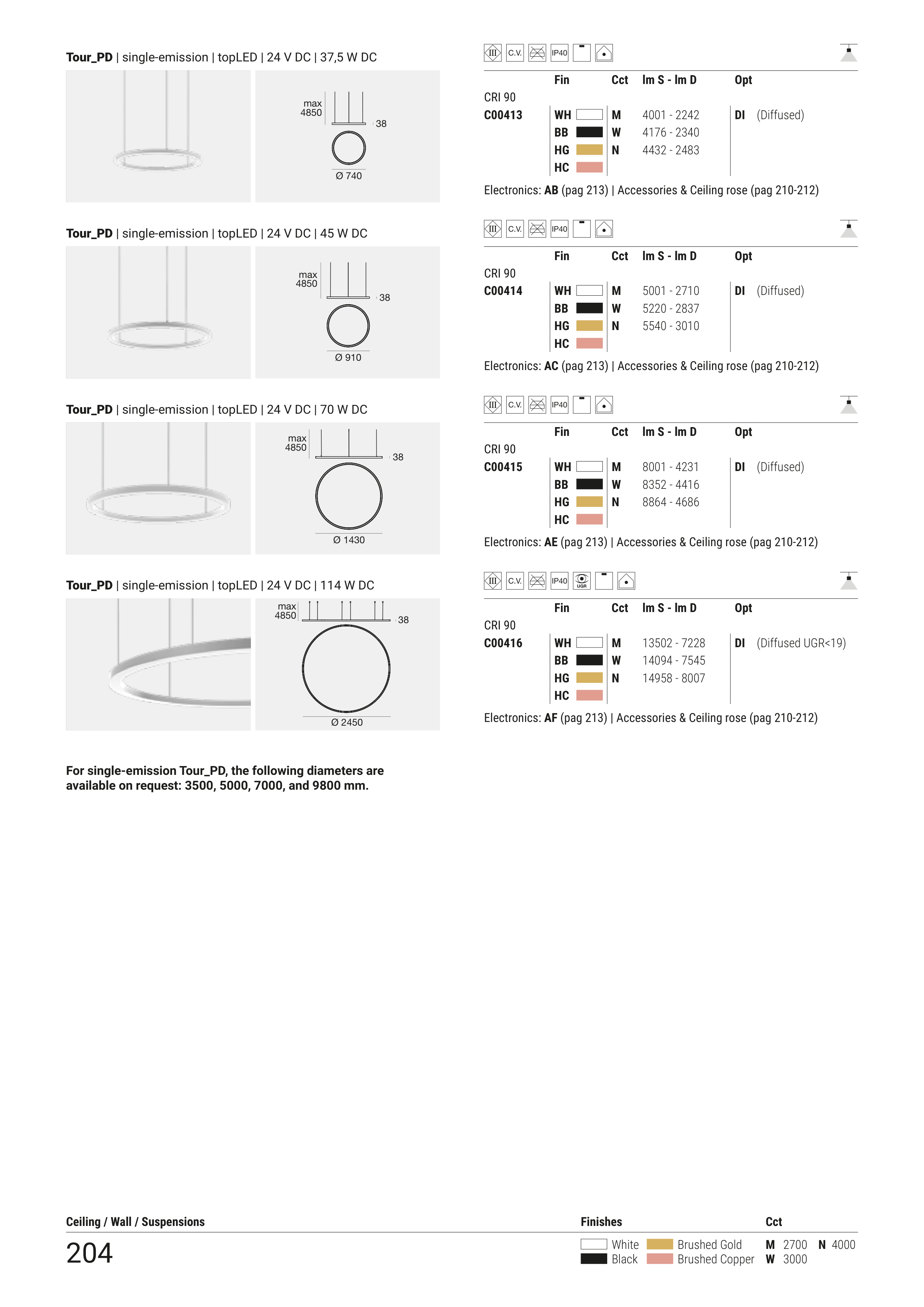

Tour_PD | single-emission | topLED | 24 V DC | 37,5 W DC
38
max
4850
Ø 740
Tour_PD | single-emission | topLED | 24 V DC | 45 W DC
38
max
4850
Ø 910
Tour_PD | single-emission | topLED | 24 V DC | 70 W DC
38
max
4850
Ø 1430
Tour_PD | single-emission | topLED | 24 V DC | 114 W DC
38
max
4850
Ø 2450
Finishes
Cct
White
Brushed Gold
M 2700
N 4000
Black
Brushed Copper
W 3000
Electronics: AB (pag 213) | Accessories & Ceiling rose (pag 210-212)
Electronics: AC (pag 213) | Accessories & Ceiling rose (pag 210-212)
Electronics: AE (pag 213) | Accessories & Ceiling rose (pag 210-212)
Electronics: AF (pag 213) | Accessories & Ceiling rose (pag 210-212)
Fin
Cct
lm S - lm D
Opt
CRI 90
C00413
WH
M
4001 - 2242
DI
(Diffused)
BB
W
4176 - 2340
HG
N
4432 - 2483
HC
Fin
Cct
lm S - lm D
Opt
CRI 90
C00414
WH
M
5001 - 2710
DI
(Diffused)
BB
W
5220 - 2837
HG
N
5540 - 3010
HC
Fin
Cct
lm S - lm D
Opt
CRI 90
C00415
WH
M
8001 - 4231
DI
(Diffused)
BB
W
8352 - 4416
HG
N
8864 - 4686
HC
Fin
Cct
lm S - lm D
Opt
CRI 90
C00416
WH
M
13502 - 7228
DI
(Diffused UGR<19)
BB
W
14094 - 7545
HG
N
14958 - 8007
HC
For single-emission Tour_PD, the following diameters are
available on request: 3500, 5000, 7000, and 9800 mm.
Ceiling / Wall / Suspensions
204
