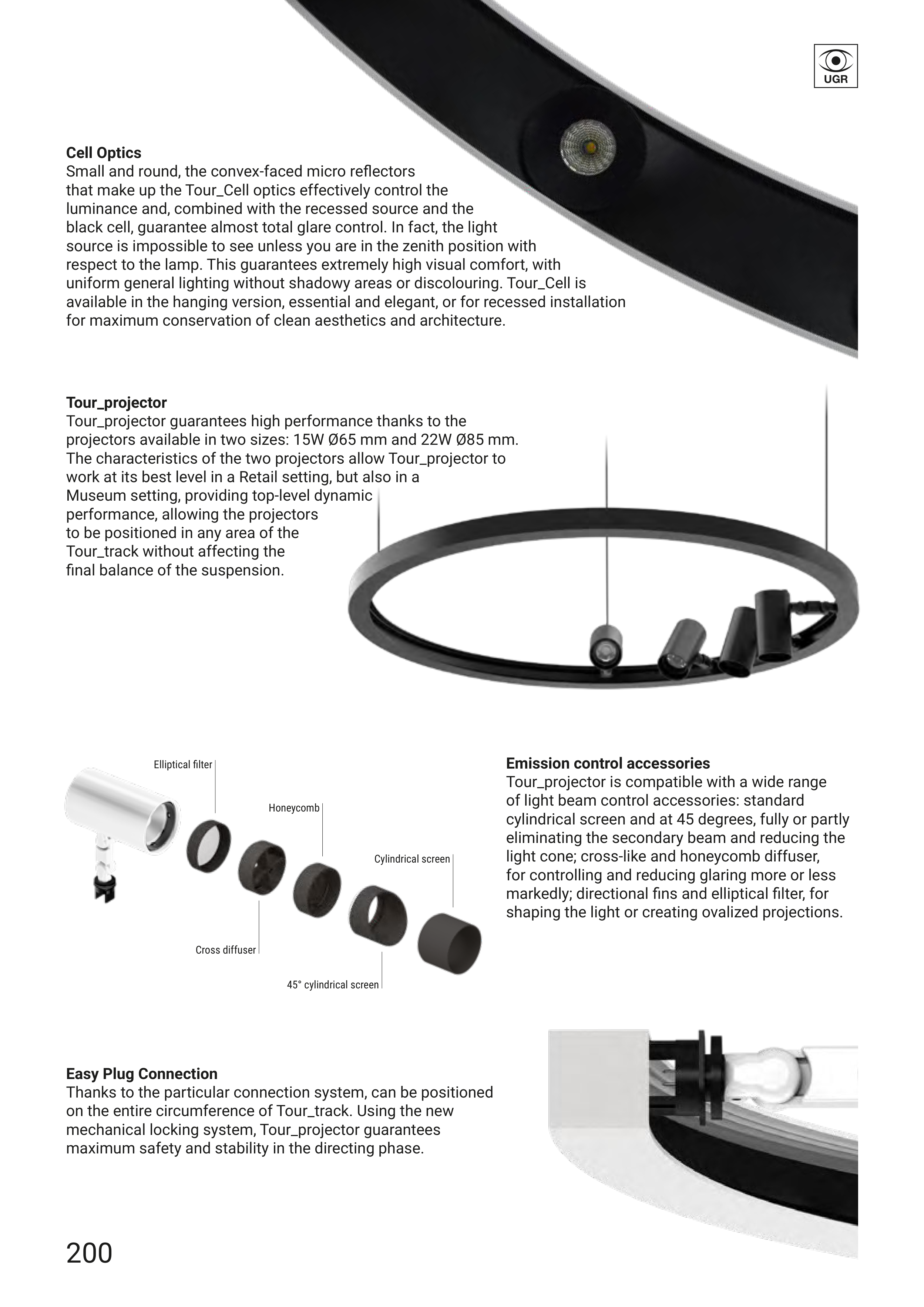

UGR
Cell Optics
Small and round, the convex-faced micro reflectors
that make up the Tour_Cell optics effectively control the
luminance and, combined with the recessed source and the
black cell, guarantee almost total glare control. In fact, the light
source is impossible to see unless you are in the zenith position with
respect to the lamp. This guarantees extremely high visual comfort, with
uniform general lighting without shadowy areas or discolouring. Tour_Cell is
available in the hanging version, essential and elegant, or for recessed installation
for maximum conservation of clean aesthetics and architecture.
Tour_projector
Tour_projector guarantees high performance thanks to the
projectors available in two sizes: 15W Ø65 mm and 22W Ø85 mm.
The characteristics of the two projectors allow Tour_projector to
work at its best level in a Retail setting, but also in a
Museum setting, providing top-level dynamic
performance, allowing the projectors
to be positioned in any area of the
Tour_track without affecting the
final balance of the suspension.
Easy Plug Connection
Thanks to the particular connection system, can be positioned
on the entire circumference of Tour_track. Using the new
mechanical locking system, Tour_projector guarantees
maximum safety and stability in the directing phase.
Emission control accessories
Tour_projector is compatible with a wide range
of light beam control accessories: standard
cylindrical screen and at 45 degrees, fully or partly
eliminating the secondary beam and reducing the
light cone; cross-like and honeycomb diffuser,
for controlling and reducing glaring more or less
markedly; directional fins and elliptical filter, for
shaping the light or creating ovalized projections.
Cross diffuser
45° cylindrical screen
Cylindrical screen
Honeycomb
Elliptical filter
200
