161
425
L
50
50
400
900
48
120
418
39,5
L
168
52
52
321
425
26
164
Lx370
5
5
7
6
6
8
1
4
4
2
3
Colors
WH
White
BB
Black
L mm
BB
99927
500
BB
99928
1000
L mm
WH
82728
500
WH
82729
1000
WH
82730
1500
BB
99929

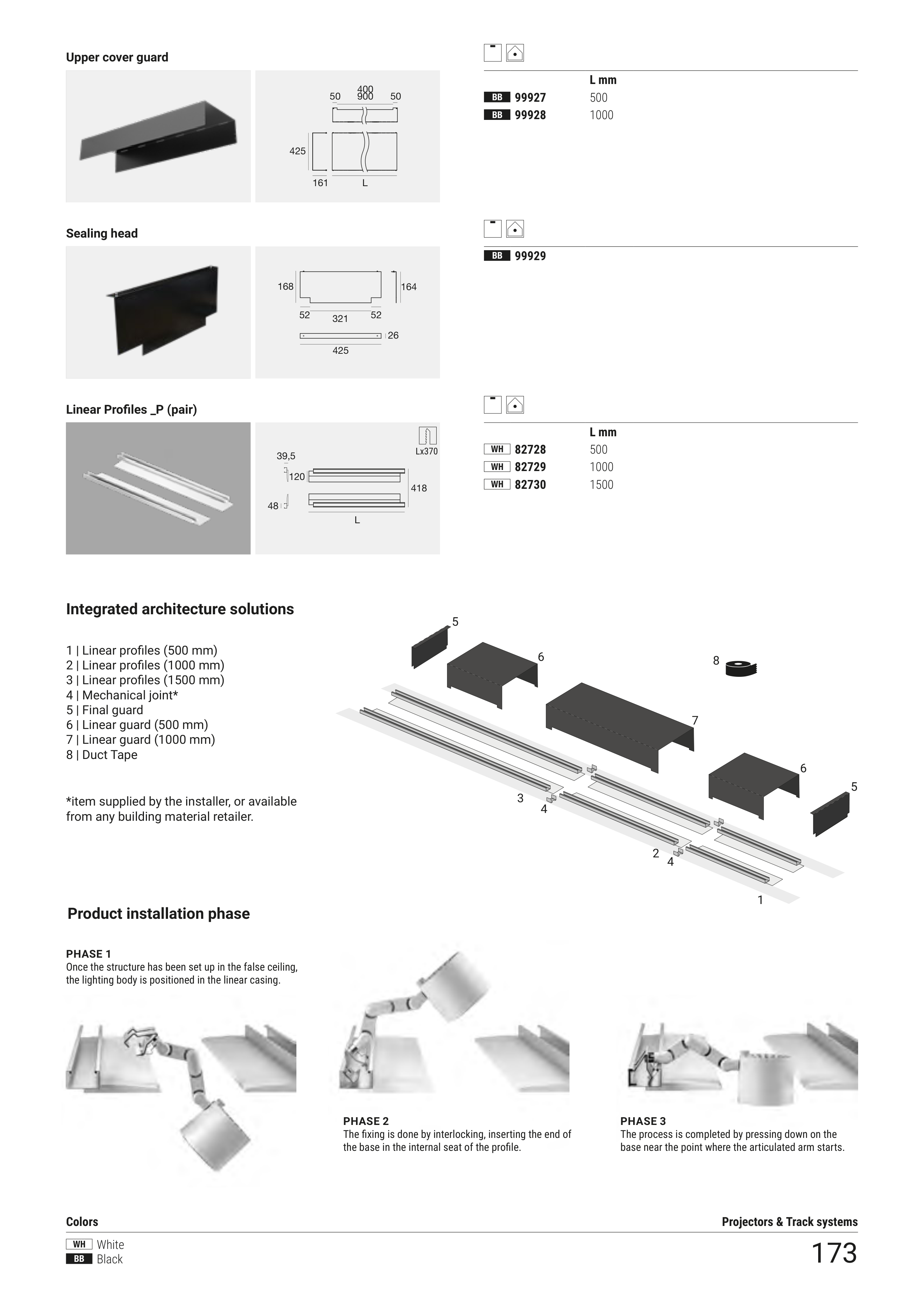

Upper cover guard
Linear Profiles _P (pair)
Sealing head
Product installation phase
1 | Linear profiles (500 mm)
2 | Linear profiles (1000 mm)
3 | Linear profiles (1500 mm)
4 | Mechanical joint*
5 | Final guard
6 | Linear guard (500 mm)
7 | Linear guard (1000 mm)
8 | Duct Tape
*item supplied by the installer, or available
from any building material retailer.
Integrated architecture solutions
PHASE 1
Once the structure has been set up in the false ceiling,
the lighting body is positioned in the linear casing.
PHASE 2
The fixing is done by interlocking, inserting the end of
the base in the internal seat of the profile.
PHASE 3
The process is completed by pressing down on the
base near the point where the articulated arm starts.
Projectors & Track systems
173
