45°
350°
-20°
50 mm
_EX
W
1,5
mm
Ø 55
Cct
2700-3000
Opt
Flood
M.Flood
Elec. On/Off
1/10V-DALI
Col.
WH
BB
_EX
W
4
mm
Ø 75
Cct
2700-3000-4000
Opt
Spot-M.Flood
W. Flood-Focus
Elec. On/Off
1/10V-DALI
Col.
WH
BB
_EX
W
12-18-(8 DW)
mm
Ø 138
Cct
2700-3000-4000-DW
Opt
Spot-Flood
W.Flood
Elec. On/Off-1/10V
DALI
Col.
WH
BB
85 Focus | 10° - 20°
_EX
W
25-35-(15-25 DW)
mm
Ø 173
Cct
2700-3000-4000-5000-DW
Opt
Spot-Flood
W.Flood
Elec. On/Off-1/10V
DALI
Col.
WH
BB

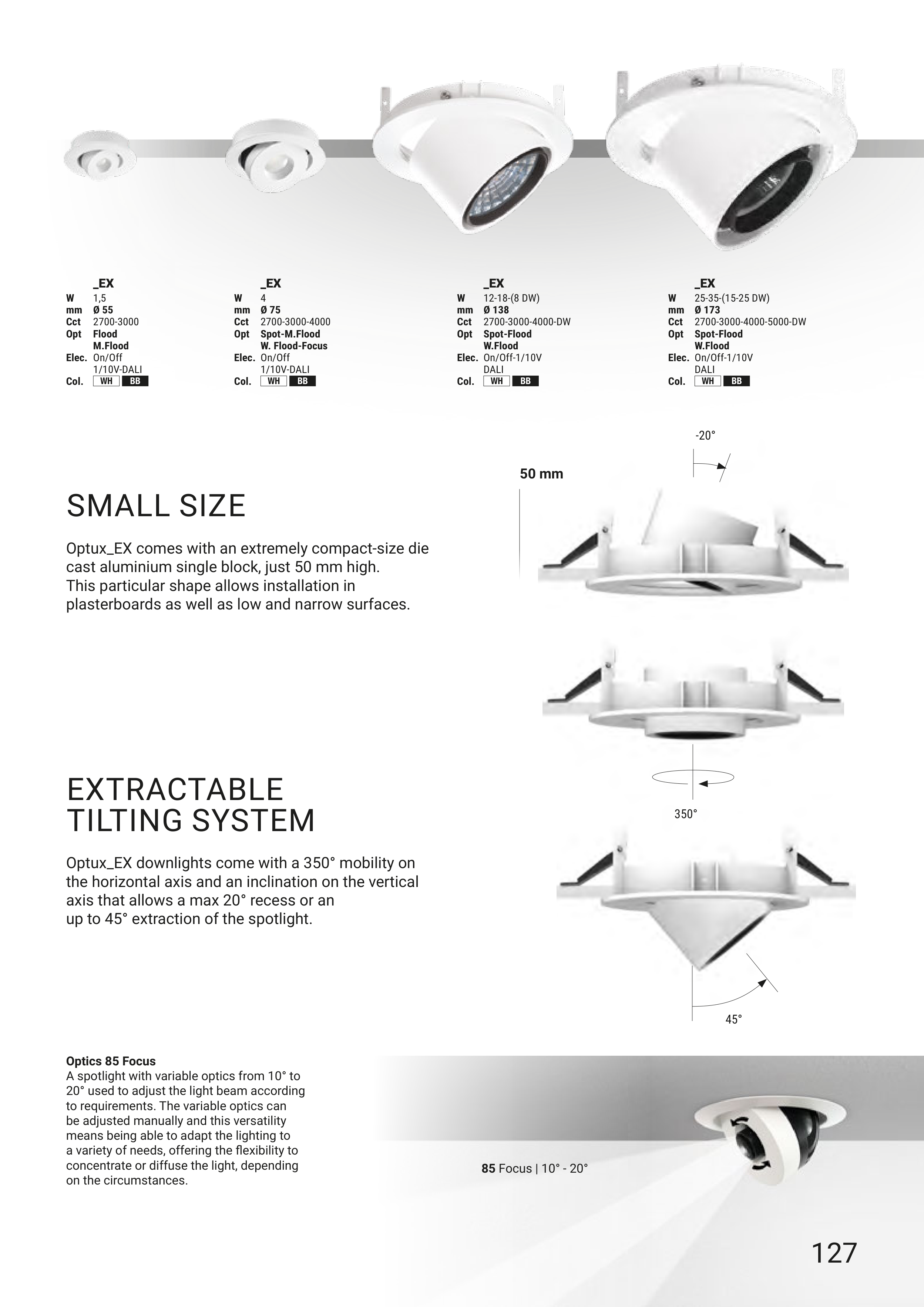

EXTRACTABLE
TILTING SYSTEM
Optux_EX downlights come with a 350° mobility on
the horizontal axis and an inclination on the vertical
axis that allows a max 20° recess or an
up to 45° extraction of the spotlight.
SMALL SIZE
Optux_EX comes with an extremely compact-size die
cast aluminium single block, just 50 mm high.
This particular shape allows installation in
plasterboards as well as low and narrow surfaces.
Optics 85 Focus
A spotlight with variable optics from 10° to
20° used to adjust the light beam according
to requirements. The variable optics can
be adjusted manually and this versatility
means being able to adapt the lighting to
a variety of needs, offering the flexibility to
concentrate or diffuse the light, depending
on the circumstances.
127
