IP--
IP68
IP--
IP--
IK--
M
M
F
P
T3
C.C.
C.V.
D.O.B.
1-10V
DALI
DALI2
DALI
PUSH
DMX
RDM
Casambi
Matter
RFDT
100
UGR
BUG
Rating
0
BUG Rating
ESD
OVP
EX
2,22
ID
EM

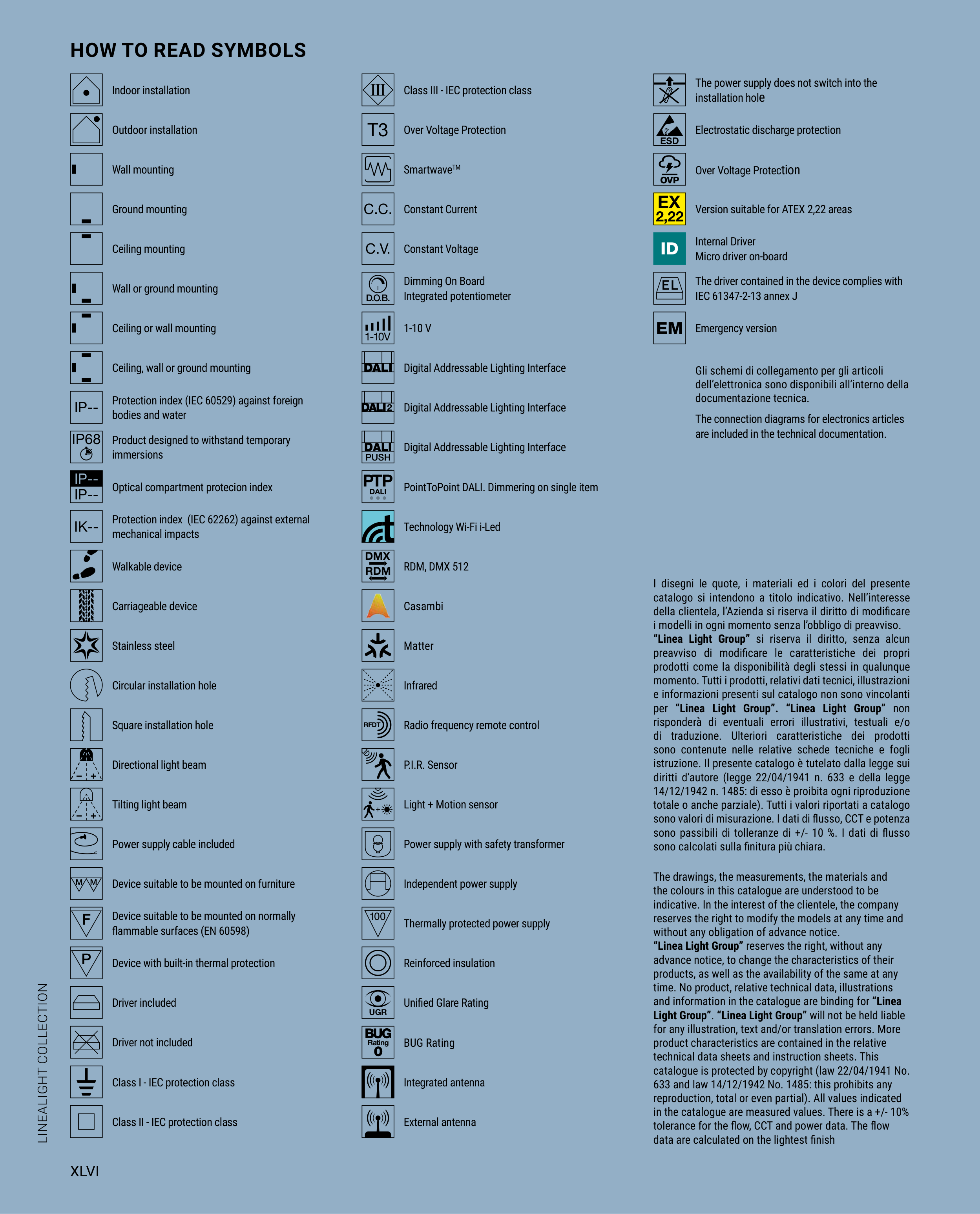

HOW TO READ SYMBOLS
Indoor installation
Outdoor installation
Wall mounting
Ground mounting
Ceiling mounting
Wall or ground mounting
Ceiling or wall mounting
Ceiling, wall or ground mounting
Protection index (IEC 60529) against foreign
bodies and water
Product designed to withstand temporary
immersions
Optical compartment protecion index
Protection index (IEC 62262) against external
mechanical impacts
Walkable device
Carriageable device
Stainless steel
Circular installation hole
Square installation hole
Directional light beam
Tilting light beam
Power supply cable included
Device suitable to be mounted on furniture
Device suitable to be mounted on normally
flammable surfaces (EN 60598)
Device with built-in thermal protection
Driver included
Driver not included
Class I - IEC protection class
Class II - IEC protection class
Class III - IEC protection class
Over Voltage Protection
SmartwaveTM
Constant Current
Constant Voltage
Dimming On Board
Integrated potentiometer
1-10 V
Digital Addressable Lighting Interface
Digital Addressable Lighting Interface
Digital Addressable Lighting Interface
PointToPoint DALI. Dimmering on single item
Technology Wi-Fi i-Led
RDM, DMX 512
Infrared
Radio frequency remote control
P.I.R. Sensor
Light + Motion sensor
Power supply with safety transformer
Independent power supply
Thermally protected power supply
Reinforced insulation
Unified Glare Rating
Integrated antenna
External antenna
The power supply does not switch into the
installation hole
Electrostatic discharge protection
Over Voltage Protection
Version suitable for ATEX 2,22 areas
Internal Driver
Micro driver on-board
The driver contained in the device complies with
IEC 61347-2-13 annex J
Emergency version
The connection diagrams for electronics articles
are included in the technical documentation.
The drawings, the measurements, the materials and
the colours in this catalogue are understood to be
indicative. In the interest of the clientele, the company
reserves the right to modify the models at any time and
without any obligation of advance notice.
“Linea Light Group” reserves the right, without any
advance notice, to change the characteristics of their
products, as well as the availability of the same at any
time. No product, relative technical data, illustrations
and information in the catalogue are binding for “Linea
Light Group”. “Linea Light Group” will not be held liable
for any illustration, text and/or translation errors. More
product characteristics are contained in the relative
technical data sheets and instruction sheets. This
catalogue is protected by copyright (law 22/04/1941 No.
633 and law 14/12/1942 No. 1485: this prohibits any
reproduction, total or even partial). All values indicated
in the catalogue are measured values. There is a +/- 10%
tolerance for the flow, CCT and power data. The flow
data are calculated on the lightest finish
Gli schemi di collegamento per gli articoli
dell’elettronica sono disponibili all’interno della
documentazione tecnica.
I disegni le quote, i materiali ed i colori del presente
catalogo si intendono a titolo indicativo. Nell’interesse
della clientela, l’Azienda si riserva il diritto di modificare
i modelli in ogni momento senza l’obbligo di preavviso.
“Linea Light Group” si riserva il diritto, senza alcun
preavviso di modificare le caratteristiche dei propri
prodotti come la disponibilità degli stessi in qualunque
momento. Tutti i prodotti, relativi dati tecnici, illustrazioni
e informazioni presenti sul catalogo non sono vincolanti
per “Linea Light Group”. “Linea Light Group” non
risponderà di eventuali errori illustrativi, testuali e/o
di traduzione. Ulteriori caratteristiche dei prodotti
sono contenute nelle relative schede tecniche e fogli
istruzione. Il presente catalogo è tutelato dalla legge sui
diritti d’autore (legge 22/04/1941 n. 633 e della legge
14/12/1942 n. 1485: di esso è proibita ogni riproduzione
totale o anche parziale). Tutti i valori riportati a catalogo
sono valori di misurazione. I dati di flusso, CCT e potenza
sono passibili di tolleranze di +/- 10 %. I dati di flusso
sono calcolati sulla finitura più chiara.
