N
N
L
L
L
N
L
Sw
PRI
SEC
Sw
Lin
Lout
Unswitch Switch
Test Switch
Test Switch
Emergency unit
Battery
LED indicator
Recessed installation
(Accessory included)
LED
Driver *
LED lamp
LED indicator
Battery
Emergency unit
Frequency
50-60 Hz
Nominal input current
40 mA (30 A inrush current with cold start)
Outout voltage (without load)
6-60V
TA Operating temperature
-25 +50 °C
Max casing temperature TC
70 °C
Control interface
Switch Line, Rest mode
Protections
Overtemperature, overload, overvoltage, short-circuit, open circus
Charge current
200 mA
Emergency output current
400-40 mA
Emergency power
2,4W
Emergency output current
20 h
Reference norms
IEC 61347-2-7:2011, IEC 61347-2-7:2011/AMD1:2017, IEC 61347-
1:2015, IEC 61347-1:2015/AMD1:2017, EN 61347-1:2015, EN
61347-2-7:2012+A1:2019, EN 55015:2013/A1:2015, EN61547:2009,
EN 61000-3-2: 2014
EN 61000-3-3: 2013
EM
C.C.
IP20

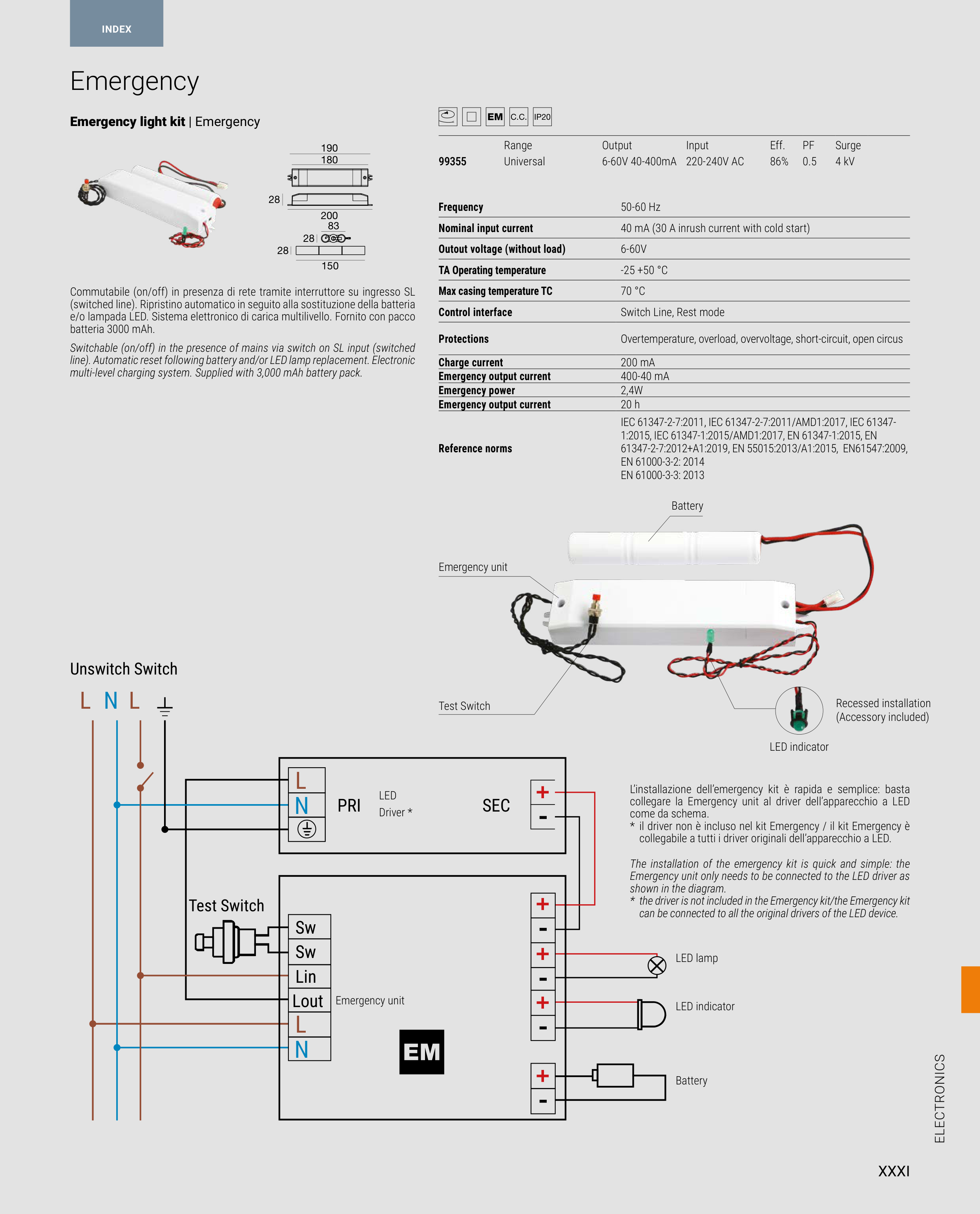

Emergency light kit | Emergency
190
200
150
83
28
28
28
180
Emergency
99355
Range
Output
Input
Eff.
PF
Surge
Universal
6-60V 40-400mA
220-240V AC
86%
0.5
4 kV
The installation of the emergency kit is quick and simple: the
Emergency unit only needs to be connected to the LED driver as
shown in the diagram.
* the driver is not included in the Emergency kit/the Emergency kit
can be connected to all the original drivers of the LED device.
Switchable (on/off) in the presence of mains via switch on SL input (switched
line). Automatic reset following battery and/or LED lamp replacement. Electronic
multi-level charging system. Supplied with 3,000 mAh battery pack.
L’installazione dell’emergency kit è rapida e semplice: basta
collegare la Emergency unit al driver dell’apparecchio a LED
come da schema.
* il driver non è incluso nel kit Emergency / il kit Emergency è
collegabile a tutti i driver originali dell’apparecchio a LED.
Commutabile (on/off) in presenza di rete tramite interruttore su ingresso SL
(switched line). Ripristino automatico in seguito alla sostituzione della batteria
e/o lampada LED. Sistema elettronico di carica multilivello. Fornito con pacco
batteria 3000 mAh.
