Finishes
Text white R9003
Made
in Italy
DMX
RDM
IP10
NEW

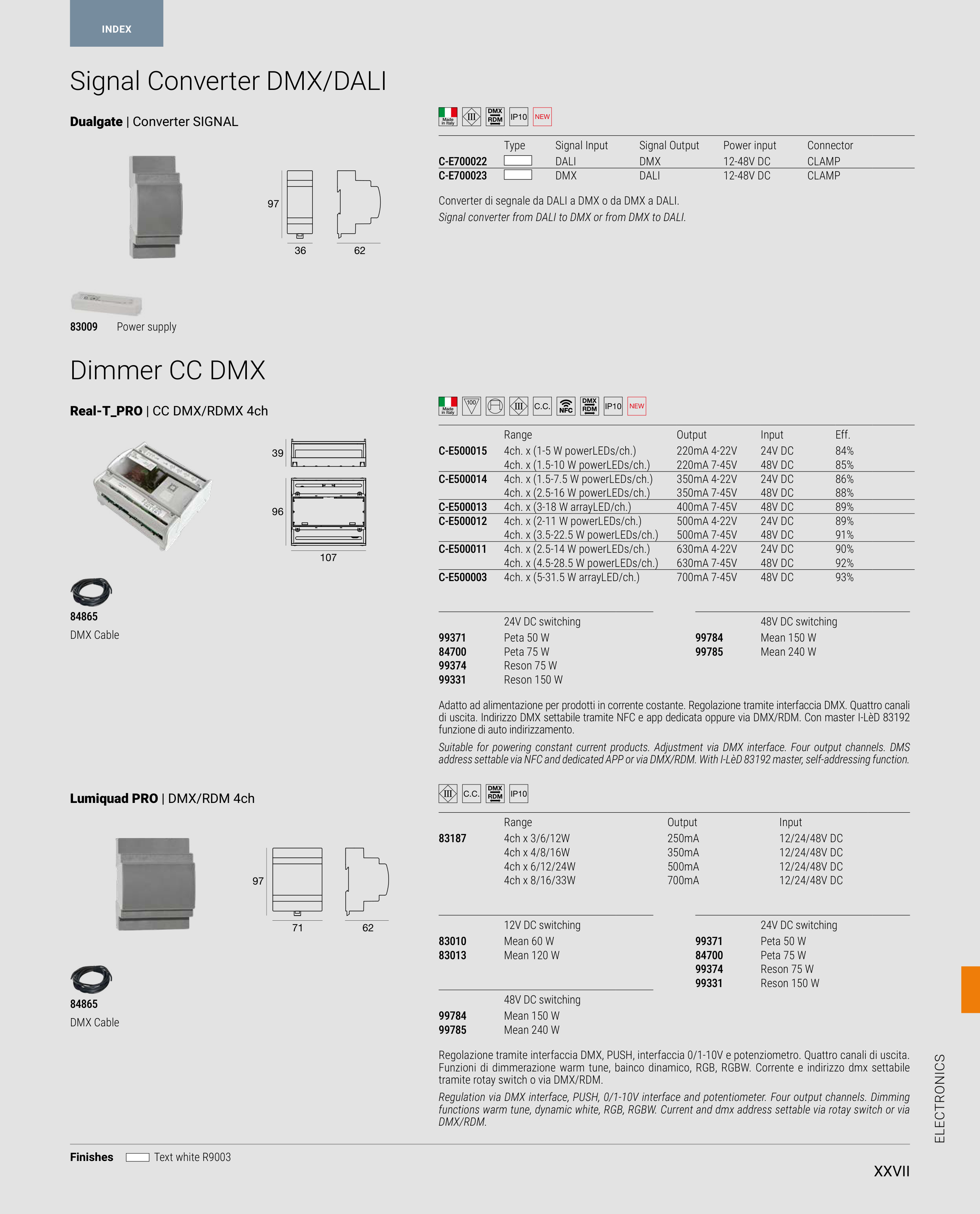

Dualgate | Converter SIGNAL
36
62
97
Signal Converter DMX/DALI
Dimmer CC DMX
83009
C.C.
DMX
RDM
IP10
Lumiquad PRO | DMX/RDM 4ch
71
62
97
Made
in Italy
100
C.C.
NFC
DMX
RDM
IP10
NEW
Real-T_PRO | CC DMX/RDMX 4ch
96
39
107
C-E700022
C-E700023
C-E500015
C-E500014
C-E500013
C-E500012
C-E500011
C-E500003
99371
84700
99374
99331
99784
99785
99371
84700
99374
99331
99784
99785
83010
83013
83187
84865
DMX Cable
84865
DMX Cable
Type
Signal Input
Signal Output
Power input
Connector
DALI
DMX
12-48V DC
CLAMP
DMX
DALI
12-48V DC
CLAMP
Range
Output
Input
4ch x 3/6/12W
250mA
12/24/48V DC
4ch x 4/8/16W
350mA
12/24/48V DC
4ch x 6/12/24W
500mA
12/24/48V DC
4ch x 8/16/33W
700mA
12/24/48V DC
24V DC switching
Peta 50 W
Peta 75 W
Reson 75 W
Reson 150 W
48V DC switching
Mean 150 W
Mean 240 W
12V DC switching
Mean 60 W
Mean 120 W
Range
Output
Input
Eff.
4ch. x (1-5 W powerLEDs/ch.)
220mA 4-22V
24V DC
84%
4ch. x (1.5-10 W powerLEDs/ch.)
220mA 7-45V
48V DC
85%
4ch. x (1.5-7.5 W powerLEDs/ch.)
350mA 4-22V
24V DC
86%
4ch. x (2.5-16 W powerLEDs/ch.)
350mA 7-45V
48V DC
88%
4ch. x (3-18 W arrayLED/ch.)
400mA 7-45V
48V DC
89%
4ch. x (2-11 W powerLEDs/ch.)
500mA 4-22V
24V DC
89%
4ch. x (3.5-22.5 W powerLEDs/ch.)
500mA 7-45V
48V DC
91%
4ch. x (2.5-14 W powerLEDs/ch.)
630mA 4-22V
24V DC
90%
4ch. x (4.5-28.5 W powerLEDs/ch.)
630mA 7-45V
48V DC
92%
4ch. x (5-31.5 W arrayLED/ch.)
700mA 7-45V
48V DC
93%
24V DC switching
Peta 50 W
Peta 75 W
Reson 75 W
Reson 150 W
48V DC switching
Mean 150 W
Mean 240 W
Power supply
Regulation via DMX interface, PUSH, 0/1-10V interface and potentiometer. Four output channels. Dimming
functions warm tune, dynamic white, RGB, RGBW. Current and dmx address settable via rotay switch or via
DMX/RDM.
Signal converter from DALI to DMX or from DMX to DALI.
Suitable for powering constant current products. Adjustment via DMX interface. Four output channels. DMS
address settable via NFC and dedicated APP or via DMX/RDM. With I-LèD 83192 master, self-addressing function.
Converter di segnale da DALI a DMX o da DMX a DALI.
Regolazione tramite interfaccia DMX, PUSH, interfaccia 0/1-10V e potenziometro. Quattro canali di uscita.
Funzioni di dimmerazione warm tune, bainco dinamico, RGB, RGBW. Corrente e indirizzo dmx settabile
tramite rotay switch o via DMX/RDM.
Adatto ad alimentazione per prodotti in corrente costante. Regolazione tramite interfaccia DMX. Quattro canali
di uscita. Indirizzo DMX settabile tramite NFC e app dedicata oppure via DMX/RDM. Con master I-LèD 83192
funzione di auto indirizzamento.
